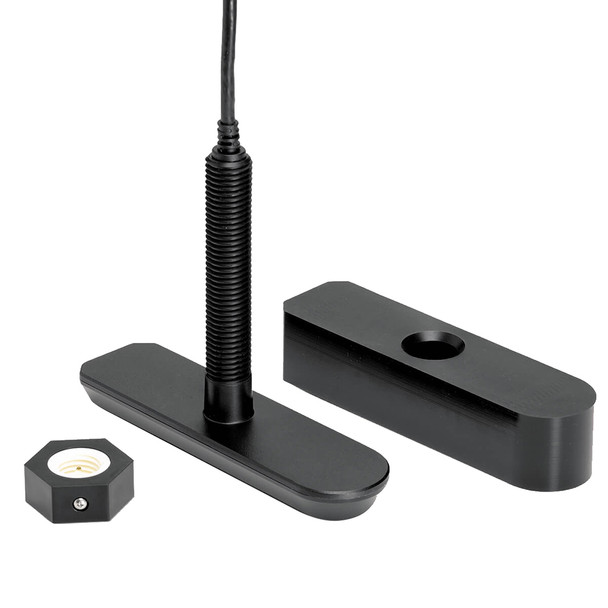

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer with MEGA Imaging+ and Dual Spectrum CHIRP

XPTH 14 HW MSI T Plastic Thru Hull Transducer

SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30 cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2


• MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)


• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)


• Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"


• 1-Year Limited Warranty

The Humminbird XPTH 14 HW MSI T is a high-performance plastic thru hull transducer designed for advanced marine sonar applications. Compatible with select Humminbird SOLIX series units, including SOLIX 10, 12, and 15 CHIRP MEGA SI+ GPS G2 models, this transducer delivers crystal-clear imaging with MEGA Side Imaging+ and MEGA Down Imaging+ capabilities. Its rugged composite construction ensures durability in harsh marine environments, while the built-in temperature sensor provides real-time water temperature data for enhanced fishing and navigation insights. The included 30-foot cable offers flexible installation options, making it suitable for a wide range of vessel sizes and configurations.

Features:

• Compatible with Humminbird SOLIX 10, 12, and 15 CHIRP MEGA SI+ GPS G2 models

• Supports MEGA Side Imaging+ frequencies up to 1150 kHz with a maximum side-to-side range of approximately 440-500 ft

• Supports MEGA Down Imaging+ frequencies up to 1150 kHz with a maximum depth of approximately 400 ft

• Dual Spectrum CHIRP technology with configurable frequency ranges: full (150-220 kHz), narrow (180-240 kHz), and wide (140-200 kHz)

• Dual Spectrum CHIRP supports depths up to approximately 1200 ft for detailed 2D sonar imaging

• Built-in temperature sensor for accurate water temperature readings

• Durable composite design built to withstand harsh marine conditions

• Includes a 30-foot cable for flexible installation and connection
