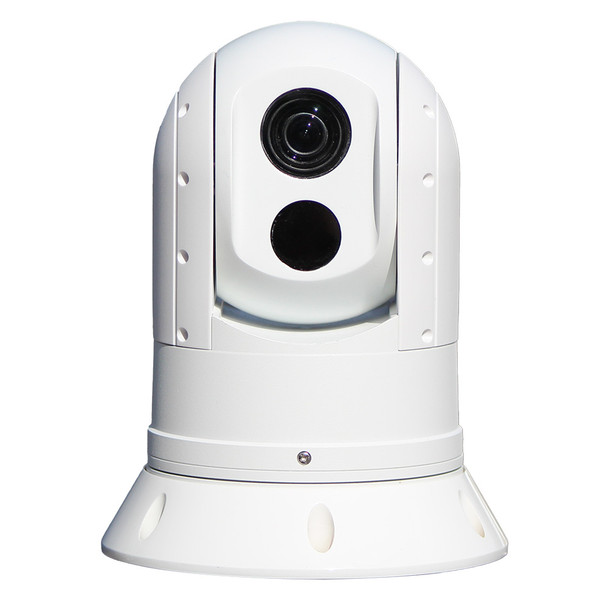

Iris Innovations A395 Dual Payload Thermal and Visible Spectrum IP PTZ Camera

A395 Dual Payload 640x512 Thermal + 1080P (10x Zoom) Visible Spectrum IP PTZ Camera

The IRIS-A395 Low-Cost Dual Payload Night Vision PTZ From Iris Innovations.

With an industry-leading 400300 thermal resolution, the cameras also feature a 2MP high-definition visible spectrum camera core with excellent low light performance, super sharp footage, and 10x optical zoom capabilities.

Available with side entry or base entry cable options, the cameras are built into a robust yet compact waterproof case, designed to protect the unit from the harshest environmental conditions.

Each sensor has its IP address meaning the cameras can be configured, controlled, and switched independently, and are compatible with many leading marine chart plotters via our range of CMAC camera management interfaces. An RS485 Serial Data connection is also provided to maximize control options so Atom cameras can be controlled using suitable joystick control devices and NVRs. With its rugged, compact footprint and extremely competitive pricing, our ATOM range of IP PTZ cameras is the perfect solution for vessels of all types and sizes and our industry-leading thermal imaging technology opens up a world of boating at night in safety. Standing only 8 high, ATOM cameras blend into the vessels aesthetic without standing out, and because they are so small they are the perfect camera solution for RIBs, center consoles, and sports fishing boats.

To maximize compatibility, the ATOM-A395 is both ONVIF compliant and as the camera is also NDAA compliant, can be used for government, military, and other security-sensitive applications.

Features:

• Dual Spectrum Cameras - Thermal Visible Spectrum


• Visible Spectrum Camera 2MP HD Resolution 10x Optical Zoom


• 640x512 (A395) thermal core resolution - 4x Digital Zoom


• Miniature - Lightweight Compact Form Factor


• Dimensions 206mm x 160mm / 2Kg Weight


• Available with single IP address or dual IP addresses


• Side mount or Rear mount Waterproof Cable Connector


• Push Lock Quick Connector - IP66


• 12m Pixel Pitch


• Features IP and RS485 Serial Data Control


• 750mA @ +12VDC Power / 8.4W


• IP66 Environmental Rating

Technical Specifications:

• Thermal Camera Resolution - 640x512


• Thermal Camera Lens - 19mm


• Pixel Pitch - 12m


• Refresh Rate - 25/30Hz


• Color Pallets - White Hot / Black Hot / Fulgurite / Iron Red / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint


• Image Enhancement - ICE Image Contrast Enhancement - 7 Levels


• Zoom - x4 Smooth Digital Zoom - Continuous


• Visible Spectrum Camera - 1/2.8 High-Performance Low Illumination SONY CMOS Sensor IMX327


• Resolution - 1920 x 1080 25/30 frames/sec


• Focal Length / Iris / Zoom - F = 4.7mm 94mm / F1.6 F3.5 / 20x Optical Zoom


• Compression - H.264 / H.265


• Bit Rate - 32Kbps 16Mbps


• Frame Rate - 1-25fps(50Hz) / 1-30fps(60Hz)


• Streams - Supports dual stream, main stream (1080P; 960P; 720P), Sub Stream (D1; VGA; CIF)


• Cellular/WiFi/GPS - Optional


• Protocols - Network Protocols: ONVIF Profile S / Others TBC Serial Data: RS485 / Pelco D


• Power Requirements - +12vDC / 750mA / 8.4W

The Iris Innovations A395 Dual Payload IP PTZ Camera combines advanced thermal imaging with high-definition visible spectrum capabilities, making it an ideal solution for maritime and security applications. Featuring a 640x512 thermal core resolution, this camera provides clear thermal imaging in complete darkness or adverse weather conditions. Its integrated 2MP HD visible spectrum camera with 10x optical zoom ensures sharp, detailed footage even in low-light environments, thanks to its high-performance Sony CMOS sensor and multiple color palette options. The rugged waterproof enclosure and compact form factor allow for versatile deployment on vessels of all sizes, including RIBs, center consoles, and sports fishing boats, without compromising aesthetic appeal or operational durability. Each sensor has its own IP address, enabling independent configuration, control, and switching, which enhances operational flexibility. Compatibility with ONVIF standards and NDAA compliance ensures the camera meets security and government standards, making it suitable for a broad range of security-sensitive environments. The inclusion of RS485 serial data control and multiple mounting options—side or rear cable entry—facilitates seamless integration with existing marine or security systems. The camera’s environmental rating of IP66 guarantees protection against dust and water ingress, ensuring reliable performance in harsh conditions. Its low profile and lightweight design, weighing just over 2 pounds, make installation straightforward and unobtrusive. Whether used for night surveillance or day monitoring, the Iris A395 offers industry-leading thermal imaging technology combined with high-resolution visible spectrum imaging, delivering enhanced safety, security, and situational awareness for maritime operators and security professionals alike.

Features:

• Dual Spectrum Cameras - Thermal and Visible Spectrum

• Visible Spectrum Camera with 2MP HD Resolution and 10x Optical Zoom

• 640x512 Thermal Core Resolution with 4x Digital Zoom

• Compact and Lightweight Waterproof Design

• Independent IP Address for Each Sensor for Flexible Control

• Available with Side or Rear Mount Waterproof Cable Connectors

• Push Lock Quick Connector with IP66 Environmental Rating

• Supports ONVIF Compliance and NDAA Standards

• Multiple Color Palettes and ICE Image Contrast Enhancement

• Power Consumption: 8.4W at +12VDC
