Iris Innovations CMAC-INT003A Interface Box for MFD Integration with IrisControl App for Garmin, Raymarine, Simrad, and Furuno

Interface Box for MFD Integration - IrisControl App for Garmin, Raymarine, Simrad Furuno

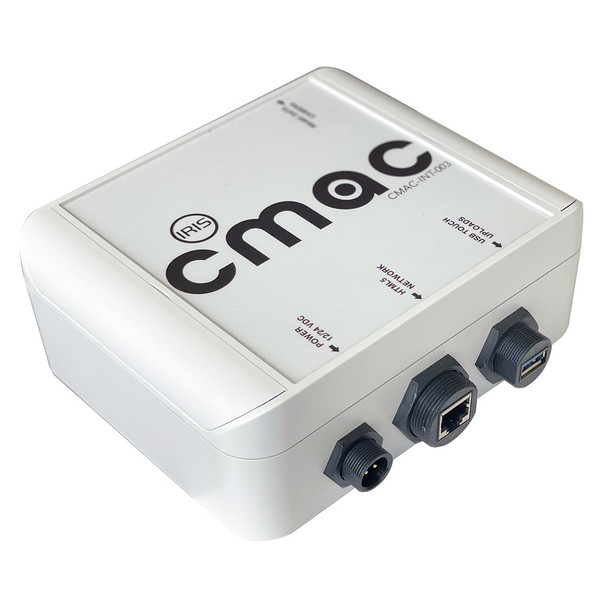

The CMAC-INT003 is a small and compact interface box that sits in line between your MFD and Camera to provide full control and converts the video to high-definition HDMI.

The perfect solution for smaller vessels such as center console boats, fishing boats, RIBs, vehicles, or any application where perhaps a single IP PTZ camera (such as our A418, A295, or A395 models) is installed, the CMAC-INT003 interface converts the cameras IP stream to high definition HDMI video whilst also hosting our IrisControl App for HTML5 platforms such as Garmins OneHelm, Raymarine LightHouse Apps, Simrad / B G Apps and Furuno TZT Apps. Plug your camera into the INT003, hook up to your MFDs network and HDMI input, and seamlessly control your camera from the MFD.

For chartplotters that support our IP cameras video stream directly, as well as hosting our IrisControl App, the CMAC-INT003 converts control data from the App to RS485 serial data to drive the camera.

For chartplotters that do not support the cameras video stream directly or do not feature HDMI video inputs, simply combine the CMACINT003 with our HDMI2IP encoder to view your device (compatible with Raymarine, Simrad, B G, and Furuno).

Features:

• Converts IP Video Stream to HDMI Video


• Hosts IrisControl App for Control via Chart Plotter


• Provides RS485 Serial Data to PTZ Cameras


• Designed to Interface IP Cameras with Chart Plotters such as Garmin, Raymarine, Simrad, B G, and Furuno


• Supported PTZ Cameras - Iris ATOM-A418, A295, A395, AX295, AX395, AX1280HD


• USB Touch - Compatible with Garmin 8xxx / 9xxx series MFDs


• Upload Unlimited Deck Plans to IrisControl App


• Drag and Drop Configuration


• Plug Play Installation


• Small Compact Form Factor

Technical Specifications:

• System Processor - Novatek NT98323


• Video Codec - H.264, H.264+, H.265


• Network Camera Capacity - Up to 32 Cameras via Camera Network RJ45 10/100 Connection


• Network Camera Resolution - Up to 4k Max


• Video Output - 1 x HDMI High Definition


• Serial Data Port - RS485 Serial Data / PTZ Control (Pelco D - Iris Variant)


• Power - +12VDC 24VDC / During Boot-up Peak at 1.5A, 400mA Nominal


• Operating Temperature - -10 - 55C (14 - 131F)

Chartplotter Compatibility:

• Garmin 7xxx: Requires HDMI to CVBS Converter (USB Touch not available)


• Garmin 8xxx 9xxx - All Features


• NVR Version Compatible with MFDs via HDMI/CVBS port and used in conjunction with IRIS595, IRIS599, or TE01 Control interface


• IrisControl for Garmin OneHelm, Raymarine LightHouse Apps, Furuno Apps, and Navico Apps


• NSO = HDMI


• NSS = Iris HDMI to IP Encoder or HDMI to CVBS Converter

The Iris Innovations CMAC-INT003A is a compact and versatile interface box designed to streamline integration between your marine multifunction displays (MFDs) and IP cameras. It acts as a crucial link, converting IP video streams from compatible PTZ cameras into high-definition HDMI signals suitable for display on your chartplotter. The device is ideal for smaller vessels such as center console boats, fishing boats, RIBs, and other applications where space efficiency and reliable control are essential. Simply connect your IP camera to the CMAC-INT003A, link it to your MFD network, and enjoy seamless control and high-quality video output. The unit also hosts the IrisControl App, which supports HTML5 platforms including Garmin OneHelm, Raymarine LightHouse, Simrad, and Furuno apps, allowing you to control and configure your cameras directly from your chartplotter or compatible device. For chartplotters capable of supporting IP camera video streams directly, the CMAC-INT003A provides an effective conversion to HDMI and transmits control data via RS485 serial interface, compatible with a variety of PTZ cameras such as Iris ATOM-A418, A295, and A395 models. When used with chartplotters lacking direct IP camera support or HDMI inputs, pairing the interface with an HDMI2IP encoder enables viewing your camera feeds on a wider range of displays. The device's small form factor ensures easy installation without clutter, making it a perfect addition to your vessel’s network. Its support for up to 32 cameras, 4K resolution, and advanced codecs like H.264, H.265, and H.264+ ensures high-quality video streaming at all times. The Iris CMAC-INT003A also features USB touch compatibility with Garmin 8xxx/9xxx series MFDs, drag-and-drop configuration, and plug-and-play setup for quick deployment. Designed to operate reliably in marine environments, it supports a wide temperature range and offers flexible power options. Whether you need to monitor your vessel remotely or integrate multiple cameras into your navigation system, the Iris CMAC-INT003A provides a comprehensive solution for modern marine video and control needs.

Features:

• Converts IP video streams to HDMI for seamless display

• Hosts IrisControl App for easy camera control via chartplotter

• Provides RS485 serial data output for PTZ camera control

• Compatible with Garmin, Raymarine, Simrad, B&G, and Furuno chartplotters

• Supports multiple PTZ cameras including Iris ATOM-A418, A295, and A395

• USB touch support for Garmin 8xxx/9xxx series MFDs

• Allows unlimited deck plan uploads to IrisControl App

• Drag-and-drop configuration for user-friendly setup

• Plug-and-play installation ensures quick deployment

• Compact design ideal for space-constrained vessels
