Description

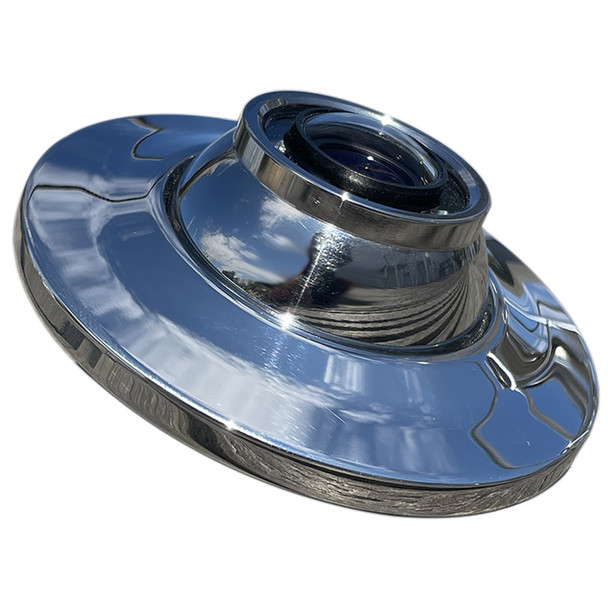

HD IP Flush Vertical Surface Mount - 3MP Max Resolution - 316L Marine Grade Stainless Steel - Recess Mount Dome
Iris Sx76 series camera is the first of its kind designed to be installed into a bulkhead or vertical surface. Its waterproof stainless steel case is machined from marine-grade 316L stainless steel, which means it will not corrode in harsh saltwater environments, making it a great option as a backup or docking camera for boats. By mounting the camera on the sides of your boat, it can even be used when mooring alongside jetties or pontoons.
During installation, the cameras inner ball can be adjusted and then locked into position by simply tightening the outer bezel to achieve the desired view.
For IP-based systems, the S476 features 3MP high-definition resolution and 12VDC or PoE power.
As well as marine applications, the camera's tough case, and small footprint make it a perfect visibility aid for recreational vehicles, fire and rescue trucks, and other applications where a robust and reliable high-definition camera is required.
The camera is certified to EN60945, EN55032, EN55035, and EN60529 (IP66) and is ONVIF compliant. For marine applications, the camera is directly compatible with Raymarine LH2 and above, Simrad, Lowrance, and B G. For Garmin systems, use them in conjunction with Iris CMAC systems.
Features:
- 1.8mm Standard (160-degree horizontal field of view)
- Corrosion-Proof 316L Marine Grade Stainless Steel
- 3MP Hi-Def IP Camera Format
- IP Version - max. 3MP Hi-Def resolution
- Super wide angle 160-degree lens
- IP version supports PoE and 12VDC - ultra-low power
- Built-in infrared LED illumination (10m range)
- EN60945, EN55032, EN55035, EN50529 (IP66) , FCC, CE
- Shock vibration proof
- Super rugged and easy to install
Applications:
- Perfect for extreme environments
- Workboats tug boats
- Fishing vessels
- Engine room monitoring
- Law enforcement military
- Wind farm vessels
- SUVs, RVs, work vehicles, and trucks
- Luxury vessels
- Passenger ferries cruise liners
Specifications:
- Lens (millimeter): 1.8mm
- Horizontal Field of View: 160-degree HFOV
- Sensor (inch): Sensor 1/4 CMOS Sensor
- Resolution: Variable - 3MP Max (2304 x 1296)
- Interface: RJ45 10/100 Base T Ethernet
- Video Processing: H.264 Codec / Dual Stream
- Protocols/Video Format: TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF
- Onvif: Profile S v21.06
- Bitrate: VBR / CBR 32kbps 8Mbps
- Illumination: 6 x 850nm Infra-Red - 10-meter range
- Lens/Field of View: 1.8mm Standard (160-degree HFOV)
- Mirroring: Horizontal Vertical - Configure via Browser
- Automatic Gain Control: Supported / multiple levels
- Compatibility: Raymarine / Axiom (LH2 or higher), Simrad / B G / Lowrance (Latest NOS / NEON OS) / PC-based systems, MFDs with digital (HDMI / DVI) Input, MFDs via IRIS NVR/HVR, IE Browser
- Operating Temperature: -30 + 60-degrees C
- Connections: Video: Water Resistant RJ45 Socket / Non-PoE with DC Power Socket
- Material: Marine Grade 316L Stainless Steel (highly polished as a standard)
- Power: +12VDC (+10 +15VDC Range) / 1W Nominal / 1.8W Max (LEDs ON)
- Power Over Ethernet (PoE): IEEE802.3af
- Weight Dimensions: 88mm x 22.25mm above and below the mounting surface
- Environmental: EN60529 / IP66
- EMC: EN55032:2015/A11:2020 EN55035:2017/A11:2020 EN60945:2002 Sections 9 10 / PoE with Compliant PoE Injector / FCC Part 15 A B
- RoHS: EN6300:2018
The Iris Innovations IRIS-S476 is a rugged, high-definition IP camera designed for demanding marine and outdoor environments. Crafted from corrosion-proof 316L stainless steel, this camera is ideal for installation into bulkheads or vertical surfaces on boats, yachts, and other vessels. Its waterproof construction ensures reliable operation in harsh saltwater conditions, making it a dependable choice for docking, mooring, or onboard surveillance. The compact design allows for easy installation in tight spaces, and the adjustable inner ball enables precise viewing angles, which can be securely locked into position by tightening the outer bezel.
Equipped with a 3MP CMOS sensor, the IRIS-S476 delivers sharp, high-definition video with a wide 160-degree horizontal field of view. Its built-in infrared LEDs provide clear night vision up to 10 meters, ensuring continuous surveillance regardless of lighting conditions. The camera supports Power over Ethernet (PoE) and 12VDC power, offering flexibility and low power consumption. Certified to IP66 and EN60945 standards, it withstands shock, vibration, and extreme temperatures from -30°C to +60°C, making it suitable for various applications such as workboats, fishing vessels, law enforcement, firefighting trucks, and recreational vehicles.
The IRIS-S476 supports multiple protocols including ONVIF Profile S v21.06, TCP/IP, RTSP, and HTTP, ensuring compatibility with a broad range of security systems and marine electronics such as Raymarine, Simrad, Lowrance, and Garmin. Its video processing features include H.264 codec with dual streaming, adjustable bitrates, and automatic gain control for optimal image quality. The camera’s robust construction, combined with easy-to-use features like horizontal and vertical mirroring and a simple locking mechanism, makes it a versatile and reliable solution for extreme environments. Whether used for vessel security, engine room monitoring, or vehicle surveillance, the IRIS-S476 provides high-resolution imaging in a durable, marine-grade package.
Features:
- 1.8mm standard lens with a 160-degree horizontal field of view
- Corrosion-proof 316L marine-grade stainless steel housing
- 3MP high-definition IP camera format with sharp imagery
- Supports PoE and 12VDC power for flexible installation
- Built-in infrared LEDs for up to 10 meters night vision
- Certified IP66 and EN60945 for harsh marine environments
- Shock and vibration resistant construction
- Compatible with Raymarine, Simrad, Lowrance, and Garmin systems
- Supports multiple protocols including ONVIF, RTSP, and HTTP
- Easy to install with adjustable inner ball and locking bezel
