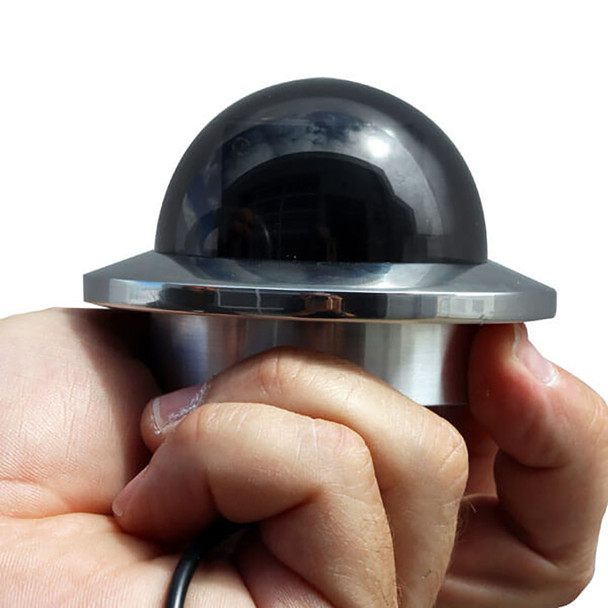

Iris Innovations IRIS4106 Marine PTZ Dome Camera with Stainless Bezel and 10x Optical Zoom

Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Def Ethernet IP - 10x Digital Zoom - 4 in 1 Video Format

The IRISx106 range of multi-format miniature, controllable cameras are the smallest marine PTZ cameras available on the market and provide fast, smooth variable speed control in a variety of formats to suit your requirements.

The IRIS106 features a high-resolution camera sensor that can be switched to output analog (CVBS), AHD, HD-TVI, and HD-CVI video formats depending on your requirement. In analog mode (default) the camera will connect directly to all MFDs that feature a composite video input to provide a crisp, clear video image. Set the camera to HD-TVI and connect via one of our Hybrid recorders or TVIHDMI encoders and you will achieve 1080P High Definition video in real-time compatible with MFDs that feature digital (HDMI / DVI) inputs.

The camera can be controlled by our IRIS595 joystick controller, TE01 rotary controller, or via an Iris HVR interface. Data communication to the camera is achieved via a two-wire RS485 serial data connection.

The camera housing is designed to be as small as possible, simplifying installation and fitting in discreetly with the boat's aesthetic, unlike other large, unsightly marine PTZ cameras. The body of the camera is made from lightweight but tough ABS plastic, and the dome is cast from smoke acrylic. The camera housing is finished off with a marine-grade stainless steel bezel available in high polish (standard). A surface mount bracket is also available for the camera (Part Number: BRK106), facilitating installation directly onto a bulkhead. This is often used when installing in engine rooms where it is not possible to recess mount the device.

Because of its small size and sleek design, the IRIS4106 can be used for deck, companionway, and tender monitoring, engine room monitoring, and as part of your onboard surveillance system. In summary, the 4106 is a very versatile, robust, and controllable marine PTZ camera.

Features:

• Marine Grade 316 Stainless Case


• The smallest PTZ dome available (86 mm)


• IP


• Huge compatibility


• Easy installation low power


• Stylish high-polished finish


• Fast, responsive pan, tilt, and zoom operation

Specifications:

• Lens (millimeter): F1.8 / F=4.9mm 49mm


• Image Sensor (inch): 1/4 Omnivision OV9712


• Image Processing: H.264 Video Codec, Dual Stream 1-30fps adjustable


• Effective Pixels: 921,600


• Resolution: 1080P/720P


• Min Illumination: 0.1 Lux (Colour) / 0.01 Lux (B/W)


• Illumination: NA


• IR Distance: 10m


• Day / Night: Auto / Day / Night


• S/N Ratio: >50dB


• Optical Zoom: 10x


• Digital Zoom: 10x


• Wide Dynamic Range: Supported


• BLC: Supported


• 3D DNR: Supported


• Mirroring: Horizontal Flip / Vertical Flip


• AGC: 0-32


• Pan Details: 360-degree Continuous Rotation / Speed 0.5300-degree sec


• Tilt Details: 0 90-degree / Speed 0.5300-degree sec


• Network: Ethernet RJ45 (10/100 Base-T)


• Protocol: TCP/UDP/HTTP/MULTICAST/UPnP/NTP/ RTSP/ONVIF-S 2.4


• Power over Ethernet: Supported


• P2P: Supported


• Smart Phone: Android / iOS


• Compatibility: PC-Based Systems. For the latest MFD compatibility please contact IRIS


• Max Users: 32 Users


• Power: +12VDC / PoE IEEE802.3aF


• Power Consumption: 1A Max


• Operating Temperature: -35-degrees C + 60-degrees C


• Dimensions (millimeter): Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm (For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm


• Ingress Protection: IP66


• Weight: 1.1Kg


• Material: 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing

The Iris Innovations IRIS4106 Miniature Marine PTZ Dome Camera offers advanced surveillance capabilities in a compact, marine-grade design. Crafted with a durable 316 stainless steel bezel and housed in lightweight ABS plastic, this camera combines robustness with sleek aesthetics suitable for vessel environments. Its small form factor, measuring just 3.4 inches in diameter, allows for easy installation in tight spaces such as decks, engine rooms, and companionways, providing versatile monitoring options without compromising maritime aesthetics. The smoke acrylic dome enhances discreet operation while safeguarding the camera lens from harsh marine conditions. Equipped with a high-resolution 1/4 inch Omnivision OV9712 sensor, the IRIS4106 delivers clear 1080p HD video with excellent low-light performance, thanks to its 0.1 Lux color minimum illumination and 10-meter IR range. The camera features a 10x optical zoom and 10x digital zoom, enabling precise targeting and detailed image capture at varying distances. Its fast, smooth pan, tilt, and zoom functions are controlled via a responsive RS485 interface, compatible with IRIS595 joystick controllers or TE01 rotary controllers, offering real-time, variable-speed operation for dynamic surveillance needs. The IRIS4106 supports multiple video formats including analog CVBS, AHD, HD-TVI, and HD-CVI, ensuring broad compatibility with existing marine monitoring systems. When configured to HD-TVI mode, the camera outputs 1080p high-definition video in real time, compatible with modern digital interfaces like HDMI and DVI, making it suitable for integration with hybrid recorders and onboard displays. Its IP66 ingress protection rating guarantees resistance to water, dust, and harsh marine environments, while the low power consumption (maximum 1A at 12VDC or PoE) facilitates energy-efficient operation. Network connectivity is versatile, supporting Ethernet RJ45, TCP/IP, UDP, RTSP, and ONVIF protocols, with P2P and smartphone access via Android or iOS devices. This allows remote monitoring and control, making it ideal for offshore vessels, boats, and marine facilities. The IRIS4106’s durable construction, flexible format support, and comprehensive control options provide a reliable, high-quality surveillance solution tailored to the demanding conditions of marine environments. Whether used for deck, engine room, or tender monitoring, this camera’s combination of size, strength, and functionality makes it a versatile asset for any maritime security system.

Features:

• Marine Grade 316 Stainless Steel Bezel for durability and corrosion resistance

• Compact size at just 3.4 inches in diameter for discreet installation

• Supports multiple video formats including CVBS, AHD, HD-TVI, HD-CVI for broad compatibility

• High-resolution 1080p HD imaging with 1/4 inch sensor

• 10x optical zoom and 10x digital zoom for detailed close-up views

• Fast and smooth pan, tilt, and zoom with variable speed control

• IR night vision with 10-meter range for low-light conditions

• IP66 weatherproof rating suitable for harsh marine environments

• Power over Ethernet (PoE) and 12VDC operation for flexible power options

• Remote access via Ethernet, smartphone apps, and multiple network protocols
