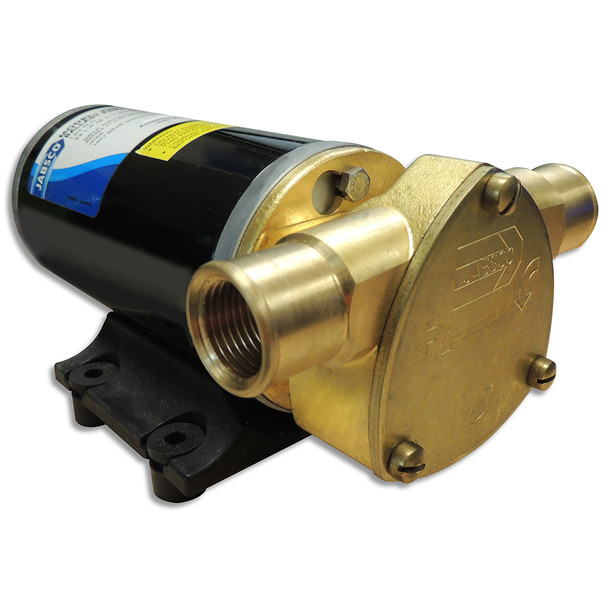

Jabsco Ballast King Bronze DC Pump without Switch - 15 GPM for Wakeboard and Ski Boats

Ballast King Bronze DC Pump without Switch - 15 GPM

Wakeboard and Ski Boat Ballast Pump

Features:

• Flow rate: 15 US gallons/min (57 Litres/min)


• Self-priming from dry up to 1.2m (4ft)


• Adds approx 125lbs (56kgs) of ballast per minute


• Reversible to both fill and empty tanks


• Simple design means fewer wearing parts.


• ISO 8846 MARINE (Ignition protection).

Applications:

The Ballast King is designed to pump water into Wakeboard Liquid Ballast Tanks and when reversed will also pump water out of them. It has a flow rate of 15 gallons per minute, so it can fill most ballast tanks in about five minutes. It is equipped with a Run-Dry Protection Device (patent pending) to automatically shut-off the pump and protect the impeller from run-dry damage should the pump be mistakenly left on after the Ballast Tank is empty.

Specifications:

• Body Materials: Bronze


• Impeller: Jabsco Neoprene compound


• Seal: Lip Type


• Port(s): 1/2" Internal Pipe Threads 1" External Hose Barb


• Voltage: 12 (Vdc)


• Amp Draw: 19 (amp)


• Fuse Size: 25 (amp)


• Motor Type: Equipped with Run-Dry Protection Device (Patent Pending) Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball Type Shaft Bearing Reversible


• Duty Cycle: 30 Minutes Max


• Dimensions: 3 5/8 x 8 x 4 3/4 (inches)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Ballast King Bronze DC Pump (Part Number 22610-9007) is a reliable and efficient solution designed specifically for wakeboard and ski boat ballast systems. Crafted with durable bronze body material, this pump offers a flow rate of 15 gallons per minute, enabling you to fill most ballast tanks in approximately five minutes. Its self-priming feature allows operation from dry conditions up to 4 feet, ensuring consistent performance even in challenging environments. The reversible design makes it easy to switch between filling and draining ballast tanks, providing versatility for your boat's ballast management. The pump is equipped with a patent-pending Run-Dry Protection Device, which automatically shuts off the unit to prevent impeller damage if the pump runs dry or is mistakenly left on when the tank is empty. This feature enhances durability and reduces maintenance needs, making it ideal for frequent use in marine settings. The Jabsco Ballast King is equipped with a neoprene impeller, a lip-type seal, and a stainless steel shaft with sealed bearings, ensuring long-lasting operation and resistance to corrosion. It features a single port with 1/2-inch internal pipe threads and a 1-inch external hose barb for flexible installation options. Designed for 12-volt DC power, it draws approximately 19 amps and requires a 25-amp fuse for safe operation. With a duty cycle of up to 30 minutes, this pump is well-suited for continuous use during ballast adjustments. Its compact dimensions allow for easy installation in tight spaces aboard your vessel. The pump bears the ISO 8846 MARINE certification for ignition protection, ensuring safe operation in marine environments. Whether you need to quickly fill or drain ballast tanks, the Jabsco Ballast King Bronze DC Pump offers dependable performance with minimal wear parts, making it an excellent choice for boat owners seeking a high-quality, long-lasting ballast pump.

Features:

• Flow rate: 15 US gallons per minute (57 liters per minute)

• Self-priming operation from dry up to 4 feet (1.2 meters)

• Reversible for filling and emptying ballast tanks

• Adds approximately 125 pounds (56 kilograms) of ballast per minute

• Simple design with fewer wearing parts for increased durability

• Equipped with ISO 8846 MARINE ignition protection for safe marine use

• Run-Dry Protection Device automatically shuts off the pump to prevent damage

• Corrosion-resistant bronze body and stainless steel shaft

• Sealed bearings and neoprene impeller for long-lasting performance

• Compact dimensions for easy installation in tight spaces
