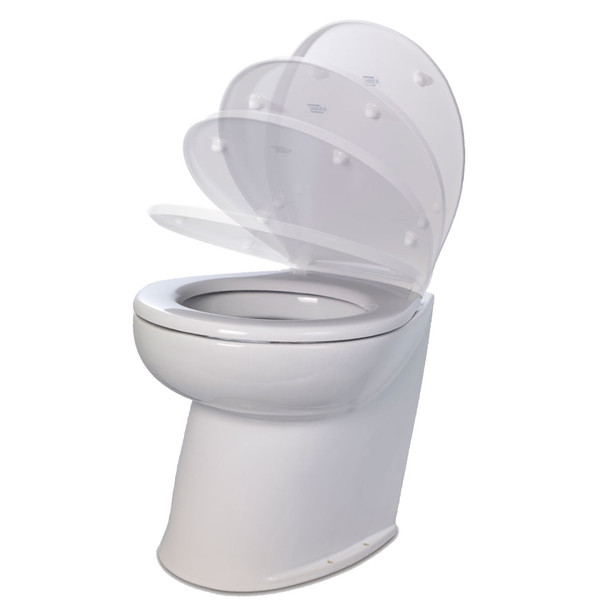

Jabsco Deluxe Flush 14-Inch Angled Back 12V Freshwater Electric Marine Toilet with Soft Close Lid

Deluxe Flush 14" Angled Back 12V Freshwater Electric Marine Toilet with Solenoid Valve Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Angled back


• Space-saving stylish design


• Household size soft closing seat


• Virtually silent operation


• Fresh water rinse model


• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic


• Lid: Soft close


• Rinse Type: Freshwater


• Rinse Pump/Solenoid Valve: Solenoid valve


• Voltage DC: 12V DC


• Recommended fuse Size (AMP): 25


• Flush control Switch: 4-Button Touch Panel


• Height: (inch) 14.4 / (mm) 366


• Width: (inch) 14.8 / (mm) 375


• Depth: (inch) 17.7" / (mm) 450


• Weight: (LBS) 59.5" / (kg) 27

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet location automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary


• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water


• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water


• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more


• The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system

Experience the comfort of a household toilet at sea with the Jabsco Deluxe Flush 14-inch Angled Back Marine Toilet. Designed for luxury and efficiency, this model features a sleek, space-saving profile that fits seamlessly into marine environments while minimizing water usage. Its virtually silent operation ensures discreet performance, making it ideal for those seeking both comfort and practicality aboard their vessel. The toilet’s large bowl size provides a familiar, domestic feel, complemented by a soft-close lid that enhances user experience and reduces noise. The freshwater rinse system, powered by a robust non-clogging large bore flush pump, ensures thorough cleaning and waste maceration, promoting hygiene and ease of maintenance. The integrated solenoid valve connects to pressurized water systems capable of delivering at least 2.9 gallons per minute, and dual non-return valves protect the freshwater supply from backflow. This model operates on 12V DC power and includes a user-friendly four-button touch panel, offering options such as fill, quick flush, full flush, and empty. The control pad’s adjustable settings allow users to choose between leaving the bowl dry or wet after flushing, optimizing water conservation or convenience as needed. The flush system is designed for minimal water consumption, with options that use less than a quart of water for light use and just 2.5 quarts for heavy use, making it an eco-friendly choice for marine applications. The soft-close lid adds a touch of household comfort, reducing noise and preventing accidental slamming. Easy installation and operation are supported by comprehensive instructions available online, ensuring that maintenance and setup are straightforward. Whether for a yacht, sailboat, or other marine vessel, the Jabsco Deluxe Flush marine toilet combines luxury, efficiency, and durability to meet the demands of discerning boat owners seeking a premium sanitation solution.

Features:

• 14-inch angled back design for space-efficient installation

• Stylish, space-saving form factor suitable for marine environments

• Household size soft-close seat for enhanced comfort and quiet operation

• Virtually silent operation minimizes noise during use

• Fresh water rinse model for effective cleaning and waste management

• Powerful, non-clogging large bore flush pump with macerator for waste processing

• Operates on 12V DC with recommended 25-amp fuse for reliable performance

• Multi-function four-button touch control panel for easy operation

• Adjustable bowl moisture setting for water conservation or convenience

• Includes solenoid valve compatible with pressurized water systems of 2.9 GPM or more

• Dual non-return valves protect freshwater supply from backflow

• Easy to install with comprehensive online owner’s manual available
