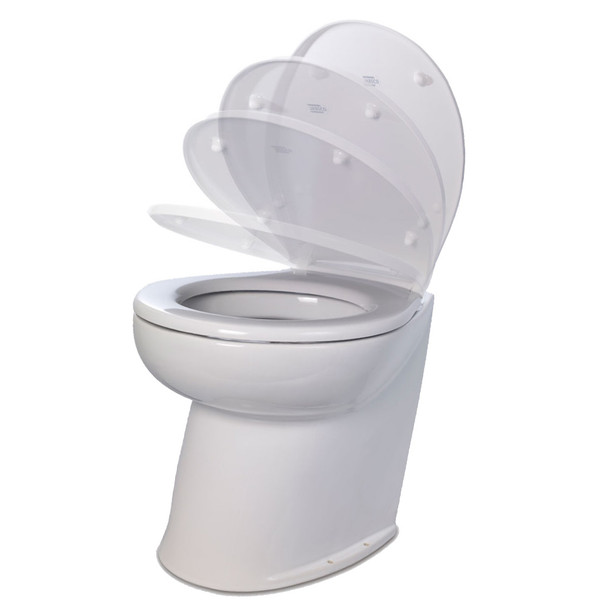

Jabsco Deluxe Flush 14-Inch Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump and Soft Close Lid

Deluxe Flush 14" Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Angled back


• Space-saving stylish design


• Household size soft closing seat


• Virtually silent operation


• Sea, river, or lake water rinse model


• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic


• Lid: Soft close


• Rinse Type: Raw water


• Rinse Pump/Solenoid Valve: Remote Rinse Pump


• Voltage DC: 12V DC


• Recommended fuse Size (AMP): 25


• Flush control Switch: 4-Button Touch Panel


• Height: (inch) 14.4 / (mm) 366


• Width: (inch) 14.8 / (mm) 375


• Depth: (inch) 17.7" / (mm) 450


• Weight: (LBS) 57.3" / (kg) 26

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowl always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary


• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water


• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water


• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water


• Complete with a Jabsco Pumpgard strainer

The Jabsco Deluxe Flush Marine Toilet offers a luxurious and space-efficient solution for marine sanitation, combining advanced features with a sleek design. Engineered for boat owners who prioritize comfort and functionality, this 14-inch angled back model operates quietly and uses minimal water while providing a reliable household-sized soft-close seat. Its contemporary style seamlessly integrates into various marine interiors, ensuring both aesthetic appeal and practicality. The toilet's raw water rinse mechanism allows for versatile water source options, whether from sea, river, or lake, and is equipped with a powerful, non-clogging large bore flush pump that macerates waste effectively. This ensures smooth operation even under demanding conditions, reducing maintenance needs and improving overall hygiene. The unit is designed for 12V DC power, with a recommended 25-amp fuse, making it compatible with standard marine electrical systems. The integrated four-button touch control panel simplifies operation, allowing users to choose between fill, quick flush, full flush, or empty modes, with customizable settings to optimize water consumption. The control panel also enables toggling between bowl left dry or wet after flushing, helping conserve water or prepare the bowl for the next user as desired. The remote-mounted rinse pump, supplied with a self-priming feature and a strainer, ensures effective rinsing using water from the vessel’s water system. Its compact dimensions and lightweight design make installation straightforward without sacrificing performance. Overall, the Jabsco Deluxe Flush model provides an efficient, silent, and comfortable marine toilet solution, ideal for vessels where space, hygiene, and user convenience are paramount.

Features:

• 14-inch angled back design for space-saving installation

• Stylish and contemporary appearance to enhance marine interiors

• Household-size soft-close seat for comfort and quiet operation

• Virtually silent operation minimizes noise disturbance

• Raw water rinse system compatible with sea, river, or lake water

• Large bore flush pump macerates waste to prevent clogging
