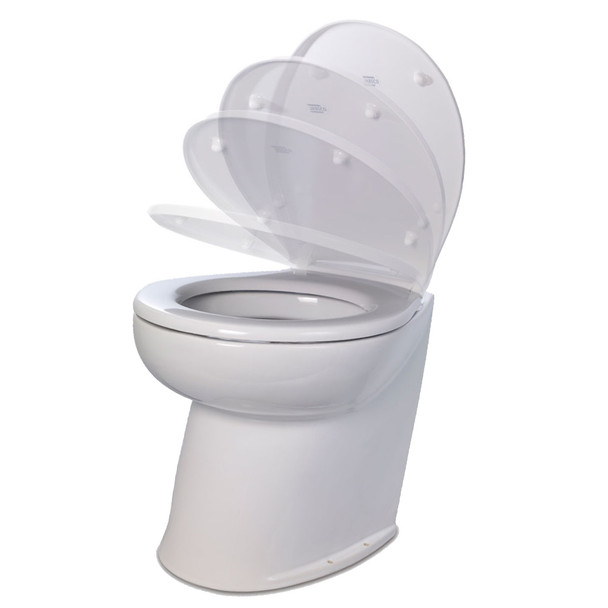

Jabsco Deluxe Flush 14-Inch Angled Back 24V Freshwater Electric Marine Toilet with Soft Close Lid and Solenoid Valve

Deluxe Flush 14" Angled Back 24V Freshwater Electric Marine Toilet with Solenoid Valve Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Angled back


• Space-saving stylish design


• Household size soft closing seat


• Virtually silent operation


• Fresh water rinse model


• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic


• Lid: Soft close


• Rinse Type: Freshwater


• Rinse Pump/Solenoid Valve: Solenoid valve


• Voltage DC: 24V DC


• Recommended fuse Size (AMP): 15


• Flush control Switch: 4-Button Touch Panel


• Height: (inch) 14.4 / (mm) 366


• Width: (inch) 14.8 / (mm) 375


• Depth: (inch) 17.7" / (mm) 450


• Weight: (LBS) 59.5" / (kg) 27

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary


• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water


• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water


• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more


• The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system

Experience the comfort of home at sea with the Jabsco Deluxe Flush 14-inch Angled Back 24V freshwater electric marine toilet. Designed for the discerning boat owner, this model combines a space-saving, stylish profile with minimal water consumption and whisper-quiet operation. Its sleek angled back design comfortably fits in tight spaces while maintaining a modern aesthetic, making it an ideal choice for luxury vessels seeking both functionality and style. The household-sized soft-close seat adds a touch of comfort and safety, preventing slamming and ensuring a quiet, refined experience aboard.
The toilet features a powerful non-clogging large bore flush pump that macerates waste efficiently, ensuring the system remains reliable and easy to maintain. The freshwater rinse model ensures hygiene and freshness with environmentally friendly water use, while the integrated solenoid valve connects seamlessly to existing pressurized water systems capable of delivering at least 2.9 GPM. The dual non-return valves within the solenoid assembly safeguard the freshwater supply from potential black flow issues, offering peace of mind for boat owners.
Included with each unit is a versatile one-touch control pad with four functions: fill, quick flush, flush, and empty. This control allows for customizable operation, including settings that keep the bowl either dry or wet after flushing to optimize water usage. The quick flush mode rinses and empties the bowl with less than 1 quart of water for light use, while the full flush uses only about 2.5 quarts for more thorough cleaning. The empty function allows for waste removal without additional water, utilizing an anti-odor water lock to prevent odors from escaping. Users can easily switch between dry and wet modes by holding down specific buttons, providing flexible operation tailored to individual preferences.
Constructed for durability and ease of installation, the Jabsco Deluxe Flush toilet measures approximately 14.4 inches high, 14.8 inches wide, and 17.7 inches deep, with a weight of around 59.5 pounds. The unit comes with a comprehensive owner's manual, ensuring straightforward setup and maintenance. Its elegant design, combined with advanced functionality and quiet operation, makes it an excellent upgrade for any marine environment seeking to combine luxury with practical performance.

Features:

• 14-inch angled back design for space-efficient installation

• Stylish, space-saving profile with modern aesthetics

• Household-sized soft-close seat for comfort and safety

• Virtually silent operation enhances onboard comfort

• Freshwater rinse system for hygiene and freshness

• Powerful, non-clogging flush pump with macerator function

• Integrated solenoid valve for reliable water connection

• Multi-function one-touch control pad for easy operation

• Settings for dry or wet bowl after flushing to optimize water use

• Dual non-return valves protect freshwater supply from black flow
