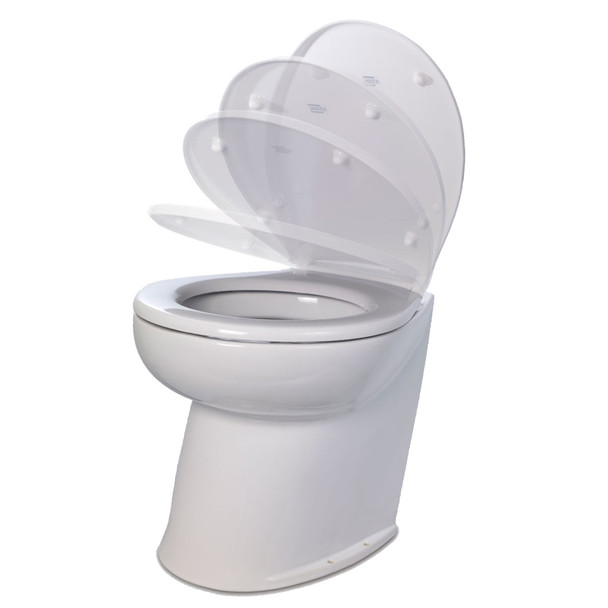

Jabsco Deluxe Flush 14-Inch Angled Back 24V Raw Water Electric Marine Toilet with Remote Rinse Pump and Soft Close Lid

Deluxe Flush 14" Angled Back 24V Raw Water Electric Marine Toilet with Remote Rinse Pump Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Angled back


• Space-saving stylish design


• Household size soft closing seat


• Virtually silent operation


• Sea, river, or lake water rinse model


• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic


• Lid: Soft close


• Rinse Type: Raw water


• Rinse Pump/Solenoid Valve: Remote Rinse Pump


• Voltage DC: 24V DC


• Recommended fuse Size (AMP): 15


• Flush control Switch: 4-Button Touch Panel


• Height: (inch) 14.4 / (mm) 366


• Width: (inch) 14.8 / (mm) 375


• Depth: (inch) 17.7" / (mm) 450


• Weight: (LBS) 57.3" / (kg) 26

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowl always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary


• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water


• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water


• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water


• Complete with a Jabsco Pumpgard strainer

Experience the comfort of a home bathroom at sea with the Jabsco Deluxe Flush electric marine toilet. Designed for discerning boat owners, this unit offers a sleek, space-saving profile combined with minimal water consumption and near-silent operation. The 14-inch angled back design ensures easy installation in tight spaces while maintaining a stylish appearance that complements any marine interior. The household-sized soft-close lid provides a quiet, gentle closing experience, enhancing user comfort and reducing noise aboard your vessel.

This marine toilet features a powerful non-clogging large bore flush pump that macerates waste efficiently, ensuring reliable performance even in demanding conditions. The raw water rinse system draws from sea, river, or lake water, making it suitable for various aquatic environments. The remote-mounted, self-priming rinse pump includes a Jabsco Pumpgard strainer for added durability and ease of maintenance. The unit operates on 24V DC power, with a recommended 15-amp fuse, making it compatible with most marine electrical systems.

Control of the toilet is simplified with a four-button touch panel, allowing users to select fill, quick flush, full flush, or empty modes. The control panel also offers adjustable settings to keep the bowl either dry or wet after flushing, which can be customized by holding specific buttons for a few seconds. This flexibility helps optimize water usage, with the dry setting consuming less than 1 quart of water per flush, and the wet setting automatically refilling the bowl after each use. The entire system is designed for ease of operation and maintenance, providing a luxurious, hassle-free experience at sea.

The Jabsco Deluxe Flush marine toilet is supplied with comprehensive documentation and a user-friendly manual available online. Its compact dimensions and lightweight design make it suitable for installation in a variety of boat layouts. Whether you're outfitting a yacht, sailboat, or fishing vessel, this electric toilet combines performance, efficiency, and comfort for a superior marine sanitation experience.

Features:

• 14-inch angled back design for easy installation in tight spaces

• Space-saving and stylish profile enhances marine interior aesthetics

• Household-sized soft-close lid for quiet operation

• Virtually silent operation for a peaceful onboard environment

• Raw water rinse system suitable for sea, river, or lake water

• Powerful non-clogging large bore flush pump for reliable waste maceration

• Multi-function four-button touch control panel for easy operation

• Adjustable bowl wet/dry settings to optimize water usage

• Remote-mounted self-priming rinse pump with Pumpgard strainer for durability

• Operates on 24V DC power with recommended 15-amp fuse
