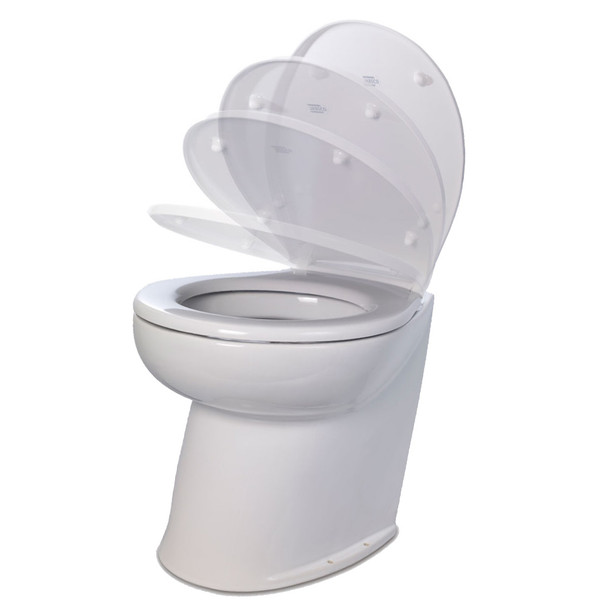

Jabsco Deluxe Flush 17-Inch Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump and Soft Close Lid

Deluxe Flush 17" Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 17" Angled back


• Space-saving stylish design


• Household size soft closing seat


• Virtually silent operation


• Sea, river, or lake water rinse model


• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic


• Lid: Soft close


• Rinse Type: Raw water


• Rinse Pump/Solenoid Valve: Remote Rinse Pump


• Voltage DC: 12V DC


• Recommended fuse Size (AMP): 25


• Flush control Switch: 4-Button Touch Panel


• Height: (inch) 17.5 / (mm) 445


• Width: (inch) 14.8 / (mm) 375


• Depth: (inch) 17.7" / (mm) 450


• Weight: (LBS) 66.1" / (kg) 30

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowl always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary


• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water


• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water


• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water


• Complete with a Jabsco Pumpgard strainer

Experience the comfort of home at sea with the Jabsco Deluxe Flush marine toilet, designed for those seeking luxury and efficiency on their vessel. This model features a 17-inch angled back for a sleek, space-saving profile that fits seamlessly into marine environments. Its stylish design combines minimal water consumption with quiet operation, making it ideal for both recreational and long-term use. The household-sized soft-close lid ensures a premium user experience, reducing noise and preventing sudden closures that could cause spills or damage.

The toilet operates on 12V DC power and includes a remote-mounted, self-priming rinse pump capable of drawing water from sea, river, or lake sources. The powerful, large-bore flush pump is engineered to macerate waste effectively, preventing clogs and ensuring reliable operation even in demanding conditions. It features a compact footprint with a height of approximately 17.5 inches, width of 14.8 inches, and depth of 17.7 inches, making it suitable for various installation spaces.

Control of the toilet is simplified with a four-button touch panel that allows users to choose between fill, quick flush, full flush, and empty functions. The control panel can be customized to leave the bowl either dry or wet after flushing, helping to conserve water or prepare the bowl for the next use. The quick flush option rinses and empties the bowl with less than 1 quart of water, while the full flush uses just 2.5 quarts, making it highly efficient. The empty function provides a waterless flush, maintaining an anti-odor water lock to prevent unpleasant odors from escaping.

Additional features include a self-priming rinse pump with a strainer, ensuring clean water intake from external sources. The soft-close lid enhances user comfort and safety, while the overall design prioritizes space efficiency and ease of maintenance. This marine toilet is suitable for use in various water conditions, including sea, river, and lake environments, making it a versatile choice for boat owners who value reliability and comfort. For detailed installation and operation instructions, the owner’s manual is available online.

Features:

• 17-inch angled back design for space efficiency

• Stylish, space-saving profile ideal for marine applications

• Household-sized soft-close lid for quiet operation

• Virtually silent operation for comfort

• Sea, river, or lake water rinse capability

• Powerful, non-clogging large bore flush pump

• Remote rinse pump included for external water sourcing

• Four-button touch control panel for versatile operation

• Water-efficient flush options with customizable bowl wet/dry settings

• Anti-odor water lock to prevent odors when the bowl is empty
