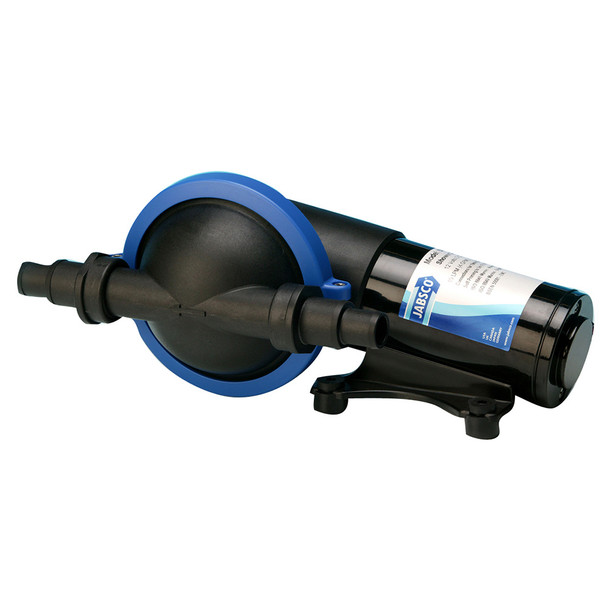

Jabsco Filterless Bilge, Sink, and Shower Drain Pump - 4.2 GPM, 24V DC

Filterless Bilge/Sink/Shower Drain Pump - 4.2 GPM - 24V

Self-priming diaphragm pump 24V DC.

Features:

• Connections:- for 19mm () bore hose.


• Dimensions:- 294 mm long, 159mm wide, 132mm high


• Fuse Size:- 5(amp)


• Maximum Current:- 2.5(amps)


• Output - up to 16 litres/minute (3.5 gallons/minute). Maximum recommended total head 6m


• Robust, quiet single diaphragm design


• No strainer required


• Single diaphragm design allows extended dry running


• Self-primes up to 3m (9.5ft) vertical lift


• Multi-positional ports for easy mounting


• Rated for up to 30 minutes of continuous running


• Actual Weight: 2.98 Kg (Approx. 3.48 Kg packed)

WARNING: This product can expose you to chemicals including FORMALDEHYDE (GAS) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Filterless Bilge, Sink, and Shower Drain Pump (Part Number 50880-1100) is a reliable, compact solution designed for marine and RV applications. This self-priming diaphragm pump operates efficiently on 24V DC power, providing a flow rate of up to 4.2 gallons per minute, making it ideal for various water management needs on boats, RVs, and other mobile units. Its robust, quiet single diaphragm design ensures long-lasting performance with minimal noise, while the absence of a strainer simplifies maintenance and reduces potential clog points. The pump's multi-positional ports facilitate flexible installation options, allowing for easy mounting in tight or unconventional spaces. Equipped with a self-priming feature capable of lifting water vertically up to 3 meters, this pump can handle dry running conditions for extended periods, up to 30 minutes, without damage. Its compact dimensions—roughly 11.6 inches long, 6.25 inches wide, and 5.2 inches high—make it suitable for confined spaces, and its lightweight design ensures ease of handling during installation or maintenance.

Features:

• Connections: Suitable for 19mm (3/4 inch) bore hose for versatile plumbing compatibility

• Dimensions: Compact size with approximately 11.6 inches length, 6.25 inches width, and 5.2 inches height

• Fuse Size: 5 Amp for safe operation

• Maximum Current: 2.5 Amps to ensure efficient power usage

• Output: Up to 16 liters per minute (4.2 gallons per minute) with a maximum recommended head of 20 feet (6 meters)

• Robust, quiet single diaphragm design for durability and minimal noise

• No strainer required, simplifying maintenance and reducing clog risk

• Single diaphragm allows for extended dry running without damage

• Self-priming capability up to 3 meters (9.8 feet) vertical lift

• Multi-positional ports for flexible mounting options

• Rated for continuous operation up to 30 minutes, suitable for various pumping tasks
