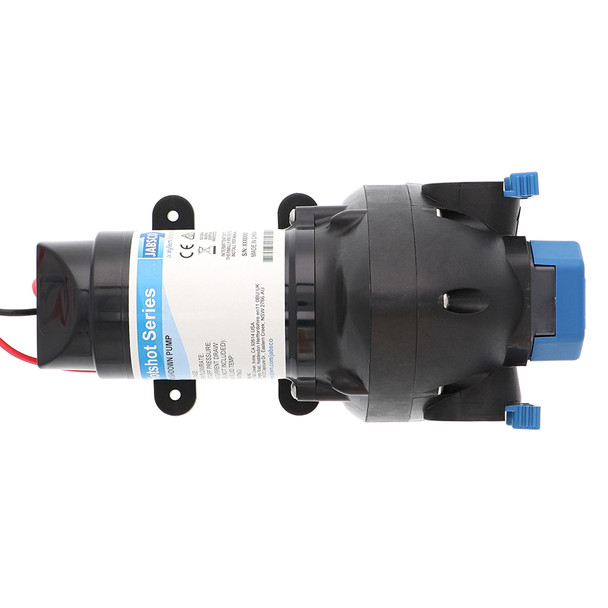

Jabsco HotShot 3 Washdown Pump 12V - 3 GPM, 50 PSI for Reliable High-Flow Cleaning

HotShot 3 Washdown Pump - 12V - 3 GPM - 50 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.1m min)


• Certifications: CE, ISO8846, RCM


• Ingress protection: IPX6

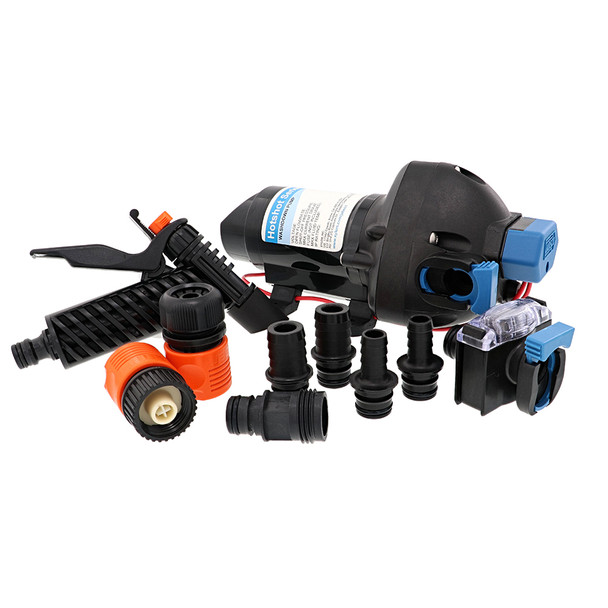

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.


• Inline 40 mesh Quick Connect strainer


• Trigger nozzle Quick Connect hose adapters


• No kit versions with hose offered

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot 3 Washdown Pump is a robust and reliable solution designed for efficient deck cleaning and washdown applications. Powered by a durable 12V motor, this pump delivers up to 3 gallons per minute at 50 PSI, ensuring strong water flow for demanding cleaning tasks. Its high-performance diaphragm technology provides long-lasting durability, making it suitable for both commercial and recreational use.

Constructed with a glass fiber reinforced polypropylene pump head and co-molded TPV diaphragms, the HotShot 3 offers excellent resistance to wear and chemical exposure. The pump's integrated, sealed pressure switch allows for on-demand operation, contributing to efficient water use and quiet operation. Its self-priming capability allows for flexible installation options, and the pump can run dry without damage, providing added safety and convenience. The inclusion of quick connect ports simplifies installation, servicing, and maintenance, making this pump user-friendly for both professionals and DIY enthusiasts.

High-duty models feature a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing to enhance pressure capacity and extend service life. Standard models are equipped with a corrosion-protected plastic housing, offering an economical yet reliable performance. Vibration dampening mounting feet help reduce noise and vibration during operation, ensuring a smoother experience. Full kit options, including a 25-foot hose coil, are available for comprehensive washdown setups. Certified under CE, ISO8846, and RCM standards and rated IPX6 for ingress protection, the Jabsco HotShot 3 is engineered for dependable performance in various environments, including marine and industrial settings.

Fittings and accessories such as quick connect hosebarb and GHT fittings, inline strainers, and trigger nozzles are available for easy customization. Whether for routine cleaning or heavy-duty washdowns, this pump offers an effective and durable solution that combines performance, ease of use, and long-term reliability.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings in HD models for enhanced pressure and longevity

• Efficient and quiet operation for user comfort

• Integrated sealed pressure switch for on-demand activation

• Self-priming capability allows flexible installation options

• Can operate dry without damage for added safety

• Quick connect ports for easy installation, servicing, and maintenance

• Vibration dampening mounting feet to reduce noise and vibration

• Available full kit with 25-foot hose coil for comprehensive washdown setup
