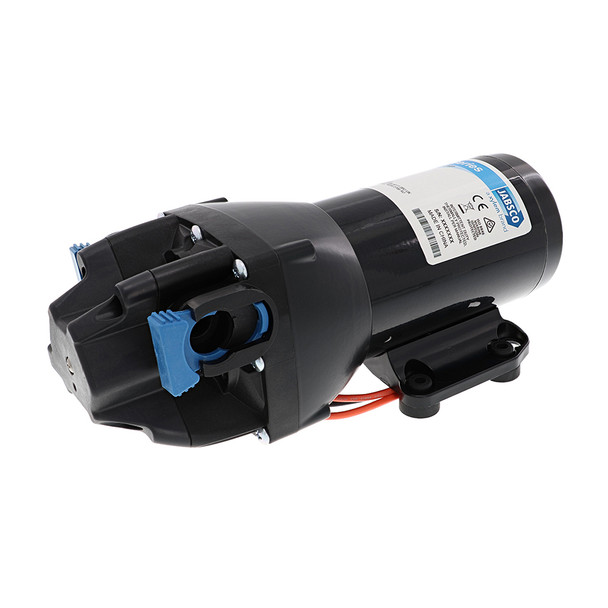

Jabsco HotShot HD4 12V Heavy Duty Washdown Pump - 4 GPM at 60 PSI for Reliable Marine and Industrial Cleaning

HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.1m min)


• Certifications: CE, ISO8846, RCM


• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.


• 90 20 mesh Quick Connect straine


• Trigger nozzle Quick Connect hose adapters


• Kit version includes 25' HoseCoil

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot HD4 Heavy Duty Washdown Pump is designed to deliver high-flow, high-pressure cleaning performance suitable for demanding marine, industrial, and commercial applications. This robust 12-volt diaphragm pump provides a flow rate of 4 gallons per minute and a pressure of 60 PSI, ensuring efficient and thorough cleaning with minimal effort. Built with durability in mind, the HD4 model features a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing that enhance pressure capacity and extend operational lifespan. Its corrosion-resistant plastic housing protects vital components, making it an excellent choice for rugged environments.

Engineered with advanced co-molded diaphragm technology, the HD4 pump offers long-lasting durability and reliable performance over time. The heavy-duty motor is designed to operate efficiently and quietly, reducing noise during operation while maintaining consistent pressure. An integrated sealed pressure switch enables on-demand activation, and the self-priming feature allows flexible installation options, even in challenging setups. The pump can run dry without damage, providing added versatility for various applications. Quick connect ports facilitate easy installation, servicing, and maintenance, while vibration dampening mounting feet help minimize operational noise and vibration.

Additional features include a glass fiber reinforced polypropylene pumphead upper housing for strength, EPDM check valves for reliable fluid control, and compatibility with accessories such as quick connect hosebarb fittings, strainers, trigger nozzles, and hose adapters. The full kit version includes a 25-foot hose coil, making setup straightforward and ready for immediate use. Certified to CE, ISO8846, and RCM standards, and rated IPX6 for ingress protection, the Jabsco HD4 pump is built to perform reliably in diverse environments. Its ability to operate within a fluid temperature range of 32°F to 140°F makes it suitable for a variety of liquids and conditions.

Whether for boat decks, industrial cleaning, or maintenance tasks, the Jabsco HotShot HD4 Heavy Duty Washdown Pump offers dependable, high-performance cleaning power in a compact and durable package, ensuring long-term satisfaction and efficient operation.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor with cast aluminum lower housing for enhanced pressure and longevity

• Efficient and quiet operation for user comfort

• Integrated sealed pressure switch for on-demand activation

• Self-priming capability up to 7 feet for installation flexibility

• Can run dry without damage, increasing versatility

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet for reduced noise and vibration

• Full kit options include 25-foot hose coil for convenience
