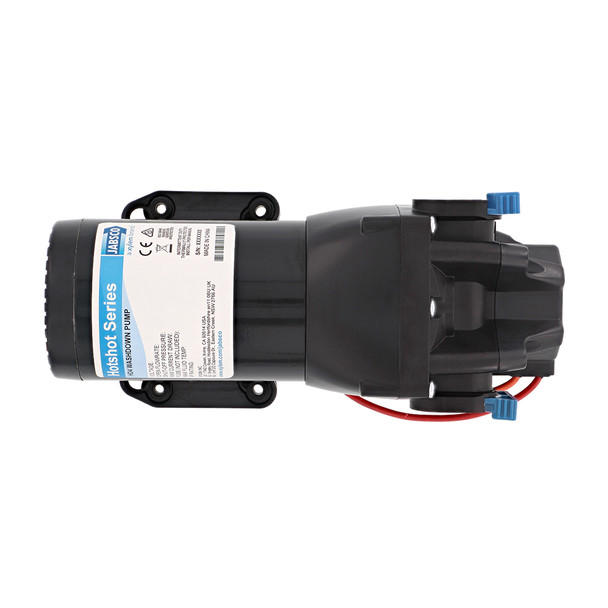

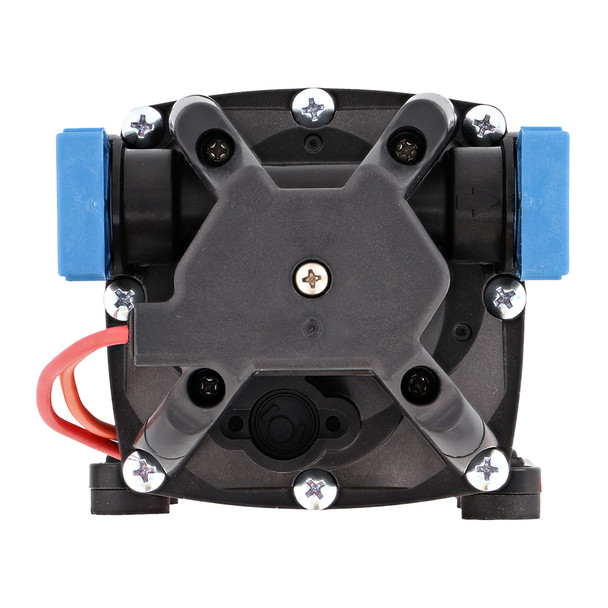

Jabsco HotShot HD4 24V Heavy Duty Washdown Pump - 4 GPM at 60 PSI

HotShot HD4 Heavy Duty Washdown Pump - 24V - 4 GPM - 60 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.1m min)


• Certifications: CE, ISO8846, RCM


• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.


• 90 20 mesh Quick Connect strainer


• Trigger nozzle Quick Connect hose adapters


• Kit version includes 25' HoseCoil

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot HD4 Heavy Duty Washdown Pump is designed for demanding cleaning applications requiring high flow and pressure. This 24-volt diaphragm pump delivers up to 4 gallons per minute at 60 PSI, making it ideal for marine, industrial, or commercial use where reliable and consistent performance is essential. Built with a robust construction, the HD models feature a wider diameter motor with a powder-coated shell, cast aluminum endbells, and lower housings to enhance pressure capabilities and longevity. The plastic housing provides corrosion resistance, ensuring durability in harsh environments.
The HD4 incorporates co-molded diaphragm technology for extended service life and durability. Its heavy-duty motor and cast aluminum housing allow it to operate efficiently even under high-pressure conditions, while maintaining quiet operation. An integrated, sealed pressure switch enables on-demand activation, reducing unnecessary wear and power consumption. The self-priming feature allows flexible installation options, and the pump can run dry without damage, adding to its reliability. Quick connect ports facilitate easy installation, servicing, and maintenance, while vibration dampening mounting feet help minimize noise and vibration during operation.
The pump is equipped with a glass fiber reinforced polypropylene pumphead upper housing, co-molded TPV diaphragms, and EPDM check valves to ensure compatibility with a variety of fluids. It supports inlet pressures up to 30 PSI and can operate within a temperature range from 32°F to 140°F. Certifications include CE, ISO8846, and RCM, and it boasts an ingress protection rating of IPX6, suitable for demanding environments.
For added convenience, the pump is compatible with quick connect straight hosebarb and GHT fittings, 90° 20 mesh strainers, trigger nozzles, and hose adapters. The full kit version includes a 25-foot HoseCoil for extended reach and versatility. Whether for marine washdowns or industrial cleaning, the Jabsco HotShot HD4 offers powerful, reliable performance with easy installation and maintenance, backed by Jabsco’s reputation for quality and durability.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor with cast aluminum housing for high-pressure operation

• Efficient and quiet operation for user comfort

• Integrated sealed pressure switch for on-demand activation

• Self-priming capability for versatile installation

• Can run dry without damage, ensuring reliability

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet for reduced noise

• Full kit options available with 25-foot hose coil
