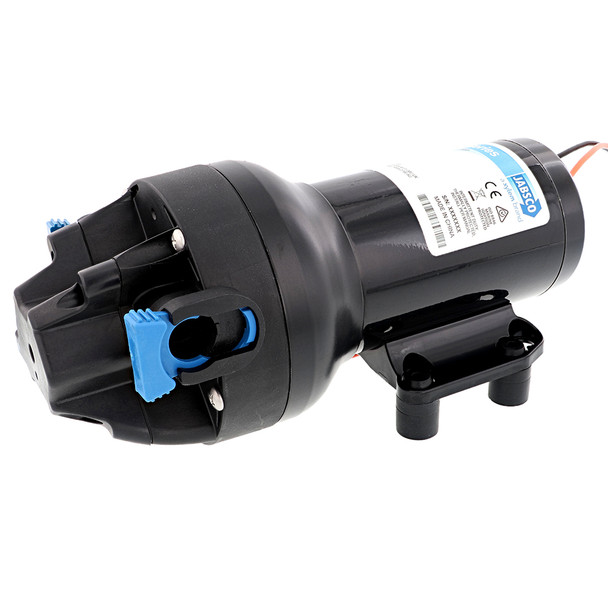

Jabsco HotShot HD5 12V Heavy Duty Washdown Pump - 5 GPM at 70 PSI

HotShot HD5 Heavy Duty Washdown Pump - 12V - 5 GPM - 70 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.1m min)


• Certifications: CE, ISO8846, RCM


• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.


• 90 20 mesh Quick Connect strainer


• Trigger nozzle Quick Connect hose adapters


• No kit versions with hose offered

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot HD5 Heavy Duty Washdown Pump is engineered for demanding cleaning applications where reliable high-flow and high-pressure performance are essential. Designed with durability in mind, this 12V pump delivers up to 5 gallons per minute at 70 PSI, making it suitable for industrial, commercial, and marine use. Its robust construction incorporates a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing to enhance pressure capacity and extend service life. The pump's glass fiber reinforced polypropylene pump head and co-molded TPV diaphragm ensure long-lasting operation even under rigorous conditions. Efficient and quiet, the HD5 model features an integrated sealed pressure switch for on-demand operation and is capable of running dry without damage, providing installation flexibility and operational security. Its self-priming capability allows for versatile mounting options, while quick connect ports simplify installation and maintenance. Vibration dampening mounting feet further reduce noise and vibration during operation. The pump is suitable for fluid temperatures between 32°F and 140°F and is certified to CE, ISO8846, and RCM standards, with an ingress protection rating of IPX6 for resistance against water ingress. The pump also includes accessories such as quick connect hose fittings, strainers, and adapters, with full kit options available that include a 25-foot hose coil for comprehensive washdown solutions. Constructed with heavy-duty components and a corrosion-resistant plastic housing, the Jabsco HotShot HD5 is a dependable choice for applications requiring continuous, high-performance washdown capabilities.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing for high-pressure endurance

• Efficient, quiet operation suitable for continuous use

• Integrated sealed pressure switch for on-demand control

• Self-priming design allows flexible mounting options

• Can operate dry without damage, enhancing reliability

• Quick connect ports for easy installation and servicing

• Vibration dampening mounting feet reduce noise and vibration

• Includes accessories such as hose fittings, strainers, and adapters
