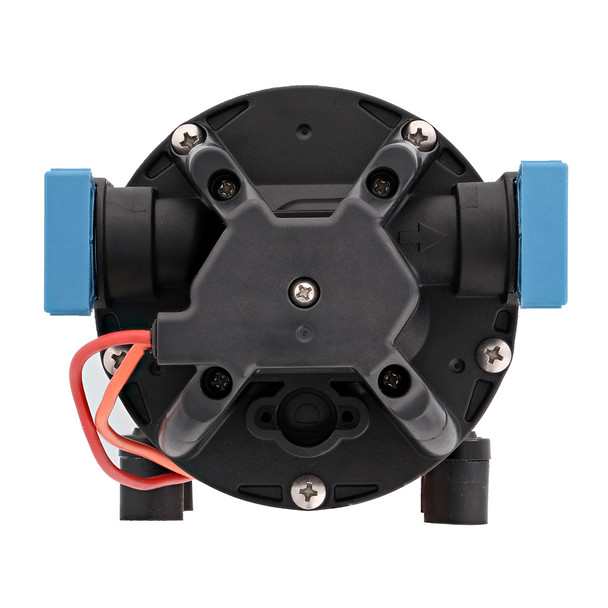

Jabsco HotShot HD6 12V Heavy Duty Washdown Pump - 6 GPM at 70 PSI

HotShot HD6 Heavy Duty Washdown Pump - 12V - 6 GPM - 70 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.1m min)


• Certifications: CE, ISO8846, RCM


• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.


• 90 20 mesh Quick Connect strainer


• Trigger nozzle Quick Connect hose adapters


• Kit version includes 25' deluxe HoseCoil

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot HD6 Heavy Duty Washdown Pump delivers reliable and high-performance cleaning power for demanding applications. Designed to provide a flow rate of 6 gallons per minute at 70 PSI, this pump is ideal for heavy-duty marine, industrial, or commercial use. Its robust construction ensures durability and long service life, making it a dependable choice for frequent washdown tasks. The pump features a heavy-duty motor with a powder-coated shell, cast aluminum endbells, and a lower housing that contribute to its enhanced pressure capabilities and longevity. The glass fiber reinforced polypropylene pumphead and co-molded TPV diaphragm ensure consistent performance and resistance to wear, even under continuous use.
The integrated sealed pressure switch allows for convenient on-demand operation while the self-priming feature ensures installation flexibility. The pump can operate dry without damage, reducing concerns about accidental dry running. Quick connect ports facilitate easy installation, servicing, and maintenance, while vibration dampening mounting feet help reduce noise and vibration during operation. Available in full kits with a 25-foot hose coil, this pump offers comprehensive solutions for your washdown needs.
Certified to CE, ISO8846, and RCM standards, the Jabsco HotShot HD6 is built to meet rigorous quality and safety requirements. Its ingress protection rating of IPX6 ensures resistance to water ingress in demanding environments. The pump is compatible with various fittings and accessories, such as quick connect hosebarb and GHT fittings, strainers, and trigger nozzles, making it versatile for different setups. Its compact, lightweight design makes it suitable for a variety of applications where space and reliability are critical.
Whether for marine vessels, industrial cleaning, or other heavy-duty washdown tasks, the Jabsco HotShot HD6 provides a dependable, high-flow, high-pressure solution that combines durability, ease of use, and performance in a compact package. Its heavy-duty motor and durable components ensure it withstands demanding environments while delivering consistent results over time.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor with cast aluminum lower housings for enhanced pressure and longevity

• Efficient and quiet operation for user comfort

• Integrated, sealed pressure switch for on-demand activation

• Self-priming capability allows flexible installation

• Can operate dry without damage, reducing maintenance worries

• Quick connect ports for easy installation and servicing

• Vibration dampening mounting feet for reduced noise and vibration

• Full kit options include 25-foot hose coil for comprehensive setup
