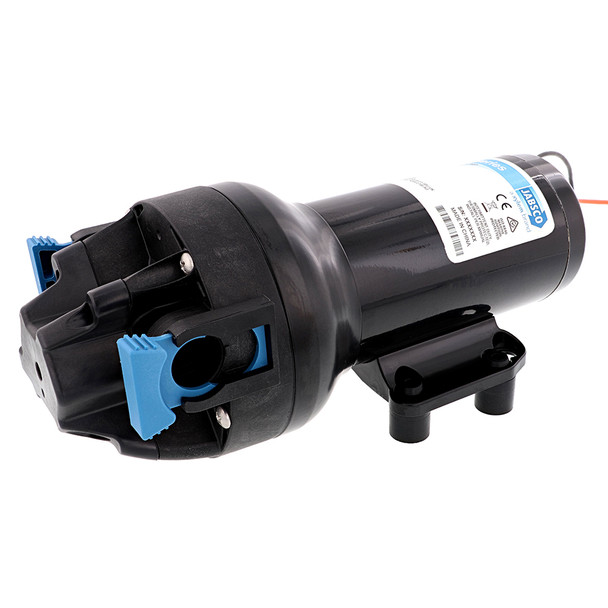

Jabsco HotShot HD6 24V Heavy Duty Washdown Pump – 6 GPM, 70 PSI

HotShot HD6 Heavy Duty Washdown Pump - 24V - 6 GPM - 70 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.1m min)


• Certifications: CE, ISO8846, RCM


• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.


• 90 20 mesh Quick Connect strainer


• Trigger nozzle Quick Connect hose adapters


• Kit version includes 25' deluxe HoseCoil

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot HD6 Heavy Duty Washdown Pump is engineered for demanding cleaning tasks, offering reliable high-flow and high-pressure performance. Built with durability in mind, this 24V diaphragm pump features a robust design with a wider diameter motor housed in a powder-coated shell and cast aluminum endbells, ensuring longevity even under continuous use. The pump's efficient operation produces up to 6 gallons per minute at 70 PSI, making it ideal for heavy-duty washdown applications in marine, industrial, or agricultural environments.
Constructed with co-molded diaphragm technology using durable TPV material, the HD6 provides extended service life and resistance to wear. Its integrated, sealed pressure switch facilitates on-demand operation, while the self-priming feature allows flexible installation options and ease of use. The pump can run dry without damage, and quick connect ports simplify installation, servicing, and maintenance. Vibration dampening mounting feet contribute to quieter operation, enhancing user comfort during prolonged use.
The pump's construction includes a glass fiber reinforced polypropylene pumphead and EPDM check valves, suitable for fluid temperatures from freezing to 140°F. It is rated for up to 30 PSI inlet pressure and is certified with CE, ISO8846, and RCM standards, with an ingress protection rating of IPX6, ensuring resistance to water and dust. Optional kit versions include a 25-foot hose coil for added convenience, along with various fittings and accessories such as quick connect hosebarb and GHT fittings, strainers, and trigger nozzles, making this pump versatile and easy to integrate into existing systems.
Ideal for applications requiring durable, high-pressure washdowns, the Jabsco HotShot HD6 combines innovative features with rugged construction, ensuring dependable performance in demanding environments. Its compact form factor and comprehensive accessory options make it a versatile choice for professional and recreational use alike.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings for enhanced pressure capability and longevity

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand activation

• Self-priming design allows versatile installation

• Can run dry without damage, reducing maintenance concerns

• Quick connect ports for easy installation and servicing

• Vibration dampening mounting feet for quieter operation

• Full kit versions available with 25-foot hose coil for added convenience
