Description

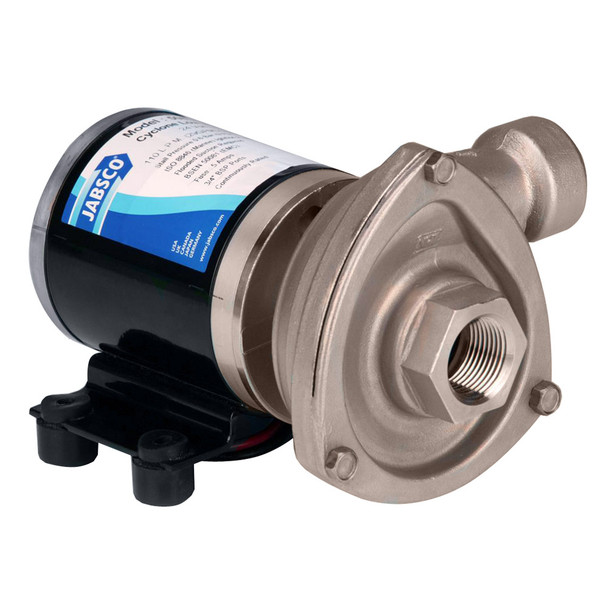

Low Pressure Cyclone Centrifugal Pump - 12V
Silent running. Single tool servicing. 2m (6 foot) suction lift when wet.
A range of Stainless Steel General Purpose Centrifugal pumps designed specifically for the marine and industrial markets. Typical applications would be for circulation applications such as hot water systems, livewell or bait tank installations.
Features:
- Heavy duty robust design
- Stainless steel construction
- Long life DC motor
- Silent running
- Anti-clog impeller design
- Long life mechanical seal
- Single tool servicing
Specifications:
- Pump Body: Stainless Steel
- Port Size: 3/4" pipe threads, available with NPTF threads
- Flow: 110 Liters/Minute (29.7 gallons/min.)
- Pressure: Up to 0.6 bar (8.7psi)
- Impeller: Stainless Steel Anti-Clog Impeller Design
- Shaft Seal: Mechanical
- Maximum Current: 9 Amp
- Fuse Size: 10 Amp
- Motor: Continuously rated
- Motor life 3500 hours
- ISO 8846 Marine and USCG Regulations for Ignition Protection
- ISO 8849 Marine Bilge Pump Standard
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
The Jabsco Low Pressure Cyclone Centrifugal Pump, part number 50840-0012, is a reliable 12V stainless steel pump designed for versatile marine and industrial applications. Its robust construction ensures durability and longevity, making it ideal for circulation tasks such as hot water systems, livewells, and bait tanks. The pump features a silent running operation, allowing for quiet performance during extended use. With a 2-meter (6-foot) wet suction lift, it provides efficient fluid transfer even in challenging conditions. The anti-clog impeller design minimizes maintenance needs and enhances performance, while the long-life mechanical seal ensures durability in demanding environments.
This pump is engineered with a heavy-duty build and features a stainless steel body with 3/4-inch pipe threads, available with NPTF threads. It can deliver a flow rate of up to 110 liters per minute (29.7 gallons per minute) and operates at pressures up to 0.6 bar (8.7 psi). The continuously rated DC motor has a life expectancy of approximately 3,500 hours and draws a maximum current of 9 amps, protected by a 10-amp fuse for safety. Its compliance with ISO 8846 marine and USCG ignition protection standards, along with ISO 8849 Marine Bilge Pump certification, ensures it meets rigorous safety and performance regulations. Maintenance is simplified with a single-tool servicing design, enabling quick and easy inspection or replacement of components.
Designed for demanding environments, the Jabsco 50840-0012 pump provides reliable performance and ease of use in various circulation applications. Its stainless steel construction not only enhances corrosion resistance but also ensures durability across marine and industrial settings. For detailed installation and maintenance instructions, refer to the dedicated owners manual available online.
Features:
- Heavy-duty robust design for durability
- Stainless steel construction resistant to corrosion
- Long-lasting DC motor with an estimated 3500-hour lifespan
- Silent running operation for quiet performance
- Anti-clog impeller design reduces maintenance
- Long-life mechanical shaft seal for enhanced durability
- Single tool servicing for quick maintenance
