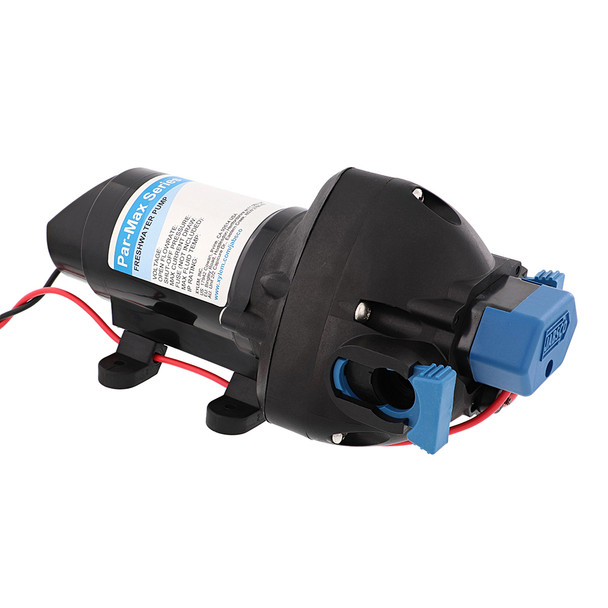

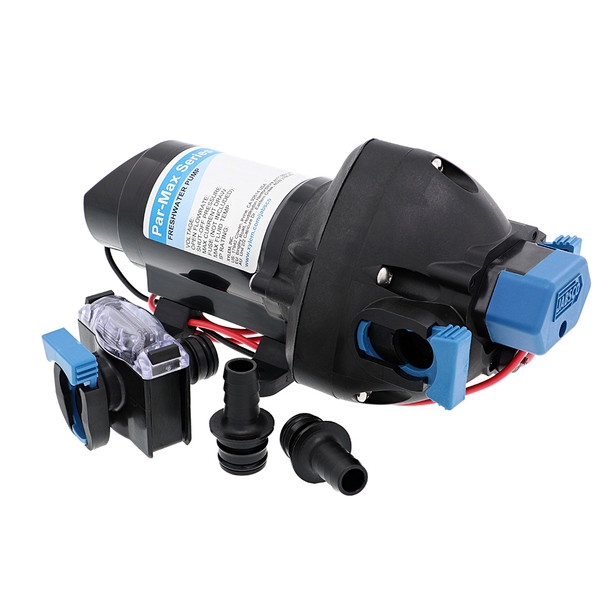

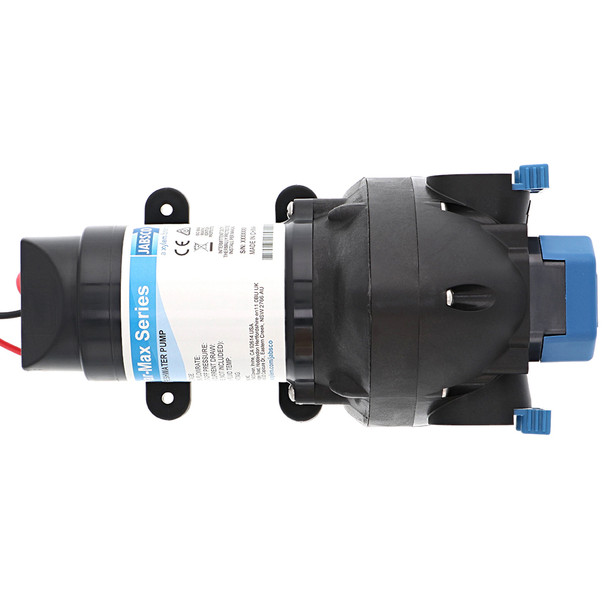

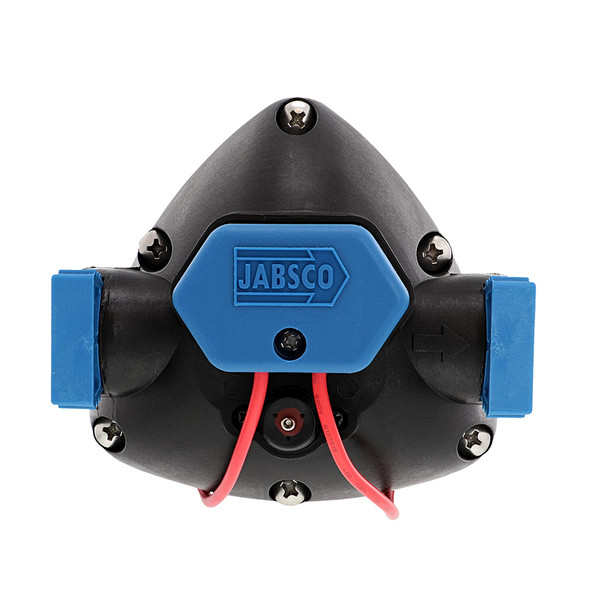

Jabsco Par-Max 3 Water Pressure Pump - 12V, 3 GPM, 25 PSI

Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 25 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 3 Water Pressure Pump delivers reliable performance for demanding applications. Designed with a durable construction, this 12-volt pump provides a flow rate of 3 gallons per minute and a pressure of 25 PSI, making it ideal for vessel or RV water systems requiring consistent water pressure. Its compact design and integrated components facilitate easy installation and maintenance, ensuring long-term operation. The pump features a sealed pressure switch for on-demand operation, enabling efficient water flow only when needed. Its self-priming capability allows for flexible installation options and quick startup, even in challenging conditions. Built with corrosion-resistant materials such as glass fiber reinforced polypropylene and a co-molded TPV diaphragm, the Par-Max 3 is suitable for a range of fluid temperatures from freezing to 140°F, providing versatility across various environments. Notably, the pump can operate dry without damage, enhancing its durability in real-world use. Additionally, vibration dampening mounting feet help reduce noise and vibration during operation, contributing to a quieter working environment. The integrated bypass module minimizes cycling and ensures smoother flow, extending the life of the pump and its components. This model is certified by CE, ISO8846, and RCM standards, with an ingress protection rating of IPX6, making it resistant to water ingress and suitable for outdoor or marine applications. The pump’s efficient, quiet operation and rugged construction make it a dependable choice for water systems where performance and longevity are critical. Whether for recreational vehicle water supply, marine, or small-scale industrial applications, the Jabsco Par-Max 3 provides a high-quality solution built for demanding environments.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings for extended longevity at high pressures

• Efficient and quiet operation for a comfortable user experience

• Integrated, sealed pressure switch for on-demand water flow

• Self-priming design allows flexible installation options

• Can operate dry without damage, enhancing durability

• Quick connect ports for easy installation, servicing, and maintenance

• Vibration dampening mounting feet reduce noise and vibration

• Integrated bypass module promotes smoother flow and reduces cycling
