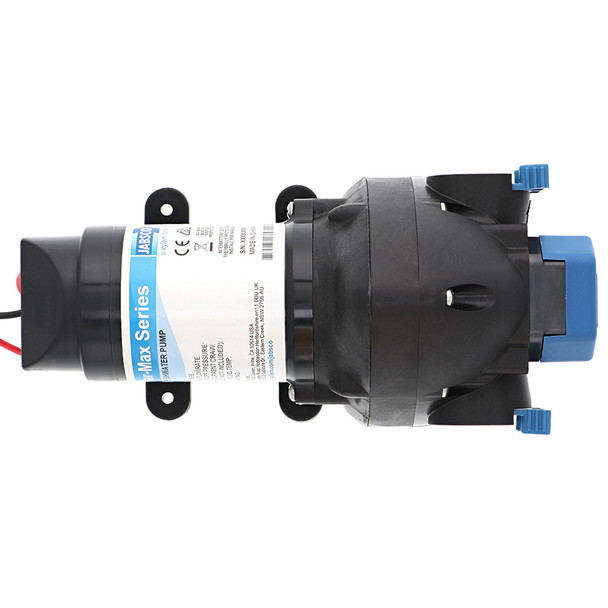

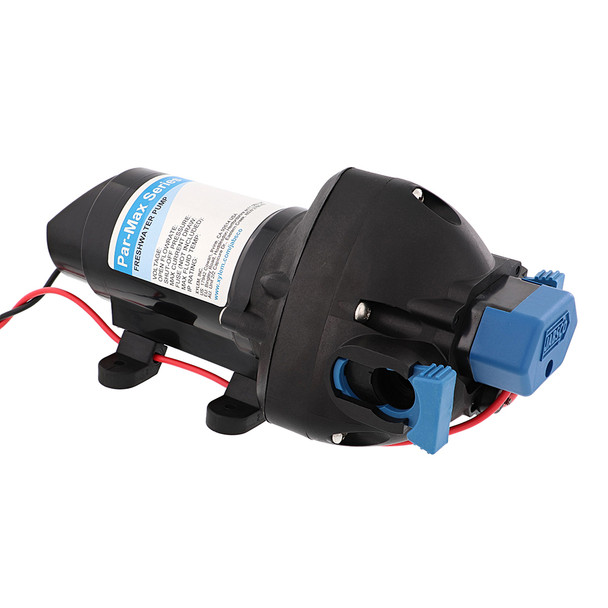

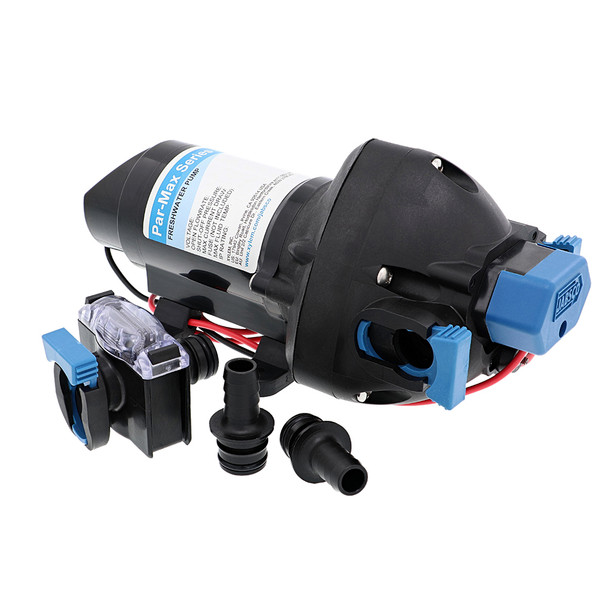

Jabsco Par-Max 3 Water Pressure Pump - 12V, 3 GPM, 40 PSI

Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 3 Water Pressure Pump is a reliable choice for marine, RV, and other mobile applications requiring consistent water flow. Designed with a heavy-duty motor featuring a wider diameter and a durable powder-coated shell, this pump offers enhanced pressure capability and longevity. Its robust construction includes cast aluminum endbells and lower housings, making it well-suited for demanding environments. The compact standard model provides efficient performance for vessels with 1 to 3 outlets, utilizing a plastic housing that protects against corrosion and ensures durability over time.
The Par-Max 3 incorporates advanced features such as co-molded diaphragm technology for long-lasting performance, a sealed pressure switch for on-demand operation, and self-priming capability up to 7 feet. These features allow for versatile installation options and smooth operation, even allowing the pump to run dry without damage. Quick connect ports facilitate easy setup and maintenance, while vibration dampening mounting feet reduce noise and movement during operation. An integrated bypass module helps minimize cycling, promoting a steadier flow and reducing wear.
Constructed with a glass fiber reinforced polypropylene pump head and co-molded TPV diaphragm, this pump is built for durability and resistance to harsh conditions. Check valves made from EPDM further enhance reliability. Certified to CE, ISO8846, and RCM standards, and rated IPX6 for ingress protection, the Jabsco Par-Max 3 is designed to perform reliably in various environments. Its efficient, quiet operation makes it an ideal choice for those seeking a dependable water pump that combines performance, ease of use, and longevity in a compact form factor.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor with cast aluminum lower housing for high-pressure performance

• Efficient and quiet operation suitable for various applications

• Integrated sealed pressure switch for on-demand water flow

• Self-priming capability up to 7 feet for versatile installation

• Can operate dry without damage, ensuring reliability

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet to reduce noise and movement

• Built-in bypass module to minimize cycling and ensure smooth flow
