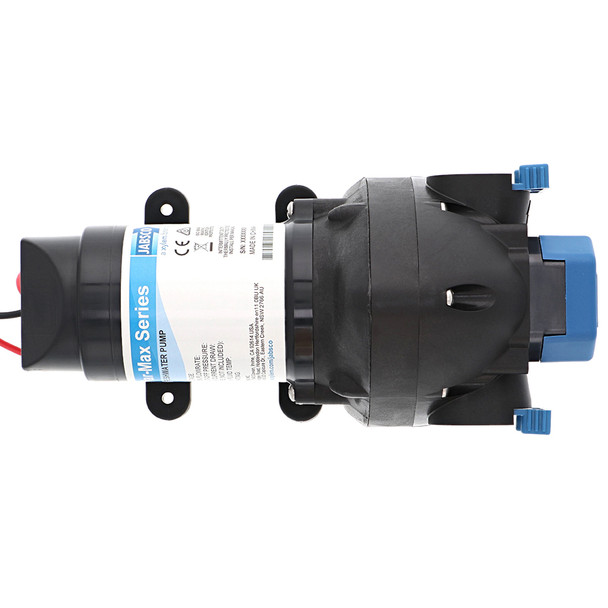

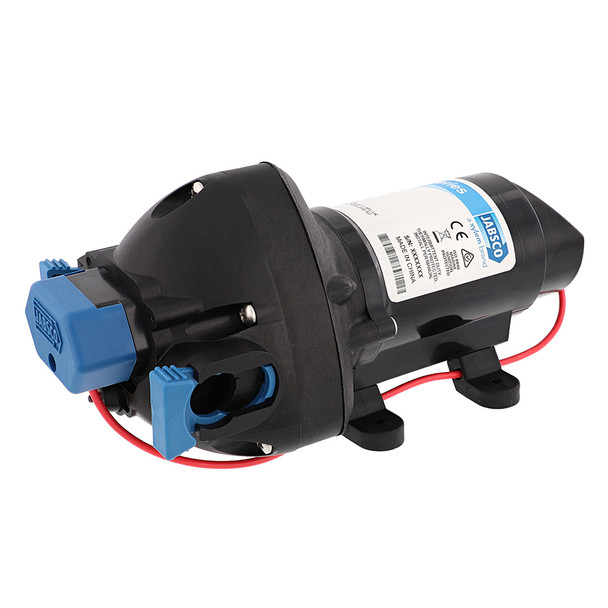

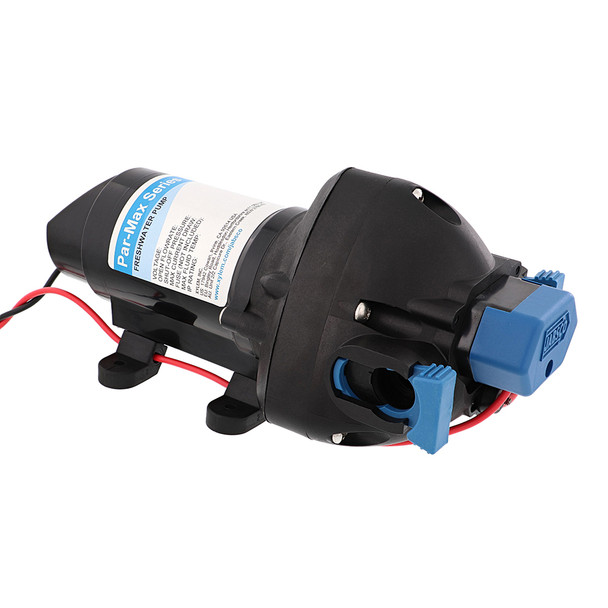

Jabsco Par-Max 3 Water Pressure Pump - 24V, 3 GPM, 25 PSI

Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 3 Water Pressure Pump is a reliable and efficient solution for marine and RV applications requiring consistent water flow. Designed with a 24-volt brushed, permanent magnet TENV motor, this pump delivers a flow rate of 3 gallons per minute at 25 PSI, making it suitable for vessels with multiple outlets or small plumbing systems. Its compact design features a glass fiber reinforced polypropylene pump head and a co-molded TPV diaphragm, ensuring durability and long-lasting performance in demanding environments. The pump's integrated, sealed pressure switch allows for on-demand operation, reducing energy consumption and wear. Its self-priming capability of up to 7 feet enables flexible installation options, even in challenging locations, while the quick connect ports facilitate easy installation, servicing, and maintenance.

Heavy-duty models of the Par-Max 3 incorporate a wider diameter motor with a powder-coated shell, cast aluminum endbells, and lower housing to enhance pressure capability and extend operational life. These HD variants are capable of supporting higher pressures up to 60 PSI (4.1 BAR) and flow rates up to 6 GPM (23 LPM). The inclusion of vibration dampening mounting feet and an integrated bypass module ensures quieter operation, smoother flow, and reduced cycling, which helps prevent premature wear. The pump's components, including check valves made from EPDM and a plastic housing, provide excellent corrosion resistance, suitable for marine environments. The pump is certified CE, ISO8846, and RCM, with an ingress protection rating of IPX6, indicating strong resistance to water ingress.

This product is designed to run dry without damage, offering added versatility and safety in installation. Its operational temperature range spans from freezing point to 140°F (0°C to 60°C), making it adaptable to various water conditions. Please note that this pump contains chemicals like antimony trioxide, which are known to California residents to cause cancer, as detailed in the P65Warnings. Overall, the Jabsco Par-Max 3 offers durable, quiet, and efficient performance for marine water systems, making it a dependable choice for demanding applications.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings in HD models for extended lifespan and high-pressure performance

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand water flow

• Self-priming capability allowing flexible installation

• Can run dry without damage, ensuring safety and versatility

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet for reduced noise and vibration

• Integrated bypass module to reduce cycling and ensure smooth flow
