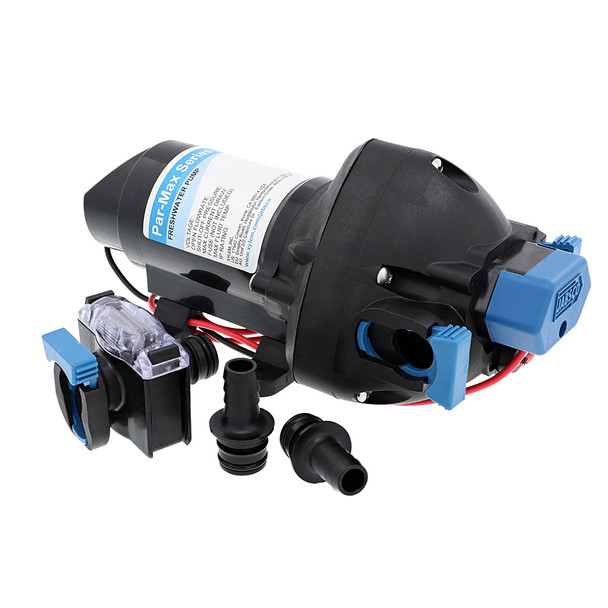

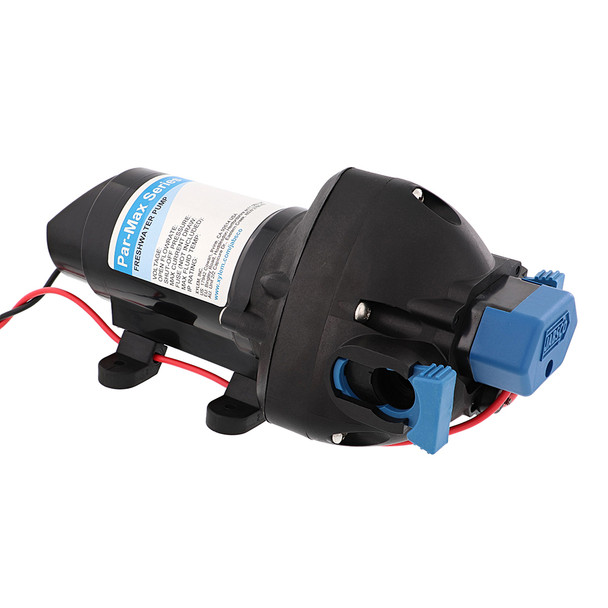

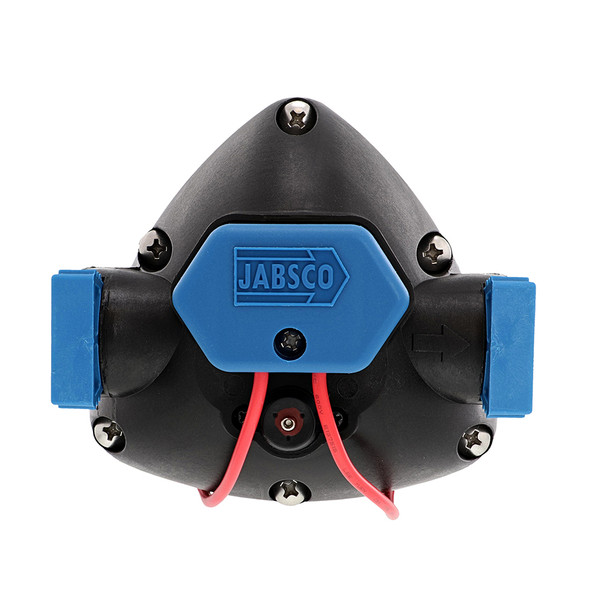

Jabsco Par-Max 3 Water Pressure Pump - 24V, 3 GPM, 40 PSI

Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 3 Water Pressure Pump is a reliable and efficient solution for maintaining consistent water flow in marine, RV, and mobile applications. Designed by Jabsco, this model operates on 24 volts and delivers up to 3 gallons per minute at 40 pounds per square inch, making it suitable for vessels with multiple outlets or demanding water supply needs. Its compact design and integrated features facilitate easy installation and maintenance, ensuring long-lasting performance in various environments.

Constructed with durable materials, the Par-Max 3 features co-molded diaphragm technology for enhanced longevity and resistance to wear. The pump's motor is protected by a plastic housing with a corrosion-resistant design, ensuring durability in marine conditions. The heavy-duty models include a wider diameter motor with a powder-coated shell and cast aluminum endbells and lower housings, which improve pressure capabilities and extend service life under high-pressure demands.

Additional features include a sealed, integrated pressure switch for on-demand operation, enabling the pump to run only when water flow is required, thereby conserving energy. Its self-priming capability allows flexible installation options, and the pump can operate dry without damage, adding to its versatility. Quick connect ports simplify installation, servicing, and maintenance, while vibration dampening mounting feet reduce noise and vibration during operation. An integrated bypass module helps to reduce cycling and deliver a smoother flow, enhancing overall operational stability.

Designed for a wide range of operating conditions, the Jabsco Par-Max 3 is suitable for fluid temperatures from freezing to 140°F (0°C to 60°C). It is certified under CE, ISO8846, and RCM standards, with an ingress protection rating of IPX6, making it resistant to water ingress and suitable for demanding environments. This pump is an excellent choice for those seeking dependable performance, durability, and ease of use in their water management systems.

Note: This product may contain chemicals including antimony oxide, which is recognized by California as a carcinogen. For more details, visit P65Warnings.ca.gov.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy duty motor with cast aluminum lower housing for high-pressure performance

• Efficient and quiet operation for residential or marine applications

• Integrated, sealed pressure switch for on-demand water flow

• Self-priming capability allows flexible installation options

• Can operate dry without damage, ensuring reliability

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet reduce operational noise

• Built-in bypass module for smoother flow and reduced cycling
