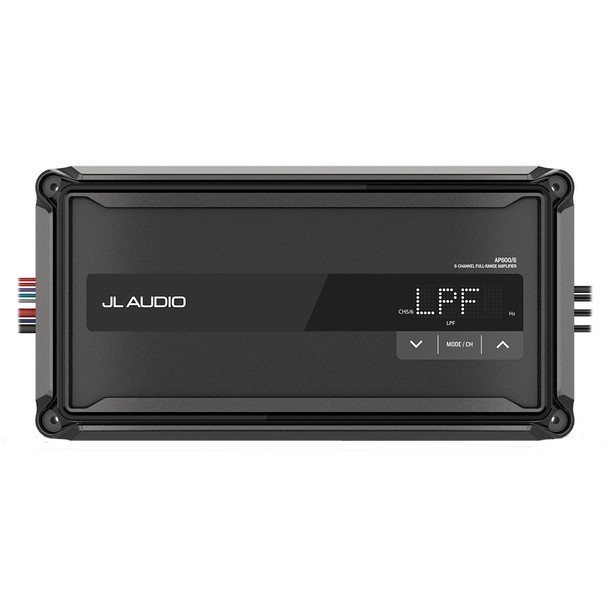

JL Audio AP 600/6 Compact Marine 6-Channel Amplifier with IP67 Protection

AP 4 Channel Compact Marine Amplifier - AP600/6

POWER THE MOMENT

With these tough and ultracompact amplifiers, you can enjoy every note from every part of your boat.

• Efficient Class-D design


• Built-in LCD for manual control


• Ignition protected and IP-67 Rated (excluding cables)


• Easy tune feature

600-Watt 6 Channel Amplifier

This staggered-power 6-channel amplifier can power up to a maximum of six pairs of speakers or four pairs of speakers and one subwoofer.

Easy Tune Feature

For additional optimization, pair with a Fusion stereo with built-in DSP, and download the Fusion Audio app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.

Class-D Amplifier Technology

The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.

Rugged Design

These amplifiers offer superior levels of durability and are built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

Specifications

General

• Channels: 6


• Physical Height: 1.86


• Physical Width: 11.81


• Physical Depth: 5.9


• Operating Voltage: 9-16 VDC


• Water and Dust Rating: IP67

Audio

• Amplifier Class: Class D


• RMS Power @ 4 OHM: Channels 1-4: 50 W x 4/150 W x 2 (Bridged); Channels 5-6: 100 W x 2/300 x 1 (Bridged)


• RMS Power @ 2 OHM: Channels 1-4: 75 W x 4; Channels 5-6: 150 W x 2


• Frequency Response: 20hz - 20kHz


• Input Sensitivity: Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)


• Input Impedance: 11 k (High) 20 k (Low)


• Current Consumption (idle): 1000-150mA


• Fuse Rating: 70A


• Recommended Fuse Types: AFS, AGU, or MaxiFuse


• Min. Copper Power/Ground Wire: 4 awg Wire


• Protection Circuits: Input under/over voltage, Over temperature, Output short circuit

Signal Processing

• High-Pass/Low-Pass Full Range Filter: Yes (user selectable)


• Filter modes - Channel 1 2: Off, Low-pass, or High-pass


• Filter modes - Channel 3 4: Off, Low-pass, or High-pass


• Filter modes - Channel 5 6: Off, Low-pass, or High-pass

The JL Audio AP 600/6 is a high-performance, compact marine amplifier designed to deliver powerful audio in demanding environments. Featuring an efficient Class-D design, this amplifier provides up to 600 watts of power, capable of driving up to six pairs of speakers or a combination of speakers and a subwoofer. Its rugged construction meets IP67 standards, ensuring resistance to water, dust, and harsh marine conditions, making it ideal for boat installations where durability is paramount. The built-in LCD allows for manual control and easy tuning, while the easy tune feature simplifies setup, especially when paired with a Fusion stereo with onboard DSP capabilities and the Fusion Audio app for customizable sound profiles. This synergy optimizes sound quality and system protection with minimal effort.

Features:

• Efficient Class-D design for high power output with low battery drain

• Built-in LCD for manual control and system tuning

• IP67 rated for water and dust resistance (excluding cables)

• Easy tune feature for simplified amplifier setup when used with Fusion stereo systems

• Staggered power channels support multiple speaker and subwoofer configurations

• High-pass and low-pass filter options for precise sound shaping

• Protection circuits including over/under voltage, over temperature, and short circuit

• Heavy-duty construction built to withstand marine environments

• Supports switchable input sensitivity for versatile system integration
