In Stock
JL Audio

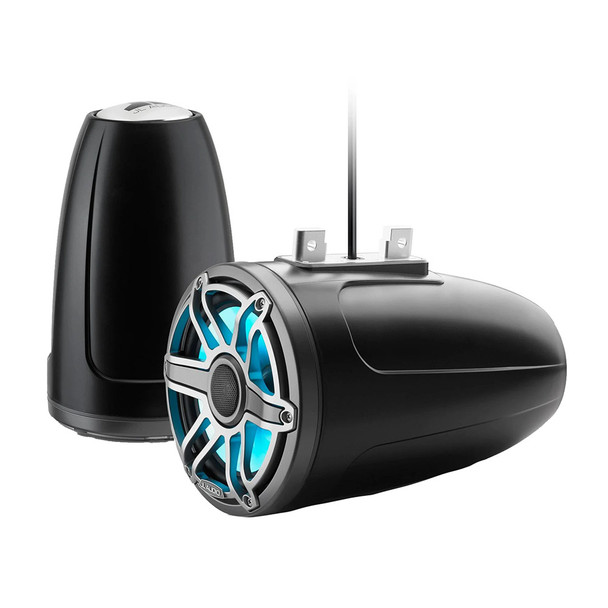

JL Audio M6 Series 7.7-inch Enclosed Tower Coaxial System with Titanium Sport Grille and Transflective LED Lighting - Model M6-770ETXv3-Sb-S-GmTi-i

No reviews yet Write a Review
$1,149.99
SKU:
106169
UPC:
699440936538
Current Stock:
2

Frequently Bought Together:

JL Audio M6 Series 7.7-inch Enclosed Tower Coaxial System with Titanium Sport Grille and Transflective LED Lighting - Model M6-770ETXv3-Sb-S-GmTi-i
Inc. Tax
Ex. Tax

Description

M6 Series 7.7 Enclosed Tower Coaxial System with Titanium Sport Grille Transflective LED Lighting - M6-770ETXv3-Sb-S-GmTi-i

UNLEASH GREAT SOUND BEYOND YOUR BOAT

Whether youre on the boat or riding the wake behind it, the JL Audio M6 is the ultimate tower speaker system for delivering powerful, crystal-clear sound that you can hear and enjoy well beyond the boat.

Features


  • Powerful midbass output in open-air applications

  • 7.7 coaxial speakers with silk dome tweeters

  • Wide range of tubular or surface-mounting options

  • Transflective RGB LED Lighting

  • Exceeds international standards for salt fog and UV exposure

  • 3-Year warranty

Towering Performance

Robust M6 speakers are ideal for wakeboard towers or other tubular structures or they can be flat mounted to decks and other surfaces to deliver superb sound quality with strong projected output.

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Matching Silk Dome Tweeters

Precisely tuned tweeters, uniquely sized for each woofers diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.

Advanced Filter Networks

Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.

Powerfully Efficient

M6 series marine speakers used in this system benefit from operation with quality amplification for superior audio clarity at all volume levels.

Real Marine Duty

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

In The Box


  • Two wake tower enclosures with marine coaxial loudspeakers and grills installed

  • Two aluminum logo caps

  • One tube of silicone adhesive

  • Four blue butt splice connectors (#16-14 AWG)

  • Eight red butt splice connectors (#22-18 AWG)

Specifications


  • Size: 7.7

  • Color: Titanium Sport

  • Physical Dimensions (Diameter): 7.70

  • Physical Dimensions (Depth): 12.62

  • Speaker Type: Enclosed Coaxial

  • Continuous Power Handling (RMS): 100w

  • Sensitivity (SPL @ 1w/1m): 91.0 dB

  • Frequency Response (+/- 3 dB): 38 Hz - 20 Hz

  • Nominal Impedance: 4 Ohm

  • Recommended Amplifier Power (RMS): 40-200 w/channel

  • LED Lighting: Yes - Transflective

  • LED Supply Voltage: 10-14.4 VDC

  • LED Load Current @ 14.4 VDC (Max): 324 mA

  • Cone Material: Injection-molded, mica-filled polypropylene

  • Tweeter Type: Silk Dome

  • Tweeter Size: 1

  • Warranty: 3-Year

Connections


  • Speaker Connections: Flying Lead with 16 AWG wire (10 ft)

  • Flying Lead with 4-conductor 20 AWG wire (10 ft)


The JL Audio M6 Series 7.7-inch enclosed tower coaxial system is engineered to deliver exceptional sound performance in marine environments. Designed with a robust titanium sport grille and transflective RGB LED lighting, this system enhances both aesthetics and durability on your boat. Whether mounted on wakeboard towers or flat surfaces, it provides powerful midbass output with crystal-clear clarity, making it ideal for outdoor aquatic activities. Crafted to exceed international salt fog and UV exposure standards, the JL Audio M6 ensures long-lasting performance even in harsh marine conditions. The system includes two enclosures pre-installed with marine-grade coaxial speakers, providing a seamless installation experience and immediate enjoyment of premium sound quality.

Features:

  • Powerful midbass output designed for open-air applications
  • 7.7-inch coaxial speakers equipped with silk dome tweeters for detailed sound
  • Flexible mounting options including tubular and surface mounts
  • Transflective RGB LED lighting for customizable illumination
  • Built to withstand salt fog and UV exposure for long-term marine use
  • Includes a 3-year warranty for peace of mind
  • Proprietary DMA-optimized woofers for reduced distortion and stellar bass
  • Precisely tuned silk dome tweeters for balanced off-axis sound
  • Advanced multi-order, true two-way crossover networks for optimal performance
  • Efficient operation with compatible amplifiers for clear audio at all volume levels
  • Designed for long-term marine duty with corrosion-resistant materials
  • Complete with two coaxial tower enclosures, logo caps, silicone adhesive, and wiring accessories

Details

truck_freight:
No
oversized:
No
owners_manual_url:
https://productimageserver.com/literature/ownersManual/106169OM.pdf

Customer Reviews
