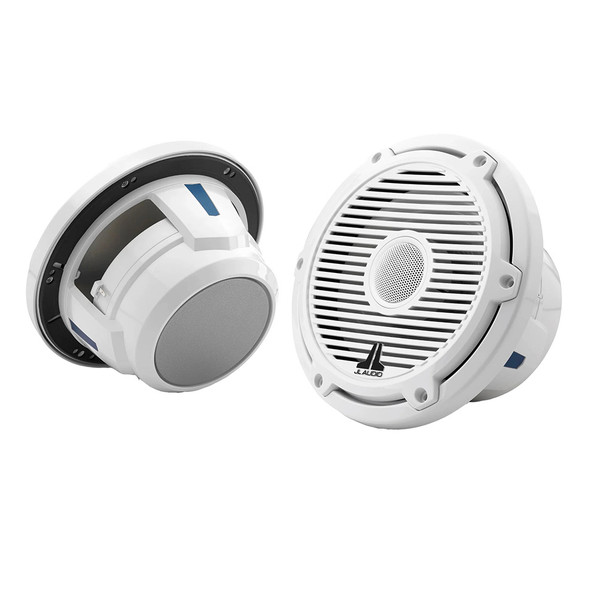

JL Audio M6 Series 7.7-Inch Marine Coaxial Speakers with Gloss White Classic Grille - Model M6-770X-C-3GW

M6 Series 7.7 Marine Coaxial Speakers with Gloss White Classic Grille - M6-770X-C-3GW

MAXIMUM PERFORMANCE

Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.

Features

• Superior output and detail at all listening levels


• Grille and trim ring are easily removable for painting


• Exceeds international standards for salt fog and uv exposure


• 3-Year Warranty

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Matching Silk Dome Tweeters

Precisely tuned tweeters, uniquely sized for each woofers diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.

Advanced Filter Networks

Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.

Powerfully Efficient

M6 marine speakers are designed to benefit from operation with quality amplification.

Real Marine Duty

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

In The Box

• Two marine coaxial loudspeakers


• Two grilles


• Twelve stainless steel mounting screws


• Twelve stainless steel screws washers


• Mounting template

Specifications

• Size: 7.7


• Color: White Classic


• Physical Dimensions (Diameter): 7.70


• Physical Dimensions (Depth): 4.35


• Speaker Type: Coaxial


• Continuous Power Handling (RMS): 100w


• Sensitivity (SPL @ 1w/1m): 91.0 dB


• Frequency Response (+/- 3 dB): 45 Hz - 25 Hz


• Nominal Impedance: 4 Ohm


• Recommended Amplifier Power (RMS): 40-200 w/channel


• LED Lighting: No


• Cone Material: Injection-molded, mica-filled polypropylene


• Tweeter Type: Silk Dome


• Tweeter Size: 1


• Warranty: 3-Year

Connections

• Speaker Connections: Spade Connectors

Mounting Dimensions

• Mounting Depth Clearance: 3.32


• Frontal Grille Protrusion: 1.03


• Mounting Hole: 6.25


• Bolt Hole Circle: 6.92

The JL Audio M6 Series 7.7-inch marine coaxial speakers are engineered for exceptional performance in demanding marine environments. Featuring a long-excursion woofer paired with a suspended silk dome tweeter, these speakers deliver outstanding frequency response and linear sound quality at all volume levels. Their proprietary DMA-optimized woofers utilize advanced motor, suspension, and cone modeling to reduce distortion, enhance transient response, and produce rich bass notes. The precisely tuned silk dome tweeters are designed to provide sparkling detail and a wide off-axis response, ensuring balanced sound coverage throughout your boat.
The M6 speakers include advanced multi-order, true two-way crossover networks inside each chassis, which optimize audio clarity and protect the delicate tweeters from damage. They are built to operate efficiently with quality amplifiers, making them suitable for various power setups. Constructed for real marine duty, these speakers withstand salt fog, UV exposure, and harsh weather conditions, delivering reliable performance season after season.
Installation is straightforward with removable grilles and trim rings, allowing for easy customization and painting to match your boat’s aesthetic. Each package includes two coaxial speakers, mounting hardware, and a mounting template for precise setup. With a durable injection-molded, mica-filled polypropylene cone and a 1-inch silk dome tweeter, the JL Audio M6 speakers offer clear, dynamic sound with excellent off-axis response. Backed by a 3-year warranty, these speakers are an ideal choice for boaters seeking high-quality audio performance in a rugged marine environment.

Features:

• Long-excursion woofer with DMA-optimized design for reduced distortion and powerful bass

• Silk dome tweeters tuned for sparkling detail and wide off-axis response

• Multi-order, true two-way crossover networks for balanced sound and tweeter protection

• Salt fog and UV resistant construction suitable for marine environments

• Removable grille and trim ring for easy customization and painting

• Includes mounting hardware and template for straightforward installation

• Power handling of up to 100 watts RMS and recommended amplifier power of 40-200 watts

• Durable injection-molded polypropylene cone with UV-resistant finish

• Built to withstand long-term exposure to harsh marine conditions
