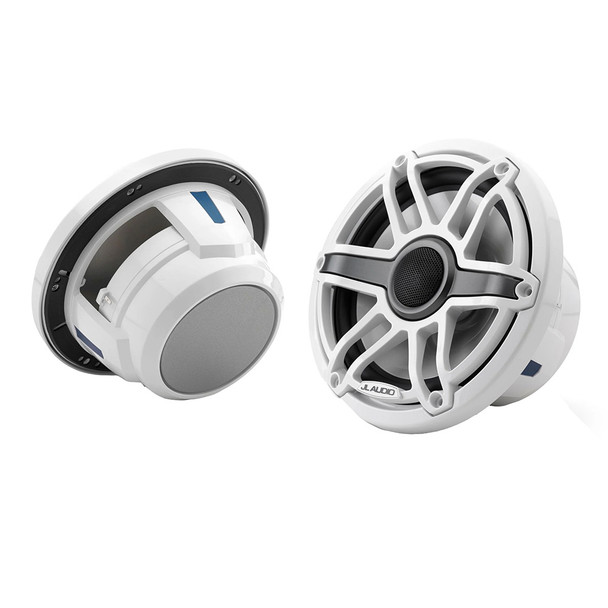

JL Audio M6 Series 7.7-inch Marine Coaxial Speakers with White Sport Grille - M6-770X-S-GwGw

M6 Series 7.7 Marine Coaxial Speakers with Gloss White Sport Grille

MAXIMUM PERFORMANCE

Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.

Features

• Superior output and detail at all listening levels


• Grille and trim ring are easily removable for painting


• Exceeds international standards for salt fog and uv exposure


• 3-Year Warranty

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.

Matching Silk Dome Tweeters

Precisely tuned tweeters, uniquely sized for each woofers diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.

Advanced Filter Networks

Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.

Powerfully Efficient

M6 marine speakers are designed to benefit from operation with quality amplification.

Real Marine Duty

For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

In The Box

• Two marine coaxial loudspeakers


• Two grilles


• Twelve stainless steel mounting screws


• Twelve stainless steel screws washers


• Mounting template

Specifications

• Size: 7.7


• Color: White Sport


• Physical Dimensions (Diameter): 7.70


• Physical Dimensions (Depth): 4.4


• Speaker Type: Coaxial


• Continuous Power Handling (RMS): 100w


• Sensitivity (SPL @ 1w/1m): 91.0 dB


• Frequency Response (+/- 3 dB): 45 Hz - 25 Hz


• Nominal Impedance: 4 Ohm


• Recommended Amplifier Power (RMS): 40-200 w/channel


• LED Lighting: No


• Cone Material: Injection-molded, mica-filled polypropylene


• Tweeter Type: Silk Dome


• Tweeter Size: 1


• Warranty: 3-Year

Connections

• Speaker Connections: Spade Connectors

Mounting Dimensions

• Mounting Depth Clearance: 3.32


• Frontal Grille Protrusion: 1.08


• Mounting Hole: 6.25


• Bolt Hole Circle: 6.92

The JL Audio M6 Series 7.7-inch marine coaxial speakers deliver exceptional audio performance tailored for demanding marine environments. Built with a long-excursion woofer and a suspended silk dome tweeter, these speakers provide unmatched frequency response and linear sound quality across all listening levels. Designed for durability, they exceed international standards for salt fog and UV exposure, ensuring long-term operation in harsh marine conditions. The removable grille and trim ring allow easy customization, including painting to match your vessel's aesthetics. Featuring advanced DMA-optimized woofers with proprietary motor, suspension, and cone modeling, these speakers offer reduced distortion, improved transient response, and deep, powerful bass. The precisely tuned silk dome tweeters produce sparkling detail and maintain excellent off-axis response, ensuring balanced sound coverage throughout your boat. Each speaker incorporates a multi-order, true two-way crossover and an electronic tweeter protection circuit to enhance longevity and performance, especially when paired with quality amplification. Designed for marine duty, the JL Audio M6 speakers are built to withstand saltwater and UV exposure, providing years of reliable service. The package includes two coaxial speakers, grilles, stainless steel mounting screws, washers, and a mounting template for straightforward installation. With a sensitivity of 91 dB and a power handling capacity of 100 watts RMS, these speakers are ideal for a variety of marine audio systems, supporting amplifier power ranges from 40 to 200 watts per channel. The 7.7-inch diameter and shallow mounting depth make them versatile for many installation locations on your boat or watercraft. For detailed installation guidance, refer to the included owner's manual linked here: Owner's Manual. Experience premium sound quality and durability with JL Audio’s M6 Series marine coaxial speakers, designed to enhance your marine audio experience with clarity, power, and reliability.

Features:

• Superior output and detailed sound at all listening levels

• Removable grille and trim ring for custom painting

• Exceeds salt fog and UV exposure standards for marine durability

• DMA-optimized woofers for reduced distortion and stellar bass

• Matching silk dome tweeters for sparkling detail and off-axis response

• Advanced multi-order crossover networks for balanced sound

• Electronic tweeter protection circuit to prevent failure

• Power handling capacity of 100 watts RMS with recommended amplifier power of 40-200 watts

• Constructed for long-term marine duty with corrosion-resistant components
