Description

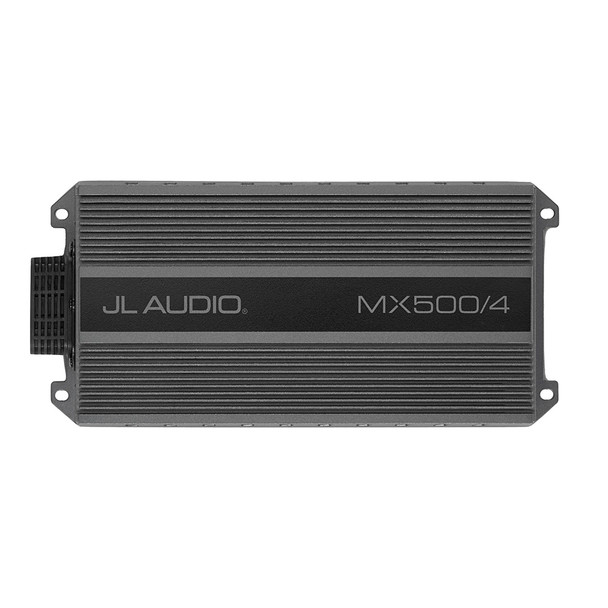

MX Series 500w 4 Channel Full-Range Amplifier - MX500/4
125 W x 4 @ 2 / 70 W x 4 @ 4 - 14.4V
Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATVs, or other utility vehicles.
Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
The JL Audio MX Series MX500/4 is a versatile 4-channel full-range amplifier designed specifically for powersports vehicles such as motorcycles, ATVs, and utility vehicles. Its compact cast aluminum chassis offers excellent corrosion resistance and features an IPX7 water-resistance rating, ensuring reliable operation in harsh environments. This amplifier delivers clean, powerful sound with 125 watts per channel at 2 ohms or 70 watts per channel at 4 ohms, providing ample power for a high-quality audio experience. Fully bridgeable, the MX500/4 can be configured as a 3-channel amplifier or a 2-channel unit capable of producing 250 watts per channel into 4 ohms, making it adaptable to various sound system setups. It incorporates independent front and rear crossovers with selectable full-range, high-pass, or low-pass filters, allowing precise sound tailoring. The dual-range input section accepts a wide voltage range from line-level to speaker-level signals, simplifying integration with existing audio sources. Built to withstand demanding conditions, this amplifier features a rugged powder-coated finish, gasketed cover for the controls, and stainless steel hardware for enhanced durability. With its efficient NexD switching design, the JL Audio MX500/4 delivers high-performance audio without overtaxing your vehicle’s electrical system, making it an ideal choice for enthusiasts seeking reliable, high-quality sound in their powersports vehicles.
Features:
- Watts per channel: 125W x 4 at 2 ohms and 70W x 4 at 4 ohms, providing versatile power options
- Bridgeable design allows configuration as a 3-channel or 2-channel amplifier for flexible installation
- Water-resistant IPX7 rating ensures reliable operation in wet or harsh conditions
- Independent front and rear crossovers with selectable full-range, high-pass, or low-pass filters for tailored sound
- Dual-range input accepts a wide variety of input voltages from line-level to high-power speaker signals
- Compact cast aluminum chassis with corrosion-resistant finish for durability in outdoor applications
- Rugged powder-coated exterior with gasketed controls and stainless steel hardware for enhanced longevity
- High-speed NexD switching technology delivers clean power efficiently without straining electrical systems
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/106212OM.pdf |
