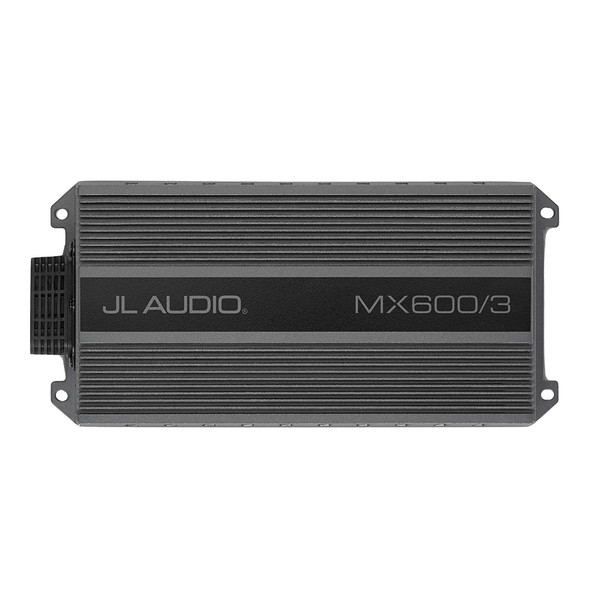

JL Audio MX Series 600W 3-Channel Marine Amplifier - Model MX600/3

MX Series 600w 3 Channel Amplifier - MX600/3

100 W x 2 + 400 W x 1 @ 2 / 75 W x 2 + 250 W x 1 @ 4 - 14.4V

Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATVs, or other utility vehicles.

Generating apotent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3makes a great all-in-one solution for driving acomplete audio system from a single, ultra-compact chassis.

Onboardfilters include a 12 dB / octavehigh-passcrossover on the main channels and a dedicated 24 dB / octave low-passcrossover for the subwoofer channel.Other features includea bass boost EQ, variable infrasonic filter and subwoofer output polarity switch.Adual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

The JL Audio MX Series MX600/3 is a high-performance marine amplifier designed specifically for powersports applications, such as motorcycles, ATVs, and utility vehicles. This compact, rugged amplifier delivers a total of 75 watts per channel into 4 ohms and 150 watts per channel into 2 ohms on the main channels, with a dedicated 400-watt subwoofer channel to provide powerful bass. Its high-speed NexD switching technology ensures clean, efficient power delivery without overloading vehicle charging systems, making it an ideal all-in-one solution for comprehensive audio systems in demanding environments. Constructed from corrosion-resistant cast aluminum with an IPX7 water-resistance rating, the MX600/3 is built to withstand harsh outdoor conditions and exposure to water, ensuring longevity and reliable performance in marine and off-road settings. The amplifier's compact size allows easy installation in tight spaces while maintaining excellent audio output quality. The onboard features include a 12 dB/octave high-pass crossover on the main channels and a 24 dB/octave low-pass crossover for the subwoofer, providing precise sound control and customization options. Additional features such as a bass boost EQ, variable infrasonic filter, and a subwoofer output polarity switch enable users to tailor the sound to their preferences. The dual-range input stage accepts a wide spectrum of input voltage levels, from line-level signals to high-power speaker-level inputs, offering versatility for various audio source configurations. The rugged powder-coated finish, gasketed control cover, and stainless steel hardware contribute to the amplifier's durability and resistance to the elements. Whether you're upgrading your powersports vehicle's audio system or seeking a reliable, compact amplifier for outdoor adventures, the JL Audio MX600/3 combines power, durability, and advanced features in a sleek, weather-resistant package.

Features:

• Power Output: 75W x 2 into 4 ohms, 150W x 2 into 2 ohms, and 400W for subwoofer

• High-Speed NexD Switching Design for efficient power delivery

• Water-Resistant: IPX7 rating with corrosion-resistant cast aluminum housing

• Compact, lightweight chassis for easy installation in tight spaces

• Onboard Filters: 12 dB/octave high-pass and 24 dB/octave low-pass crossovers

• Bass Boost EQ for enhanced low-frequency response

• Variable Infrasonic Filter to protect subwoofers and optimize sound

• Subwoofer Output Polarity Switch for phase adjustments

• Wide Range Input Compatibility from line-level to speaker-level signals

• Rugged construction with powder-coated finish and stainless steel hardware
