Description

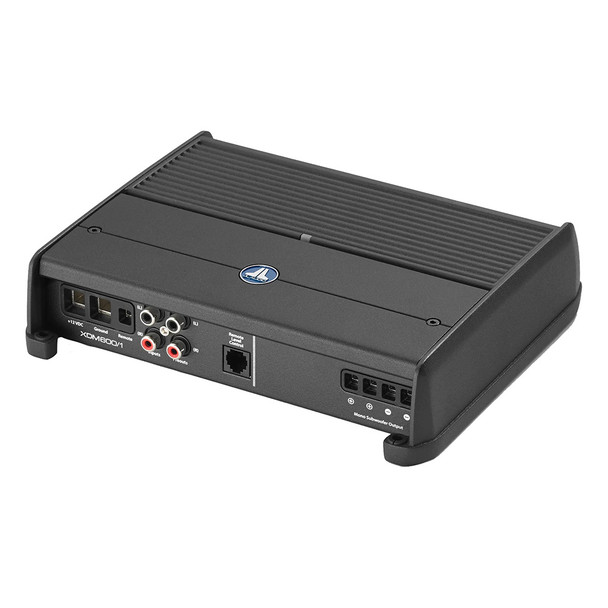

XDM 600w Monoblock Amplifier - XDM600/1
600 W x 1 @ 2 / 400 W x 1 @ 4 - 14.4V
This potent monoblock amplifier employs our high-speed NexD switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Dont let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2-ohm load (14.4V, 1% THD).
Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately),the amplifiers level can beadjusteddirectly from the drivers seat or captains chair.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
The JL Audio XDM 600W Monoblock Amplifier (XDM600/1) delivers powerful, efficient performance for car and boat audio systems. With a robust output of 600 watts RMS into a 2-ohm load, this amplifier is engineered to energize high-power subwoofers with clarity and authority. Its compact design employs JL Audio's high-speed NexD switching technology, providing impressive power output while maintaining a small footprint suitable for tight installation spaces.
Constructed with marine-grade materials, the XDM600/1 is designed to withstand harsh environments, making it an excellent choice for marine and automotive applications. The amplifier features an exclusive dual-mode input filter for noise-free operation in both cars and boats. Automatic turn-on capabilities via signal sensing or DC-offset sensing enable seamless integration into existing systems, simplifying installation and operation.
This model is specifically tailored for subwoofer applications, offering a variable slope low-pass filter with continuous cutoff frequency adjustment from 50 to 500 Hz. For remote volume control, an optional water-resistant HD-RLC or MHD-RLC remote level controller (sold separately) can be installed, allowing you to adjust the speaker level directly from the driver's seat or helm.
Finished in a sleek black powder-coat, the amplifier's controls are protected beneath a gasketed, removable top cover for easy access and adjustments. Its durable construction and advanced features ensure reliable performance whether installed in a vehicle or marine vessel, providing consistent, high-quality bass response for your audio system.
Features:
- Power Output: 600 W RMS into 2 ohms for robust subwoofer performance
- High-Speed NexD Switching Design: Ensures maximum efficiency and compact size
- Marine-Grade Materials: Built to withstand harsh environments and exposure to moisture
- Dual-Mode Input Filter: Noise-free operation in car or boat environments
- Automatic Turn-On: Signal sensing or DC-offset detection for easy integration
- Variable Low-Pass Filter: Continuously adjustable from 50 to 500 Hz for precise bass control
- Remote Level Control Compatibility: Optional water-resistant remote controllers for convenient adjustments
- Sleek Black Powder-Coat Finish: Durable, corrosion-resistant exterior
- Removable Gasketed Cover: Protected access to controls for easy adjustments
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/106228OM.pdf |
