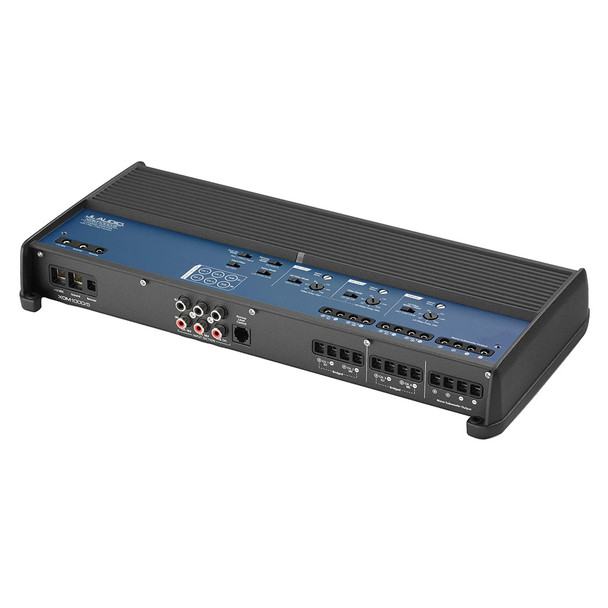

JL Audio XDM Series 1000W 5-Channel Marine and Car Amplifier - XDM1000/5

XDM Series 1000w 5 Channel Amplifier - XDM1000/5

100 W x 4 @ 2 + 600 W x 1 @ 2 - 14.4V

The XDM1000/5 delivers up to 1000 W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent powerhouse, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 ), while also generating a stout 600 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD switching amplifier design.

Suitablefor car or boat installations, the XDM1000/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM1000/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifiers filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 4, and a high-pass filter on Ch. 1 2. An x10 multiplier switch on the Ch. 1 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately),you have the ability toadjust the level of all amplifier channels or just thesubwoofer channel directly from the drivers seat or helm.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

The JL Audio XDM1000/5 is a high-performance 5-channel amplifier designed for both marine and automotive applications, delivering up to 1000 watts of clean power. Its compact design packs substantial power, making it ideal for driving two pairs of high-quality component speakers with 75 W each at 4 ohms, as well as providing a robust 600 W for a dedicated subwoofer. The advanced NexD switching technology enables this impressive output from a small chassis, ensuring efficient performance and minimal heat generation. Crafted with marine-grade materials, the XDM1000/5 features a dual-mode input filter to ensure noise-free operation whether installed in a boat or a vehicle. It also includes automatic turn-on capabilities that detect signal presence or DC offset, simplifying integration with existing audio systems and facilitating easy upgrades. The amplifier's versatile filtering options include a 12 dB/octave high-pass filter for one main channel pair, a configurable high-pass or bandpass filter for the other pair, and a low-pass filter for the subwoofer channel with variable cutoff from 50 to 500 Hz. All filters can be arranged as a true 3-way crossover, allowing precise tuning for optimal sound quality across the frequency spectrum. An optional remote level controller, sold separately, provides convenient adjustment of channel and subwoofer levels directly from the driver’s seat or helm, enhancing user control and system customization. Finished in a sleek black powder coat, all controls are protected beneath a gasketed, removable top cover for durability and easy access for adjustments or troubleshooting. Designed with versatility and performance in mind, the JL Audio XDM1000/5 is perfect for those seeking powerful, clean sound in marine or automotive environments, backed by quality construction and advanced features for an optimal listening experience.

Features:

• Power Output: 100 W x 4 at 2 ohms + 600 W x 1 at 2 ohms for powerful multi-channel audio

• High-Speed NexD Switching: Ensures efficient, compact power delivery with minimal heat

• Marine-Grade Materials: Suitable for boat and car installations with corrosion-resistant construction

• Dual-Mode Input Filter: Noise-free performance with configurable filtering options

• Automatic Turn-On: Signal sensing or DC-offset detection for seamless system integration

• Flexible Crossover Filters: 12 dB/octave high-pass, bandpass, and low-pass filters with variable cutoff frequencies

• True 3-Way Crossover: Configurable filters for precise sound tuning across multiple channels

• Remote Level Control Compatibility: Optional water-resistant remote for easy level adjustments from the helm or driver’s seat

• Sleek Black Powder Coating: Durable finish with protected controls beneath a gasketed cover for longevity and ease of access
