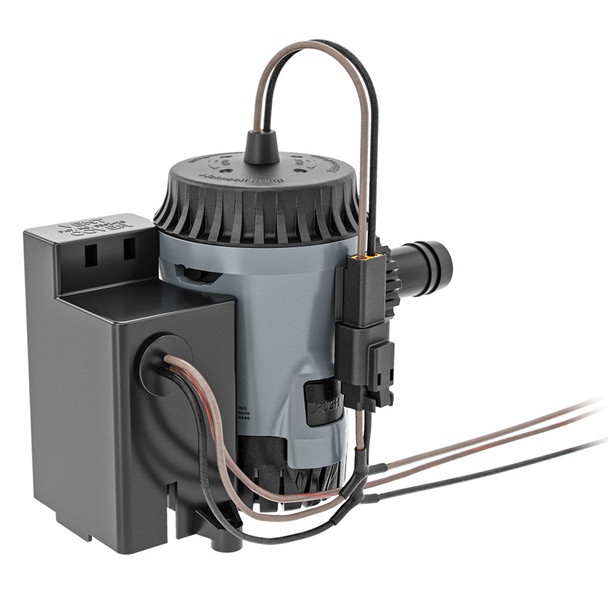

Johnson Pump Aqua Void Electro-Magnetic Combo 500 GPH Bilge Pump - 12V

Aqua Void Electro-Magnetic Combo 500 GPH Bilge Pump - 12V

With its industry-first quick-change motor connection and new reinforced click-in basket, this bilge pump simplifies cleaning and installation, and it's convenient and efficient. Its enhanced motor ensures reliability and performance in any condition. Experience worry-free boating with Aqua Void.

This pump is combined with a non-clogging electro-magnetic float switch for automatic operation. The switch reacts to the level of water present in the bilge and automatically activates and deactivates the pump.

Experience the Industry-First Quick-Change Motor Connection

Johnson Pump's groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.

Take Control of the Boating Experience with Unparalleled Convenience

The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Enjoy Enhanced Efficiency and Higher Flow Rate

Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Trust in Reliable Performance Under Demanding Conditions

Johnson Pump Marine is renowned for its industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.

Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance the boating experience. Get the Aqua Void today!

Features:

• Heightened efficiency with an increased flow rate - high-flow impeller design


• Quick-change motor connection enjoy quick and hassle-free cartridge motor changes or capacity upgrades. Industry-first and only cartridge motor pump with included harness connection requiring no cutting and splicing of wires


• Water-cooled motor for long service intervals


• Compact, all-in-one motor/Impeller unit with stainless steel (316) Shaft


• No tools are needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.


• Easy-to-install dura-port discharge ports to eliminate stress cracking caused by over-tightened hose clamps


• Include both a straight and a 90-degree smooth elbow dura-port as well as a removable check valve


• Meets the international standard, ISO 8849 marine


• Molded T-Slot - Easy Installation with Switches


• This cartridge pump combines an electro-magnetic float switch

Specifications:

• Pump Size: 500 GPH


• Capacity Straight (12V): 600 GPH (38 I/min)


• Voltage: 12V


• Amp: 2.7A


• Fuse: 3.5A


• Hose Connection: 3/4 in.


• Wire Size: 16 GA, TAC


• Weight: 15.9 oz (0.45 kg)


• Body: ABS


• Dura Port: PA66/GF - Nylon


• Shaft: 316 Stainless Steel


• Shaft Seal: Nitrile Rubber


• Motor Cartridge: PC-ABS


• Pump Dimensions (W x H x L): 3.88 x 4.69 x 6.17 inches (99 x 120 x 157 mm)

The Johnson Pump Aqua Void Electro-Magnetic Combo 500 GPH Bilge Pump is designed for reliable and efficient bilge management in marine environments. Featuring an industry-first quick-change motor connection, this pump allows for effortless cartridge motor swaps or capacity upgrades, simplifying maintenance and reducing downtime. Its reinforced click-in basket provides easy installation, cleaning, and inspection, making it ideal for tight bilge spaces and demanding conditions. The pump's integrated electro-magnetic float switch ensures automatic operation, activating or deactivating based on water levels, thereby offering peace of mind during boating adventures. Powered by a high-performance motor with a high-flow impeller, the Aqua Void delivers increased flow rates while maintaining energy efficiency, making it a dependable choice for continuous operation on the water. Constructed with durable materials including a stainless steel shaft and a water-cooled motor, this pump is built to withstand harsh marine environments and long service intervals. Its compact, all-in-one design with easy-to-install dura-port discharge ports eliminates stress cracking caused by over-tightening hose clamps, and the inclusion of both straight and 90-degree elbows along with a removable check valve offers versatile installation options. Meeting international marine standards, the Johnson Pump Aqua Void is an industry leader in reliability and performance, ensuring your vessel remains free of water accumulation and operates smoothly. Whether for routine bilge maintenance or emergency dewatering, this pump provides the robust performance, ease of use, and innovation essential for the modern boater. Invest in the Aqua Void today and experience a new level of convenience and dependability on your boat.

Features:

• High-flow impeller design for increased flow rate and efficiency

• Industry-first quick-change motor connection for hassle-free upgrades and maintenance with no wiring splicing

• Water-cooled motor extends service life and reduces overheating

• Compact, integrated motor and impeller unit with stainless steel (316) shaft for durability

• Tool-free maintenance allows for easy service without complete disassembly

• Dura-port discharge ports with stress-relief design to prevent cracking

• Includes both straight and 90-degree smooth elbows plus a removable check valve for versatile installation

• Meets ISO 8849 marine standards for international reliability and safety

• Molded T-Slot for straightforward installation with switches

• Integrated electro-magnetic float switch for automatic water level control
