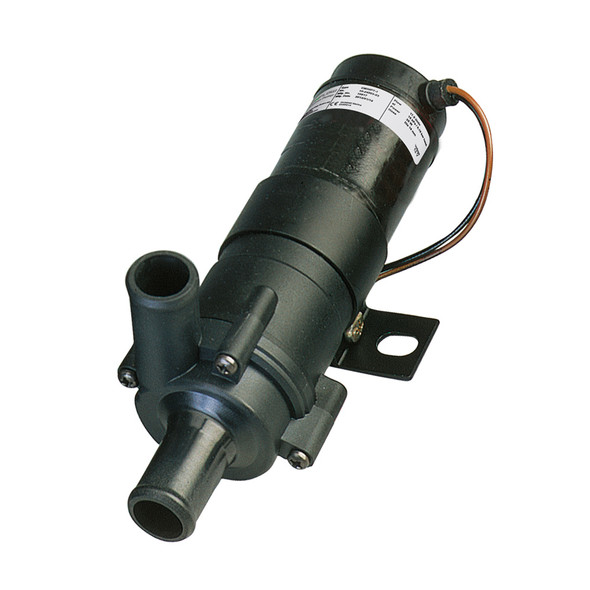

Johnson Pump CM90 Circulation Pump - 17.2 GPM, 12V, 3/4" Outlet

CM90 Circulation Pump - 17.2GPM - 12V - 3/4" Outlet

CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.

Specifications:

•
  System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar




•
  Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water




•
  Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor




•
  Dry running: 30 minutes




•
  Dimensions: 244mm L x 120mm W x 150mm H




•
  Weight: 6.6lbs




•
  Capacity: 17.2 GPM




•
  Ports: 3/4"

The Johnson Pump CM90 circulation pump offers reliable performance with a high flow rate of 17.2 gallons per minute, making it ideal for various fluid circulation applications. Its compact design features a glass-fiber reinforced PPA body, ensuring durability and resistance to corrosion while maintaining a lightweight profile. This magnetic-driven centrifugal pump is suitable for circulating fresh water, ethylene glycol, and salt water mixtures, with a maximum glycol concentration of 60%. The pump's versatile construction allows it to handle system pressures ranging from -0.3 to 3.0 bar, with a maximum of 4.0 bar under stationary conditions. The motor is designed for longevity, providing over 5,000 hours of service at nominal voltage and up to 10,000 start/stops, with an interchangeable motor for easy maintenance. Its dry-running capability of up to 30 minutes ensures operational flexibility in various scenarios. The pump features a 3/4-inch outlet port, making it compatible with standard fittings, and its dimensions make it suitable for installation in confined spaces. The overall weight of approximately 6.6 pounds allows for easy handling and installation in a variety of systems. Whether used in cooling, heating, or fluid transfer applications, the Johnson Pump CM90 is engineered for efficiency and dependability, delivering consistent performance over the long term.

Features:

• High flow rate of 17.2 GPM for efficient circulation

• Compact design with durable glass-fiber reinforced PPA body

• Suitable for fresh water, ethylene glycol, and salt water

• System pressure range from -0.3 to 3.0 bar, with a max of 4.0 bar

• Long motor service life of over 5,000 hours at nominal voltage

• Interchangeable motor for easy maintenance

• Dry running capability up to 30 minutes

• 3/4-inch outlet port for standard fittings

• Lightweight at approximately 6.6 pounds

• Corrosion-resistant construction for demanding environments
