Description

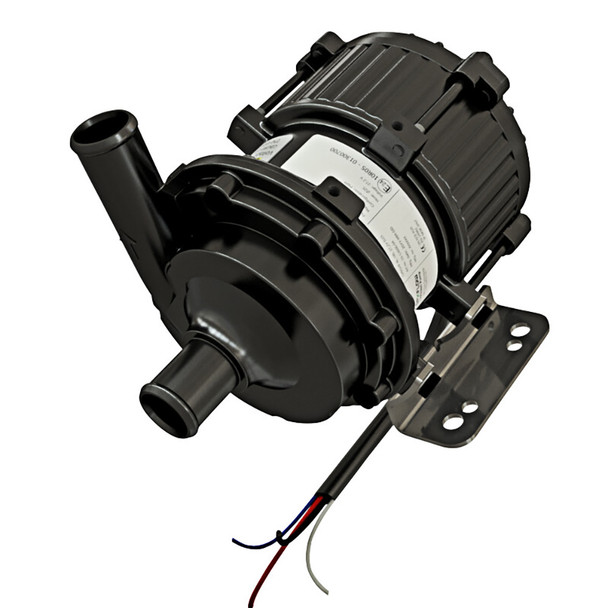

CM95HP Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 25mm
These heavy-duty, magnetically driven, seal-less circulation pumps feature brushless motors designed for continuous use. They are ideal for circulation tasks in heating and cooling systems for buses, trains, boats, and similar applications. They also function well as general-purpose pumps wherever self-priming is not essential.
Features:
- Limited 2-Year Warranty
- Centrifugal pump (must be primed)
- Magnetic drive (no shaft or mechanical seal)
- Brushless motor
- Long service life
- Wide temperature range
- Built-in thermal overload protection
EMC approved according to:
- EN 55014-1:2006 + A1:2009 + A2:2011
- EN 55014-2:1997 + A1:2001
- EN 61000-6-3:2007 + A1:2011; Part 6-3
- UN Regulation 10 (2004/104/EC:2004)
- EN 61000-6-2:2005
Johnson Pump CM Series Pumps are normal-priming centrifugal pumps and should be mounted to ensure they are always flooded or be primed before being switched on.
These pumps should not be used with soiled water containing hard particles.
Specifications:
- Pump Body: Black Anodized Aluminum
- Impeller: PPS GF
- Shaft: Hardened Stainless Steel
- Motor: Permanent magnet brushless motor with ball bearings and electronics included
- Liquid: Water/glycol mixture; max. 60% glycol, fresh water
- Liquid temp.: Min. -40C Max. +100C (Min. -40F Max. 212F)
- System pressure: -0,2 to 2,5 bar at +100C (+212F)
- Port size: 25 mm (1) hose or 38 mm (1) hose
- Dry running: Max. 20 minutes
- Input Power: Max. 315 W
- Mounting: Separate universal bracket for flat surfaces
CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.
The Johnson Pump CM95HP Aluminum Brushless Circulation Pump is engineered for reliable performance in heating and cooling systems across various transportation and industrial applications. Featuring a durable aluminum body and a high-efficiency brushless motor, this pump provides continuous operation for tasks such as fluid circulation in buses, trains, and boats. Its magnetic drive eliminates the need for mechanical seals, reducing maintenance and preventing leaks while ensuring long service life and dependable operation in demanding environments. The pump's design allows for a wide temperature range, handling liquids from -40°F to +212°F, making it versatile for different operational conditions. Built-in thermal overload protection further enhances reliability by safeguarding the motor during overload scenarios. The CM95HP is suitable for use with water and glycol mixtures, and its 25mm (1 inch) port size makes it compatible with standard hoses, enabling straightforward installation and integration into existing systems. It is important to note that this pump requires priming before operation and should be mounted to ensure it remains flooded for optimal performance. It is not intended for handling soiled water containing hard particles or corrosive fluids like gasoline or solvents, which can reduce its lifespan. The pump comes with a universal mounting bracket for easy installation on flat surfaces and is designed for transient dry running of up to 20 minutes, providing flexibility during maintenance or system startup. Compliant with multiple EMC standards, the Johnson Pump CM95HP ensures electromagnetic compatibility for safe operation in various environments. Whether used as a general-purpose circulation pump or in specialized heating and cooling systems, the CM95HP offers a robust and efficient solution for demanding fluid management needs.
Features:
- Limited 2-year warranty for peace of mind
- Centrifugal pump that must be primed prior to operation
- Magnetic drive with no shaft or mechanical seal for reduced maintenance
- Brushless motor designed for long-lasting performance
- Constructed with durable aluminum and stainless steel components
- Operates efficiently across a broad temperature range from -40°F to +212°F
- Built-in thermal overload protection safeguards motor during overloads
- Designed for use with water and glycol mixtures up to 60% glycol content
- Compact 25mm (1 inch) port size suitable for standard hoses
- Universal mounting bracket for easy installation on flat surfaces
- Suitable for continuous operation with transient dry running up to 20 minutes
