Description

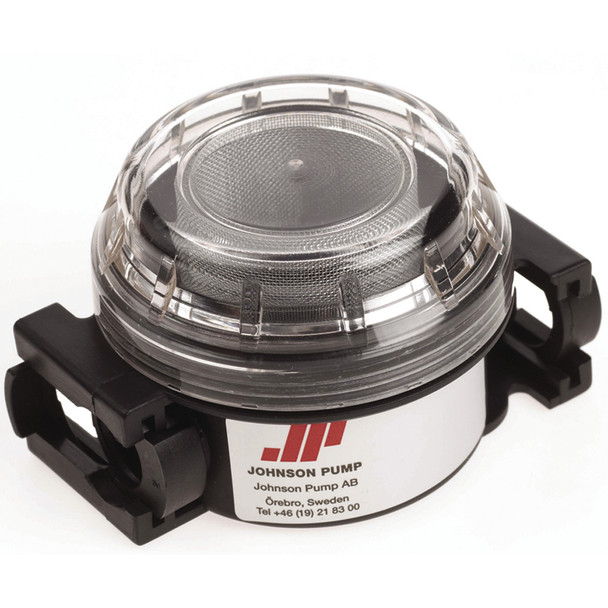

PUMProtector Strainer
The PUMProtector inlet and universal strainers feature transparent covers for simple inspection, a wide variety of KlickTite port connectors for simple installation and removal, and high quality materials for simple maintenance. The connectors make it possible to remove the entire unit for thorough cleaning wherever it's most convenient.
Materials
Strainer - Polyamide 66, black
Cover - Acrylic, clear, 01-36012 P02
Screen - Stainless steel, 40 mesh
O-rings - Silicone and EPDM
Diameter 80 mm / 3.15"
Height 60 mm / 2.35"
Weight 0.15 kg / 0.33 lbs
Mesh size 40
Max Liquid Temp. - +50C - +120F
Max Temp. for Drinking Water - +30C - +85F
KlickTite Connector - 2 x 1/2" hose / 3/8" NPT, 2 x 3/4" hose / 1/2" NPT
The Johnson Pump Universal Strainer, part number 09-24652-02-CN, is designed for efficient filtration and easy maintenance in various fluid handling applications. Featuring a transparent acrylic cover, it allows for quick visual inspection of the stainless steel 40 mesh screen to ensure optimal operation. The inclusion of multiple KlickTite port connectors simplifies installation and removal, making thorough cleaning straightforward without disassembling the entire unit. This design enables maintenance at the most convenient location, reducing downtime and enhancing system reliability.
Constructed from durable materials, the strainers are made with a polyamide 66 black body, acrylic cover, stainless steel screen, and silicone and EPDM O-rings for reliable sealing. The device measures approximately 3.15 inches in diameter and 2.35 inches in height, with a weight of roughly 0.33 pounds, making it suitable for compact spaces. The mesh size of 40 ensures effective filtering of particulates while allowing fluid flow. The strainer is rated for maximum liquid temperatures up to 120°F, with a recommended limit of 85°F for drinking water applications, ensuring safe and effective operation across various conditions.
The Johnson Pump Universal Strainer is equipped with two KlickTite connectors, available in 1/2" hose or 3/8" NPT and 3/4" hose or 1/2" NPT sizes, providing versatile connection options. These features make it suitable for a wide range of fluid systems, from industrial to residential. Its robust construction and user-friendly design help minimize maintenance time and maximize system uptime, making it an essential component for reliable fluid management systems.
Features:
- Transparent acrylic cover for easy inspection
- Stainless steel 40 mesh screen for effective filtration
- KlickTite port connectors for simple installation and removal
- Durable polyamide and acrylic materials for longevity
- Compatible with various hose and NPT connection sizes
- Rated for maximum liquid temperatures up to 120°F
- Compact design suitable for tight installation spaces
