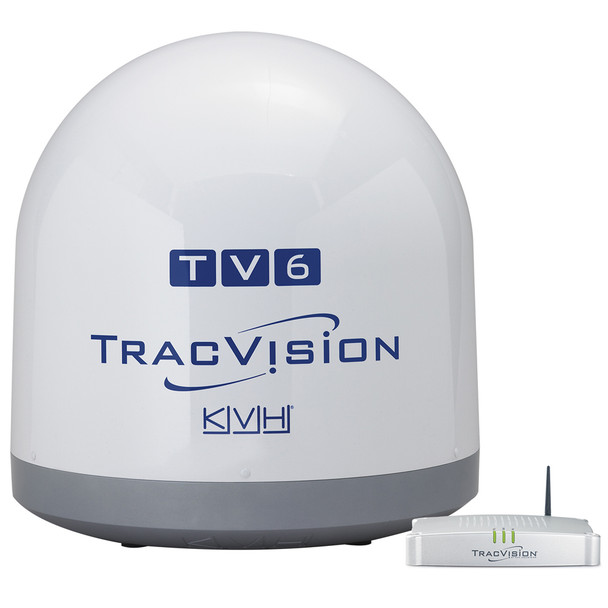

TracVision TV6
Enjoy Your Favorite Television Programming - Everywhere You Cruise
Perfectly suited for short or long voyages, the TV6 provides commercial-grade performance and an extended coverage area. The 60 cm (24-inch) antenna features easy single-cable installation. DVB-S2 compatible; supports DIRECTV U.S. and Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide; HDTV compatible (Ku-band services only).
Advanced Technology from the Leader in Marine Satellite TV
KVH, the leader in marine satellite television for 20 years, has integrated the latest advancements into the TracVision TV6, a versatile system that supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide:
- TracVision TV-Hub, a sleek IP-enabled belowdecks unit with easy user interface that provides system information from any Wi-Fi mobile device or computer
- Exclusive RingFire antenna technology for stronger signals, wider geographic coverage, and better reception
- Advanced inertial-based stabilized search for fast satellite acquisition
- High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas
Highlights
- Ultra high-efficiency, 60cm (24") diameter antenna features proprietary RingFire technology for stronger signals, wider geographic coverage, and better reception
- Supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide
- Supports multiple receiver installations
- Linear Universal Quad LNB configuration offers built-in GPS and autoskew
- Tri-Americas LNB option for seamless TV throughout the Americas
- Sleek IP-enabled TracVision TV-Hub delivers easy setup and operation, and easy user interface for system information from any smartphone, tablet, smart TV, or computer
- HDTV compatible (Ku-band services only)
- Integrated Single Wire Multiswitch (SWM-8) built into belowdecks TV-Hub supports up to 8 DIRECTV receivers
- Single coaxial cable for power, data, and video enables easy installations and retrofits
- DVB-S2 compatible
- Advanced inertial-based stabilized search for fast satellite acquisition
- High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas
- Built-in worldwide satellite library
- IP AutoSwitch option for multiple receiver installations - for simple auto-switching on Dish Pro and DiSEqC-compatible services
- World-class warranty coverage and support
Exclusive Technology
TracVision TV-Hub
The innovative TracVision TV-Hub integrates the advanced functionality of the TV-series system into one streamlined unit:
- IP-enabled antenna control unit with Ethernet connection and built-in Wi-Fi interface allows access to system information from any Wi-Fi device
- Automatic satellite switching makes it easy to access all programming and local channels wherever you travel, and with whatever service you use
- Built-in SWM-compatible technology supports DIRECTV programming
- Built-in DISH Pro output supports DISH Network and Bell TV service
- Built-in DiSEqC protocol supports linear TV services around the world
- Two output ports provide the flexibility to use legacy receivers and expand SWM capability
- Status indicators quickly convey information about antenna function and power
- 10-30 VDC input provides power to the TV-Hub, which in turn provides power to the antenna
- NMEA 0183/2000 input for heading and GPS enable fastest satellite acquisition
The KVH TracVision TV6 is a powerful and versatile marine satellite television system designed to deliver high-quality entertainment anywhere you cruise. Featuring a 24-inch antenna with proprietary RingFire technology, the TV6 ensures stronger signals, wider coverage, and reliable reception even in heavy seas. Its compact design allows for easy single-cable installation, supporting a broad range of services including DIRECTV U.S., DIRECTV Latin America, DISH Network, and Bell TV, making it ideal for both short trips and extended voyages. The system is DVB-S2 compatible and HDTV-ready for Ku-band services, providing crisp images and seamless viewing experiences.
The system includes the innovative TracVision TV-Hub, an IP-enabled control unit that connects via Ethernet or Wi-Fi, allowing users to access system information from smartphones, tablets, or computers. This hub supports automatic satellite switching and features built-in SWM technology, enabling connection to up to eight DIRECTV receivers. Its integrated DISH Pro output and DiSEqC support ensure compatibility with linear and circular TV services worldwide. Additionally, the TV-Hub's built-in GPS and autoskew functionality facilitate quick satellite acquisition across diverse geographic regions.
Designed for ease of use and installation, the KVH TracVision TV6 supports multiple receiver setups with a single coaxial cable that carries power, data, and video. It includes advanced inertial-based stabilized search algorithms for swift satellite acquisition and high-performance tracking that maintains a crystal-clear picture even in rough seas. The system's worldwide satellite library and compatibility with DVB-S2 technology ensure broad coverage and reliable service. Whether you're traveling along coastlines or venturing into remote areas, the KVH TracVision TV6 offers a comprehensive solution for enjoying your favorite TV programming with professional-grade performance and convenience.
Features:
- Ultra high-efficiency, 24-inch diameter antenna with RingFire technology for stronger signals and wider coverage
- Supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and Ku-band services worldwide
- Supports multiple receiver installations with integrated SWM-8 multiswitch
- Linear Universal Quad LNB with built-in GPS and autoskew for optimal signal acquisition
- Tri-Americas LNB option for seamless TV access across North, Central, and South America
- IP-enabled TracVision TV-Hub with Wi-Fi and Ethernet connectivity for easy system management
- Automatic satellite switching for effortless access to programming and local channels
- Supports HDTV (Ku-band services only) for high-quality entertainment
- Built-in worldwide satellite library with DVB-S2 compatibility for broad coverage
- Single coaxial cable for power, data, and video simplifies installation and retrofits
