Description

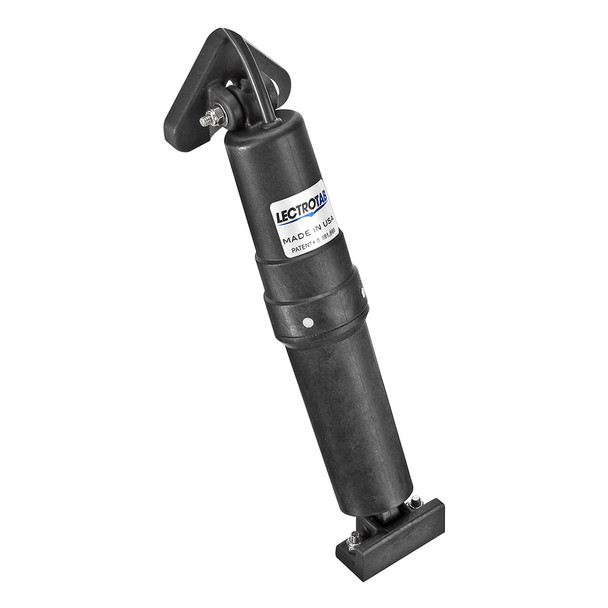

12 V Trim Tab Actuator - 6' Cable
Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing.
No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a transom mounting bracket.
Features:
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Upgrades to most popular hydraulic and electromechanical systems
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- All actuators fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 6' (1.8 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Upper Mounting Bracket - Standard
- Lower Mounting Bracket - Standard
*Sold as an Individual
The Lectrotab 12V Trim Tab Actuator with 6-foot cable is a high-performance, maintenance-free solution designed for precise and quiet operation. Engineered with corrosion-resistant non-metallic housing, this actuator ensures durability and reliable performance in harsh marine environments. Its self-contained design eliminates the need for hydraulic oil, reducing the risk of leaks and simplifying installation, as no components require internal installation within the boat. The actuator features a transom mounting bracket, making it compatible with most vessels seeking a seamless upgrade from hydraulic or electromechanical trim systems. Its robust internal pressure equalization system maintains consistent operation, while the internal brake prevents unwanted tab movement during transit or backing down, ensuring stability and control at all times. Fully load-tested to provide up to 1,000 pounds of force, the actuator offers maximum lift force with minimal noise, enhancing the overall boating experience. The external structure's corrosion-proof material guarantees longevity under sun exposure and submersion, making it an ideal choice for demanding marine conditions. This versatile actuator is suitable for upgrading most popular hydraulic and electromechanical systems, providing an efficient and durable alternative to traditional trim tab solutions. The unit operates on 12V DC power, with a stroke length of 2.25 inches, and includes a 6-foot cable for flexible installation options. The standard upper and lower mounting brackets simplify the setup process, allowing for quick integration into existing boat systems. Designed for durability, ease of use, and maintenance-free operation, the Lectrotab 12V Trim Tab Actuator is a reliable choice for boat owners seeking precise trim control without hydraulic complications.
Features:
- Corrosion-free non-metallic external housing resists deterioration from sun and water exposure
- Internal pressure equalization system ensures consistent operation
- Utilizes internal brake to prevent unwanted movement during transit
- Quiet operation for a smooth boating experience
- Load tested to push up to 1,000 lbs of force for maximum lift
- Designed for easy installation with standard mounting brackets
- Maintenance-free and fully sealed to eliminate hydraulic oil leaks
- Compatible with most hydraulic and electromechanical trim systems
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/96253OM.pdf |
