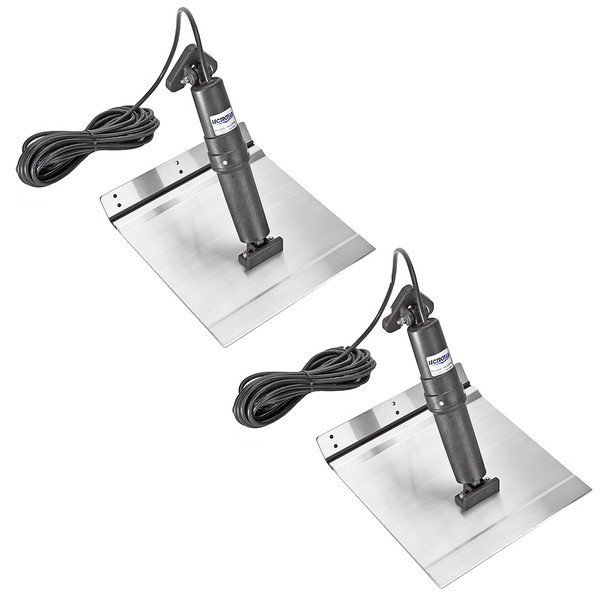

Lectrotab XKA Aluminum Alloy Trim Tab - 9 x 18 for Boats 21 to 30 Feet

XKA Aluminum Alloy Trim Tab - 9 x 18

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• All Tabs sealed with a corrosive resistant epoxy coating


• Equivalent strength to 10 gauge stainless steel


• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)


• Boat Length - 21' to 30' (6.5 to 9 M)


• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Aluminum Alloy tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Aluminum Alloy Trim Tab (Part Number: XKA9X18A) is designed specifically for aluminum-hulled boats, providing an economical and reliable solution for vessels ranging from 21 to 30 feet in length. Crafted from marine-grade 6005-T5 aluminum alloy, this trim tab offers exceptional strength and durability, equivalent to 10-gauge stainless steel, ensuring long-lasting performance even in harsh marine environments. The kit includes two 9 x 18-inch aluminum alloy tabs and two fully load-tested actuators with 23-foot cables, enabling precise and effortless control of your boat’s trim and stability.
All trim tabs are sealed with a corrosion-resistant epoxy coating to prevent deterioration caused by saltwater, and the polypropylene hinge is engineered to withstand over 300,000 cycles without failure. The design features an internal pressure equalization system and a non-metallic external structure that resists corrosion, sun damage, and water exposure, eliminating concerns about deterioration over time. The actuators deliver up to 1,000 pounds of force and operate quietly, offering smooth, accurate positioning with minimal maintenance. An internal brake system prevents unwanted movement during operation or backing down, providing added security and control.
This maintenance-free, non-hydraulic system eliminates hydraulic oil leaks, making installation and upkeep straightforward. The actuator assembly is housed in a sealed, non-metallic casing, with no components requiring installation inside the boat. Compatible with standard or low-profile transom mounting brackets, this system is easy to install and ready to enhance your vessel's handling and efficiency. Please note that control switches are sold separately. For comprehensive installation and operation instructions, refer to the included manual available online. The Lectrotab XKA Aluminum Alloy Trim Tab is an excellent choice for boat owners seeking durable, corrosion-resistant trim tabs that deliver maximum lift, precise control, and long-term reliability in marine conditions.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10-gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend without failure

• Upper ram seal location protected from fouling or barnacle growth

• Utilizes an internal pressure equalization system

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for smooth performance

• Actuators are fully load tested to push 1,000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water
