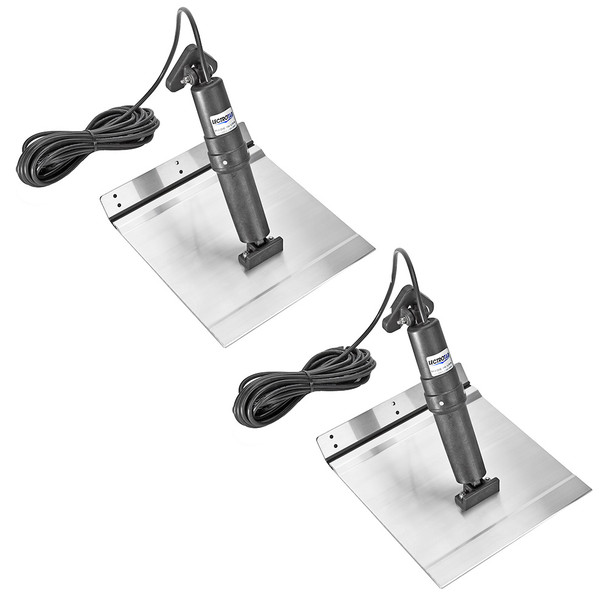

Lectrotab XKA Aluminum Alloy Trim Tab - 9 x 9 inches for Boats 14-19 ft

XKA Aluminum Alloy Trim Tab - 9 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• All Tabs sealed with a corrosive resistant epoxy coating


• Equivalent strength to 10 gauge stainless steel


• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)


• Boat Length - 14' to 19' (4 to 6 M)


• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Aluminum Alloy tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as an Individual

The Lectrotab XKA Aluminum Alloy Trim Tab provides a durable and reliable solution for boats with aluminum hulls, offering an economical choice suitable for a wide range of vessel sizes. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs are sealed with a corrosion-resistant epoxy coating, ensuring longevity in harsh marine environments. The high-strength polypropylene hinge is tested over 300,000 cycles to withstand repeated use without failure, making this an ideal choice for boat owners seeking durability and performance. The design incorporates a non-metallic external structure that resists deterioration from sun exposure and water contact, eliminating concerns about corrosion or rust.

This trim tab kit features a precision-engineered actuator that operates quietly and is maintenance-free, with a fully load-tested capacity of pushing up to 1,000 pounds. The actuator's internal pressure equalization system and sealed housing prevent water ingress and damage, simplifying installation by eliminating the need for components inside the boat. The system includes an internal brake to prevent unwanted movement during operation, ensuring precise control and maximum lift force. The actuator stroke length is 2.25 inches, with a cable length of 23 feet, allowing flexible mounting options. Designed for boats between 14 and 19 feet long, this kit is suitable for a variety of recreational and fishing vessels.

Included in the package are two aluminum alloy trim tabs, two actuators with cables, and an instruction manual to facilitate straightforward installation. The product is sold individually, making it easy to replace or upgrade existing trim tabs. The XKA Aluminum Alloy Trim Tab system offers a maintenance-free, corrosion-free alternative to hydraulic systems, with features that promote quiet operation, reliable performance, and long-term durability for your boat.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend without failure

• Upper ram seal location protected from fouling or barnacles

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for smooth performance

• Actuators are fully load tested to push 1,000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun and water
