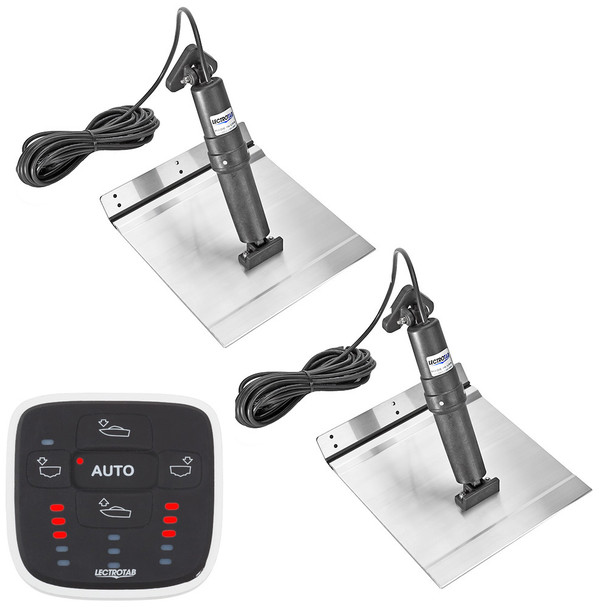

Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 18 inches

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 18

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating


• Equivalent strength to 10 gauge stainless steel


• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)


• Boat Length - 21' to 30' (6.5 to 9 M)


• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)


• Control Mounting Hole Cutout - 2" (50 mm)


• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control


• Two (2) Aluminum Alloy tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is designed for boats ranging from 21 to 30 feet, offering a reliable and maintenance-free solution for optimal boat handling and comfort. Crafted from marine-grade 6005-T5 aluminum alloy, these tabs provide excellent strength and durability while being lightweight and corrosion resistant. The kit includes two aluminum alloy trim tabs sealed with a protective epoxy coating and equipped with a high-strength "no-break" polypropylene hinge tested over 300,000 cycles, ensuring long-lasting performance. The corrosion-resistant exterior and sealed internal components eliminate worries about barnacle growth or fouling, making it suitable for prolonged exposure to harsh marine environments. The integrated non-metallic actuator housing prevents corrosion and simplifies installation, as no components need to be placed inside the boat. The actuators are capable of exerting up to 1000 lbs of force, operate quietly, and include an internal pressure equalization system for consistent performance. The system's design eliminates hydraulic oil leaks, offering a maintenance-free operation compared to traditional hydraulic trim tabs. The included Automatic Leveling Control (ALC) automatically adjusts the trim tabs to maintain a level boat, enhancing ride comfort by correcting side-to-side roll and fore-aft pitch, which also contributes to improved fuel efficiency. The kit's compact control unit is easy to mount and operate, with a simple 2-inch mounting hole and compatible with 12 or 24 V systems. The package contains the control unit, two aluminum alloy trim tabs, two actuators with 23-foot cables, and an instruction manual for straightforward installation and setup. Whether you seek a reliable upgrade or a comprehensive trim tab solution, the Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control delivers durability, ease of use, and enhanced boating performance in a compact, corrosion-resistant package.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating for durability in harsh marine environments

• Constructed from marine-grade 6005-T5 aluminum alloy for strength and lightweight performance

• No-break polypropylene hinge tested over 300,000 cycles for long-term reliability

• Upper ram seal location protected from fouling and barnacle growth

• Internal pressure equalization system ensures smooth operation and prevents damage

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation for a more comfortable boating experience

• Actuators are fully load tested to push up to 1000 lbs of force for maximum lift

• Non-metallic external housing resists corrosion and deterioration from sun and water exposure
