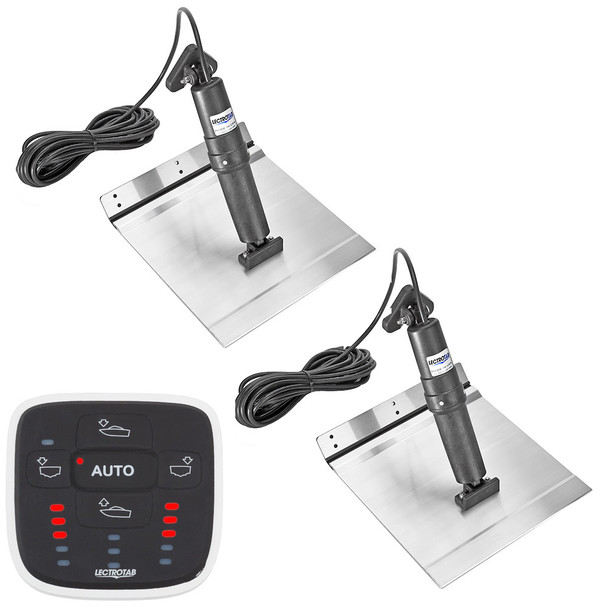

Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control – 9 x 24 inches

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 24

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating


• Equivalent strength to 10 gauge stainless steel


• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)


• Boat Length - 24' to 37' (7 to 11 M)


• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)


• Control Mounting Hole Cutout - 2" (50 mm)


• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control


• Two (2) Aluminum Alloy tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control is designed for aluminum-hulled boats ranging from 24 to 37 feet, offering an economical and durable solution for precise trim management. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs feature a corrosion-resistant epoxy coating that ensures long-term durability in harsh marine environments. The kit includes two aluminum alloy tabs measuring 9 inches by 24 inches, each equipped with a "no break" polypropylene hinge tested over 300,000 cycles, providing exceptional strength and flexibility. The upper ram seal location is protected from fouling and barnacle growth, maintaining reliable operation over time. Each tab is sealed with a corrosion-resistant epoxy coating, making them highly resistant to saltwater and environmental wear. The integrated internal pressure equalization system and internal brake system prevent unwanted movement, while the quiet, maintenance-free DC actuators are capable of exerting up to 1000 pounds of force, ensuring maximum lift and precise positioning. The actuators are housed in a sealed, non-metallic structure that eliminates corrosion concerns and requires no maintenance. The 12-volt actuators have a stroke length of 2.25 inches and come with 23-foot cables for flexible installation. The included ALC-1 Automatic Leveling Control automatically adjusts the trim tabs to keep the boat level, enhancing ride comfort, reducing side-to-side roll, and fore-to-aft pitch, thereby improving fuel economy. The control unit is compact, measuring approximately 3.15 inches by 3.07 inches, and mounts easily with a 2-inch hole cutout. This kit provides all necessary components, including the aluminum tabs, actuators, control unit, and comprehensive instructions, making installation straightforward and efficient. The entire system is designed to operate quietly and reliably, with no hydraulic oil to leak, offering a maintenance-free alternative to traditional hydraulic trim tabs. Whether for upgrading an existing boat or installing new trim management, the Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control provides a robust, corrosion-resistant solution that enhances boat performance and comfort.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating for durability

• Equivalent strength to 10 gauge stainless steel for reliable performance

• "No Break" polypropylene hinge tested over 300,000 cycles for longevity

• Upper ram seal location protected from fouling and barnacle growth

• Utilizes internal pressure equalization system for consistent operation

• Internal brake system prevents unwanted tab movement during operation

• Quiet operation for unobtrusive performance

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure prevents corrosion and deterioration in sun and water
