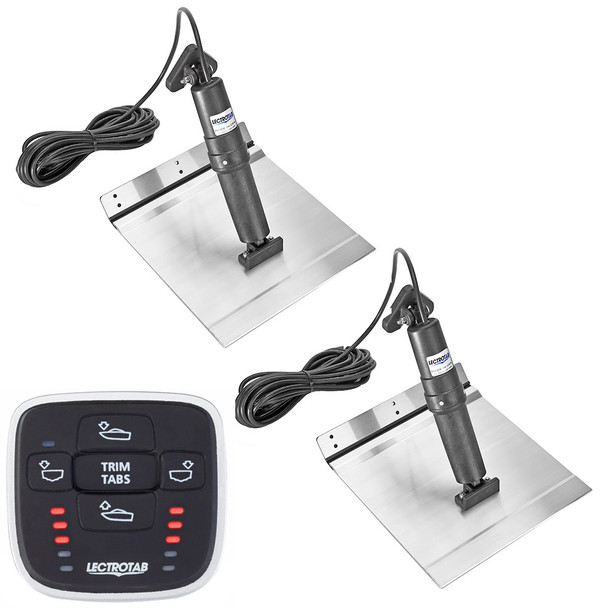

Lectrotab XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control – 9 x 18 inches for Boats 21-30 ft

XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control - 9 x 18

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating


• Equivalent strength to 10 gauge stainless steel


• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)


• Boat Length - 21' to 30' (6.5 to 9 M)


• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)


• Control Mounting Hole Cutout - 2" (50 mm)


• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control


• Two (2) Aluminum Alloy tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control is an ideal solution for boats measuring 21 to 30 feet, offering reliable performance and corrosion resistance. Designed specifically for aluminum hulled boats, this kit features durable marine-grade aluminum alloy tabs with a corrosion-resistant epoxy coating that ensures longevity in harsh environments. The trim tabs are equipped with a no-break polypropylene hinge tested over 300,000 cycles, providing exceptional durability and flexibility. The sealed epoxy coating and internal pressure equalization system protect the components from barnacle growth and fouling, making maintenance minimal and hassle-free. The non-metallic external structure prevents deterioration from sun exposure and water, while the high-force actuators, capable of pushing up to 1,000 lbs, deliver maximum lift with quiet operation, ensuring smooth and responsive boat handling. The compact actuator assembly is housed in a sealed, non-metallic enclosure, eliminating the need for internal components inside the boat and preventing oil leaks typical of hydraulic systems. The kit includes two aluminum alloy trim tabs, two actuators with 23-foot cables, and a manual leveling control featuring LED indicators that dim in darkness and brighten in sunlight for easy visibility. The control unit can operate at 12 or 24 volts, providing versatile compatibility with various marine electrical systems. The trim tabs measure 9 inches by 18 inches, making them suitable for a wide range of vessel sizes. Installation is straightforward, with a 2-inch control mounting hole and a 3.15 by 3.07-inch control panel. The kit's design prioritizes quiet operation, reliability, and ease of use, making it an excellent upgrade for boat owners seeking enhanced maneuverability and stability on the water. For detailed installation instructions, please refer to the included manual available online.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend

• Upper ram seal location protected from fouling and barnacle damage

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement

• Quiet operation with smooth actuation

• Actuators are load tested to push 1,000 lbs of force

• Non-metallic external structure resistant to corrosion and sun damage
