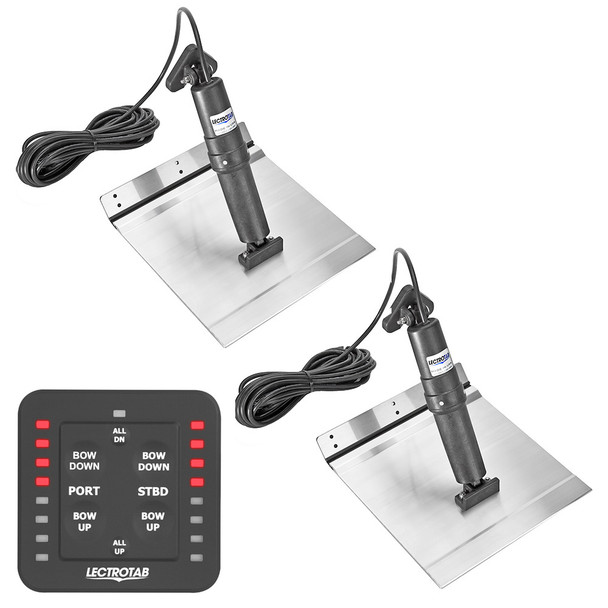

Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control – 9 x 24 Inches

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 24

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating


• Equivalent strength to 10 gauge stainless steel


• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)


• Boat Length - 24' to 37' (7 to 11 M)


• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)


• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)


• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control


• Two (2) Aluminum Alloy tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed for boats with aluminum hulls, providing an economical and reliable solution for vessel stability and performance. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs offer exceptional strength and durability, comparable to 10-gauge stainless steel, ensuring long-lasting performance in harsh marine environments. Each tab features a corrosion-resistant epoxy coating that protects against saltwater and weathering, maintaining its integrity over time. The kit includes two aluminum alloy tabs, each measuring 9 inches by 24 inches, suitable for boats ranging from 24 to 37 feet in length. The design incorporates a no-break polypropylene hinge tested over 300,000 cycles, offering reliable operation without failure even after extensive use. The upper ram seal location is protected from fouling and barnacle growth, contributing to the system’s longevity. The internal pressure equalization system and brake mechanism ensure precise and stable tab positioning, preventing unwanted movement during operation. The actuator assembly is housed in a sealed, non-metallic casing, eliminating the risk of corrosion and eliminating any need for maintenance related to hydraulic oil leaks. Powered by a 12 V DC system, the actuator delivers up to 1000 pounds of force with a stroke length of 2.25 inches, providing maximum lift and control. The control system features a one-touch leveling LED interface, allowing for intuitive and effortless adjustment of the trim tabs from the helm. The included rocker switch, measuring 3 inches by 3 inches, is designed for easy mounting and operation, compatible with 12 or 24 V systems. This comprehensive kit also includes two actuators with 23-foot cables, enabling flexible installation options. The kit is ideal for boat owners seeking a maintenance-free, corrosion-resistant trim tab solution that ensures improved handling, stability, and fuel efficiency. For detailed installation instructions, refer to the included manual available at the provided link.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• No-break polypropylene hinge tested over 300,000 cycles

• Upper ram seal location protected from fouling and barnacles

• Utilizes an internal pressure equalization system

• Internal brake system prevents unwanted tab movement

• Quiet operation for smooth adjustments

• Actuators are load tested to push 1000 lbs of force

• External non-metallic structure resists corrosion and deterioration
