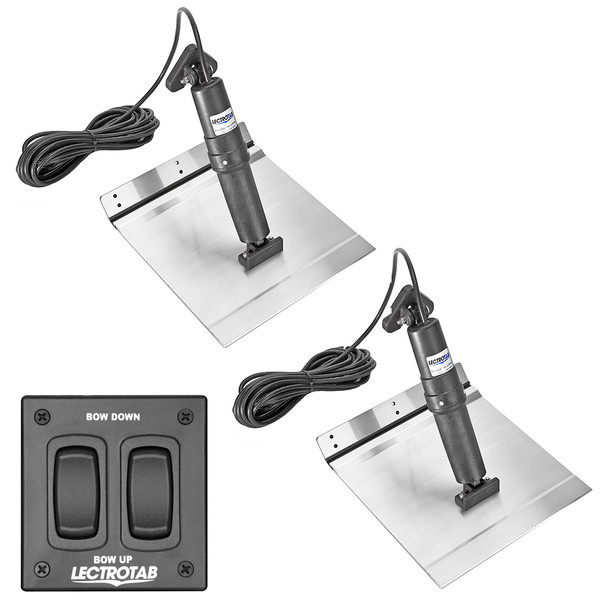

Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 12 inches

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 12

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• All Tabs sealed with a corrosive resistant epoxy coating


• Equivalent strength to 10 gauge stainless steel


• "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)


• Boat Length - 18' to 32' (5.5 to 9.5 M)


• Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)


• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)


• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch


• Two (2) Aluminum Alloy tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Aluminum Alloy Trim Tab Kit is designed for boats ranging from 18 to 32 feet, providing an efficient and durable solution for optimal hull control. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs are sealed with a corrosion-resistant epoxy coating, ensuring longevity in harsh marine environments. The all-metal construction offers an equivalent strength to 10-gauge stainless steel, while the polypropylene hinge, tested over 300,000 cycles at a 90-degree bend, guarantees durability without failure. The upper ram seal location is protected from damage caused by fouling or barnacle growth, maintaining reliable operation over time. The kit features internal pressure equalization and an internal brake system, preventing unintended movement during operation or backing down, which enhances safety and performance. These trim tabs are self-contained with a corrosion-free external structure, eliminating the need for hydraulic oil and reducing maintenance concerns. The precision-engineered actuator operates quietly, delivering a maximum lift force of 1,000 pounds, and is fully load-tested to ensure consistent performance. The included flat rocker switch features improved sealing to prevent water ingress and a recessed design to reduce breakage risk, with an instant stop circuit to prevent actuator over-run. This kit includes two aluminum alloy tabs, two actuators with 23-foot cables, a flat rocker switch, and an instruction manual for straightforward installation. The compact design and robust construction make this kit ideal for enhancing boat stability, maneuverability, and overall performance in various water conditions.

Designed for ease of installation and long-term reliability, the Lectrotab XKA Aluminum Alloy Trim Tab Kit is a cost-effective upgrade for aluminum-hulled boats seeking improved control. Its maintenance-free operation, corrosion resistance, and quiet performance make it a preferred choice among boat owners and professionals. Whether used for cruising, fishing, or watersports, this trim tab kit ensures precise adjustments and dependable operation, contributing to a smoother, safer boating experience.

Features:

• All tabs sealed with a corrosion-resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90-degree bend without failure

• Upper ram seal location protected from fouling or barnacle damage

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation with minimal noise disruption

• Actuators are fully load tested to push 1,000 pounds of force

• Non-metallic external structure resists corrosion and deterioration in sun and water

• Includes a precision-engineered 12 x 12-inch trim tab kit with rocker switch
