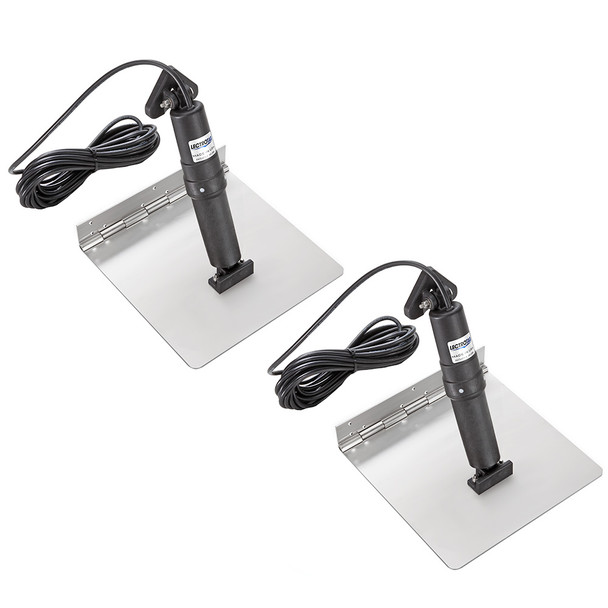

XKA Stainless Steel Trim Tab - 12 x 12
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
*Control switch not included
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
- Boat Length - 18' to 32' (5.5 to 9.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
In the Box:
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as an Individual
The Lectrotab XKA Stainless Steel Trim Tab offers exceptional strength and reliability for boat owners seeking precise control and durability. Crafted from 12 gauge, 304 stainless steel, these 12 x 12-inch trim tabs are designed to withstand harsh marine environments without corrosion or deterioration. The continuous rolled and pinned hinge eliminates the need for welding, providing added strength and a seamless, maintenance-free connection. This robust design ensures long-lasting performance and consistent positioning, making it ideal for a wide range of watercraft from 18 to 32 feet in length.
The integrated actuator features a corrosion-free, non-metallic exterior housing, ensuring durability under sun exposure and submersion. It incorporates internal pressure equalization and an internal brake system to prevent unwanted movement, enhancing safety and control during operation. The actuator is capable of exerting up to 1000 lbs of force, with a 2.25-inch stroke length powered by a 12 V DC supply. Its quiet operation significantly improves user experience, and the self-contained design simplifies installation by eliminating the need for oil or hydraulic components that could leak.
The kit includes two stainless steel trim tabs, two actuators with 23-foot cables, and an instruction manual, providing everything necessary for a straightforward setup. The design accommodates transom mounting brackets, either standard or low profile, allowing flexible installation options. Please note that control switches are sold separately. This high-quality trim tab kit is perfect for boat owners seeking durable, maintenance-free performance with maximum lift and precise control, ensuring optimal boat handling and stability in various water conditions.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when underway or backing down
- Quiet operation for smooth adjustments
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure resists corrosion and deterioration in sun and water exposure
