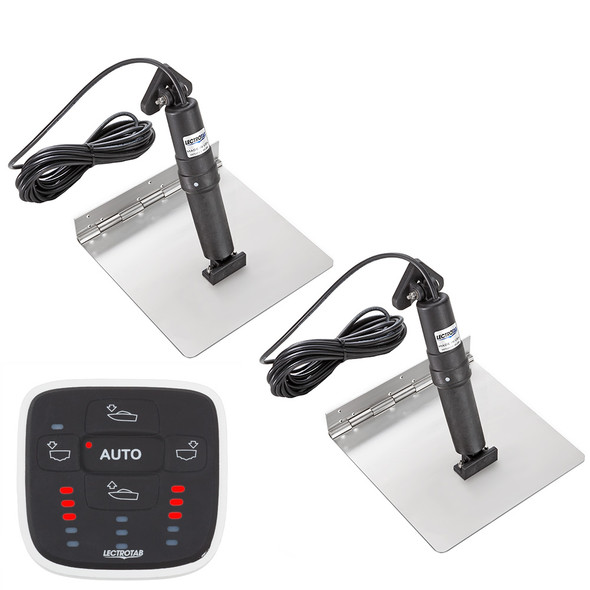

Lectrotab XKA Stainless Steel Trim Tab – 12 x 24 inches for Boats 28 to 48 ft

XKA Stainless Steel Trim Tab - 12 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)


• Boat Length - 28' to 48' (8.5 to 14.5 M)


• Trim Tab Material - 12 gauge, 304 Stainless Steel


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as an Individual

The Lectrotab XKA stainless steel trim tab offers superior strength and durability for boats ranging from 28 to 48 feet. Crafted from 12-gauge 304 stainless steel, this 12 x 24-inch trim tab features a continuous rolled and pinned hinge, which eliminates the need for welding and enhances overall strength. The corrosion-resistant design ensures reliable performance in harsh marine environments, making it ideal for both saltwater and freshwater applications. The trim tab is equipped with a precision-engineered actuator that provides quiet operation, maximum lift force, and accurate positioning, all within a self-contained, maintenance-free system. The actuator housing is made from a non-metallic material, which prevents corrosion and deterioration from sun exposure or water contact. Additionally, the design incorporates a pressure equalization system and an internal brake to prevent unwanted movement during operation or backing down, ensuring smooth and controlled adjustments. This kit includes two stainless steel trim tabs, two actuators with 23-foot cables, and an instruction manual for easy installation. The actuator's 12-volt DC power, combined with a 2.25-inch stroke length and a load capacity of 1,000 pounds, guarantees reliable and efficient performance. The unit is suitable for boats with a length of 28 to 48 feet, and the external structure is designed to withstand harsh marine conditions without deterioration. Note that control switch is sold separately. This trim tab system provides an upgrade over hydraulic models by eliminating oil leaks and reducing maintenance needs, offering a dependable, maintenance-free solution for precise boat trim control.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation ensures smooth adjustments

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and sun deterioration
