Description

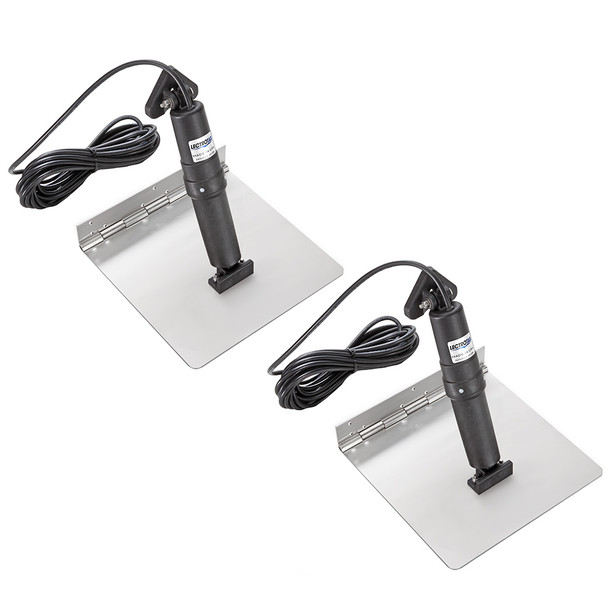

XKA Stainless Steel Trim Tab - 9 x 18
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
*Control switch not included
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
- Boat Length - 21' to 30' (6.5 to 9 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
In the Box:
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as an Individual
The Lectrotab XKA Stainless Steel Trim Tab measures 9 inches by 18 inches, designed for boats ranging from 21 to 30 feet in length. Crafted from 12 gauge 304 stainless steel, this trim tab offers exceptional strength and corrosion resistance, making it suitable for years of reliable use in harsh marine environments. Its continuous rolled and pinned hinge design eliminates the need for welding, enhancing durability and simplifying installation. The trim tab's robust construction ensures maximum lift force and precise positioning, contributing significantly to improved boat control and performance.
The integrated actuator features a non-metallic, permanently sealed housing that prevents corrosion and eliminates oil leaks common in hydraulic systems. Operating on 12V DC power, the actuator provides a stroke length of 2.25 inches and is fully load tested to exert up to 1000 pounds of force. Its internal pressure equalization system and internal brake prevent unwanted movement, ensuring smooth and quiet operation whether underway or backing down. The actuator's external design includes a low-profile mounting bracket suitable for transom installation, with cables extending 23 feet for flexible placement options.
This kit includes two stainless steel trim tabs, two actuators with cables, and an instruction manual for straightforward installation. The design's non-metallic external structure withstands sun exposure and water contact without deterioration, maintaining long-term performance. Please note that control switches are sold separately. For detailed installation and maintenance instructions, refer to the provided manual link. Overall, the Lectrotab XKA stainless steel trim tabs deliver a maintenance-free, corrosion-resistant solution that enhances boat handling, stability, and safety in marine conditions.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when underway or backing down
- Quiet operation for smooth boat control
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure resists corrosion and deterioration from sun and water
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/96031OM.pdf |
