Description

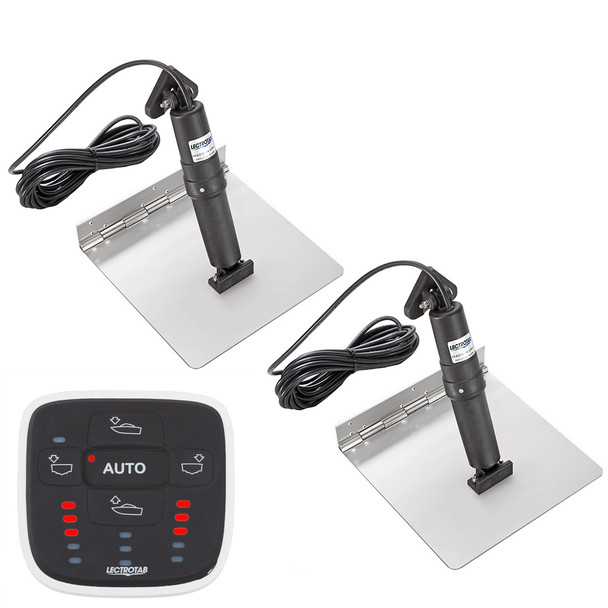

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 12 x 12
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
- Boat Length - 18' to 32' (5.5 to 9.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
- Control Mounting Hole Cutout - 2" (50 mm)
- Control Operating Voltage - 12 or 24 V
In the Box:
- One (1) Automatic Leveling Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
The Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control offers a premium solution for maintaining optimal boat performance and stability. Crafted from durable 12-gauge 304 stainless steel, these trim tabs are designed to provide unmatched strength and corrosion resistance, ensuring reliable operation in harsh marine environments. The continuous rolled and pinned hinge design eliminates the need for welding, enhancing durability and simplifying installation. This assembly, combined with the precision-engineered actuator, delivers quiet, maintenance-free operation with maximum lift force, allowing for effortless adjustments and precise positioning.
The non-metallic external housing of the actuator prevents corrosion and deterioration caused by sun exposure or water, while internal pressure equalization and a brake system prevent unwanted movement during operation or backing down. The actuator's ability to push up to 1000 pounds of force and its sealed housing ensure long-lasting, trouble-free performance. The trim tabs are compatible with boats ranging from 18 to 32 feet, making them suitable for a wide variety of marine vessels. The kit includes two stainless steel trim tabs, two actuators with 23-foot cables, an automatic leveling control system, and an instruction manual for straightforward installation and calibration.
The Automatic Leveling Control (ALC) enhances your boating experience by automatically adjusting the trim tabs to keep the boat level, reducing side-to-side roll and fore-to-aft pitch. This feature not only improves ride comfort but also optimizes fuel economy by maintaining the most efficient boat angle. The control operates on 12 or 24 volts, with a compact size that fits conveniently on the transom with a 2-inch cutout. Designed for ease of use and reliability, this kit provides a comprehensive solution for superior boat handling and comfort in a single package.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when underway or backing down
- Quiet operation ensures minimal noise disturbance
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure resists corrosion and deterioration from sun and water
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/96291OM.pdf |
