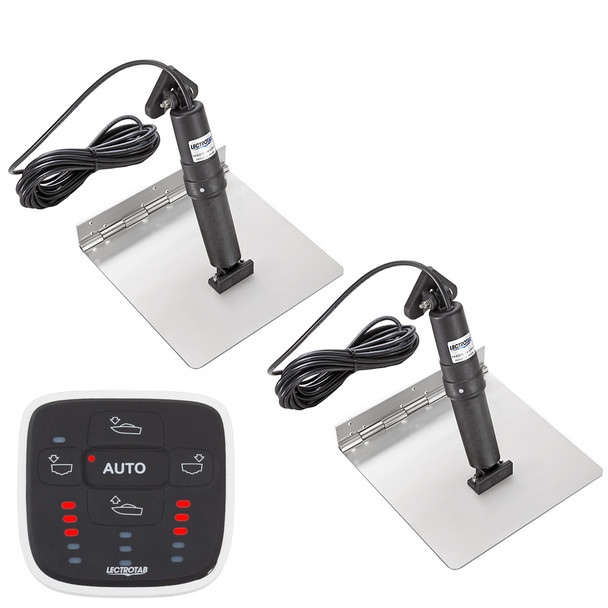

Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control – 12 x 9 inches

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)


• Boat Length - 18' to 29' (5.5 to 8.5 M)


• Trim Tab Material - 12 gauge, 304 Stainless Steel


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)


• Control Mounting Hole Cutout - 2" (50 mm)


• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control


• Two (2) Stainless Steel tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control offers superior strength and durability for marine applications. Crafted from 12-gauge 304 stainless steel, the trim tabs feature a continuous rolled and pinned hinge design that eliminates welding, ensuring a robust and corrosion-resistant structure. This design provides reliable performance in harsh marine environments. The kit includes two stainless steel tabs and a precision-engineered actuator system that operates quietly and is maintenance-free, reducing the need for hydraulic fluids and associated leaks. The actuators are housed in a sealed, non-metallic casing to prevent corrosion and deterioration from sun exposure or water contact, making installation straightforward without needing to install components inside the boat. The system's internal pressure equalization and brake mechanisms ensure stable, precise movements, with actuators capable of exerting up to 1000 lbs of force for maximum lift. The included ALC-1 automatic leveling control maintains a level boat by adjusting trim tabs automatically, also correcting side-to-side roll and fore-aft pitch for a smoother ride and improved fuel efficiency. Designed for boats ranging from 18 to 29 feet, this kit is compatible with 12 or 24-volt systems, featuring a 2.25-inch actuator stroke and a 23-foot cable for flexible installation. The control unit is compact and easy to mount, with dimensions that fit standard cutouts. This comprehensive kit includes the leveling control, two stainless steel trim tabs, two actuators with cables, and an instruction manual, providing everything needed for a reliable, maintenance-free trim tab system that enhances boating performance and comfort.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation with minimal noise during use

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun or water exposure
