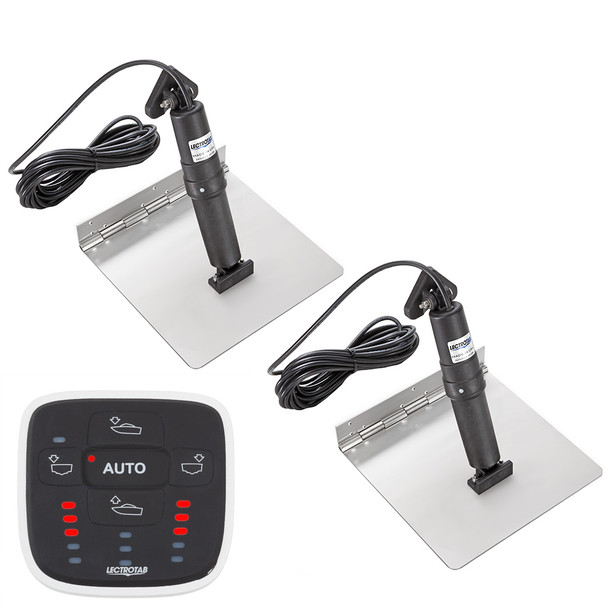

Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control – 9 x 12 inches

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)


• Boat Length - 16' to 25' (5 to 7.5 M)


• Trim Tab Material - 12 gauge, 304 Stainless Steel


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)


• Control Mounting Hole Cutout - 2" (50 mm)


• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control


• Two (2) Stainless Steel tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a durable and reliable solution for boat leveling and performance enhancement. Crafted from 12 gauge 304 stainless steel, these trim tabs deliver exceptional strength and corrosion resistance, making them ideal for marine environments. The continuous rolled and pinned hinge design enhances durability by eliminating weld points, ensuring long-term reliability and smooth operation. This kit includes two stainless steel tabs, two high-capacity actuators, and the advanced ALC-1 automatic leveling control, providing a comprehensive package for easy installation and effective performance.
The non-metallic, sealed actuator housing prevents corrosion and damage from barnacles or fouling, while internal pressure equalization and an internal brake system ensure precise, quiet operation and secure positioning under various conditions. Each actuator is load-tested to push up to 1000 pounds of force, providing maximum lift and control. The system's compact design allows for simple installation without the need for inside-the-hull components, and the external structure is resistant to sun and water deterioration. The ALC-1 control system automatically adjusts the trim tabs to maintain a level boat, compensating for side-to-side roll and fore-aft pitch, which enhances comfort, stability, and fuel economy during your voyage.
Compatible with boats from 16 to 25 feet, this kit supports 12-volt DC operation with a 2.25-inch stroke length. The control unit measures approximately 3.15 inches by 3.07 inches and mounts through a 2-inch cutout, making it adaptable for various transom configurations. The included 23-foot cables provide flexibility for installation, and the entire system is sold as a complete kit, ready to improve your boat's handling and ride quality. For detailed installation instructions, refer to the provided manual available online.
Whether you're upgrading existing trim tabs or installing new ones, the Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control ensures a maintenance-free, corrosion-resistant solution that delivers precise, automatic leveling and superior lift capacity for an enhanced boating experience.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location is protected from damage caused by fouling or barnacles

• Utilizes internal pressure equalization system for reliable operation

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation for a smooth and unobtrusive experience

• Actuators are fully load tested to push 1000 lbs of force for maximum lift capacity

• Non-metallic external structure resists corrosion and deterioration from sun and water
